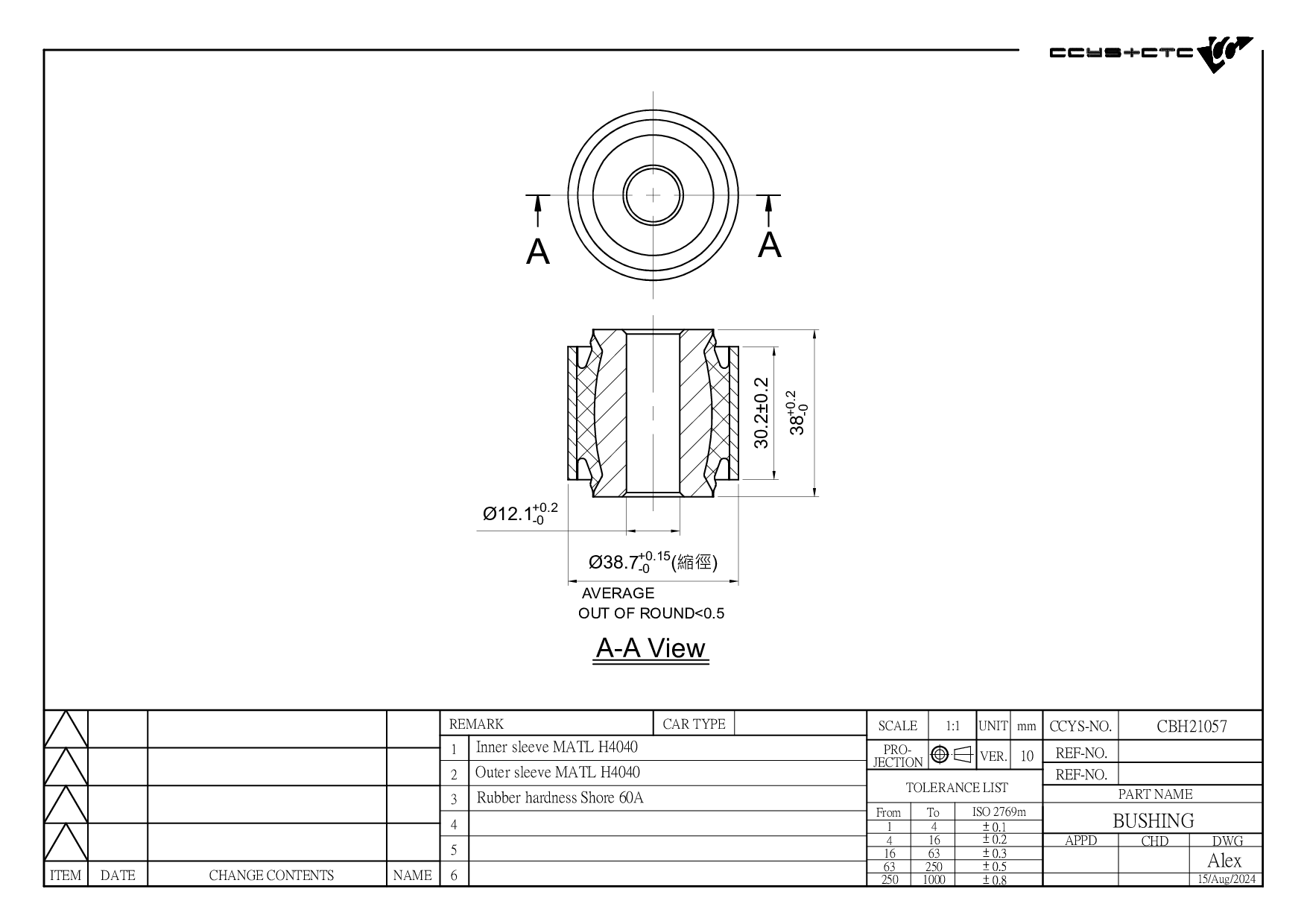

CBH21057
| Designation | Rubber Bushing |
| Position | REAR AXLE LOWER ARM |
| OE No. | 204 350 00 29 / 204 350 27 06 / 204 352 12 05 / 205 350 63 03 / A204 350 00 29 / A204 350 27 06 / A204 352 12 05 / A205 350 63 03 |
| Length | 39 mm |
| Width | 39 mm |
| Height | 38 mm |
| Net Weight | 0.07 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21050 | FRONT LOWER ARM OUTER | 205 333 02 14 A205 333 02 14 |
|
 |
CBH21052 | FRONT LOWER ARM INNER | 205 330 17 05 205 330 18 05 205 333 00 14 205 333 20 05 205 333 23 00 222 330 23 01 222 330 24 01 222 333 02 14 A205 330 17 05 A205 330 18 05 A205 333 00 14 A222 333 02 14 |
|
 |
CBH21056 | FRONT LOWER ARM INNER | 205 333 04 14 A205 333 04 14 |
|
 |
CBH21057 | REAR AXLE LOWER ARM | 204 350 00 29 204 350 27 06 204 352 12 05 205 350 63 03 A204 350 00 29 A204 350 27 06 A204 352 12 05 A205 350 63 03 |
|
 |
CBH21060 | REAR AXLE LOWER ARM INNER | 204 350 05 53 204 350 06 53 205 350 65 03 205 350 66 03 A204 350 05 53 A204 350 06 53 A205 350 65 03 A205 350 66 03 |
|
 |
CBH21061 | REAR AXLE LOWER ARM OUTER | 204 350 05 53 204 350 06 53 205 350 65 03 205 350 66 03 A204 350 05 53 A204 350 06 53 A205 350 65 03 A205 350 66 03 |
|
 |

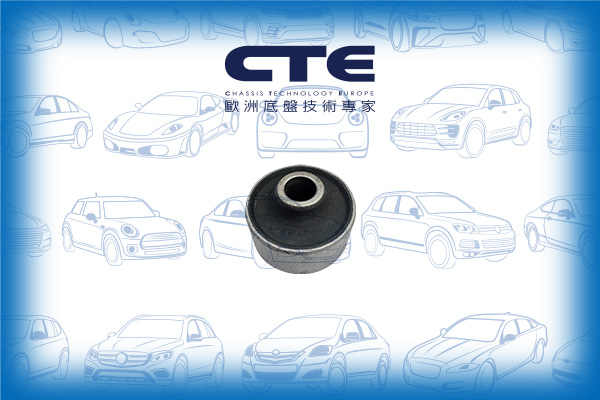

CBH21062 | REAR UPPER ARM | 204 350 15 06 204 350 16 06 205 350 61 03 205 350 62 03 A204 350 15 06 A204 350 16 06 A205 350 61 03 A205 350 62 03 |
|
 |

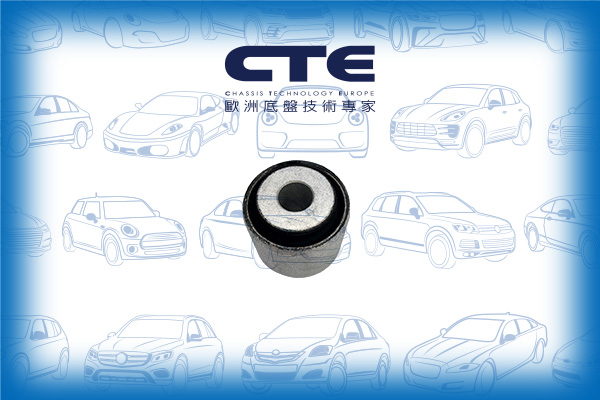

CBH21063 | REAR UPPER ARM | 204 350 15 06 204 350 16 06 205 350 61 03 205 350 62 03 A204 350 15 06 A204 350 16 06 A205 350 61 03 A205 350 62 03 |
|
 |

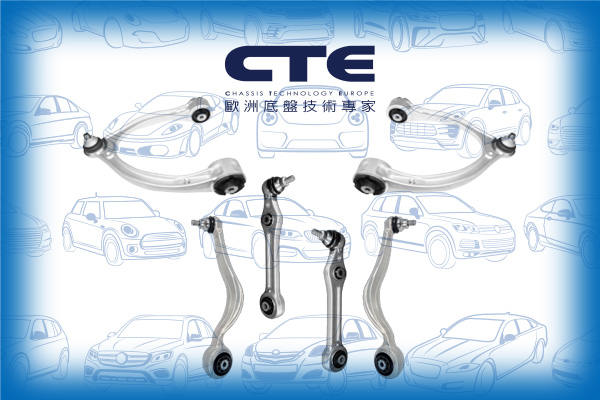

COS21007 | FRONT | ||
 |
CRE21005 | D= M14X1.5 , C= M16X1.5 | 205 460 04 05 A205 460 04 05 |
|
 |
CS-2150L | FRONT UPPER LH | 205 330 55 01 A205 330 55 01 |
|
 |
CS-2150R | FRONT UPPER RH | 205 330 56 01 A205 330 56 01 |
|
 |
CS-2158 | FRONT LOWER LH/RH | 205 330 58 01 A205 330 58 01 |
|
 |
CS-2159 | FRONT LOWER LH/RH | 205 330 45 07 205 330 67 10 A205 330 45 07 A205 330 67 10 |
|
 |
CS-2160L | FRONT LOWER LH | 205 330 17 05 A205 330 17 05 |
|
 |
CS-2160R | FRONT LOWER RH | 205 330 18 05 A205 330 18 05 |
|
 |

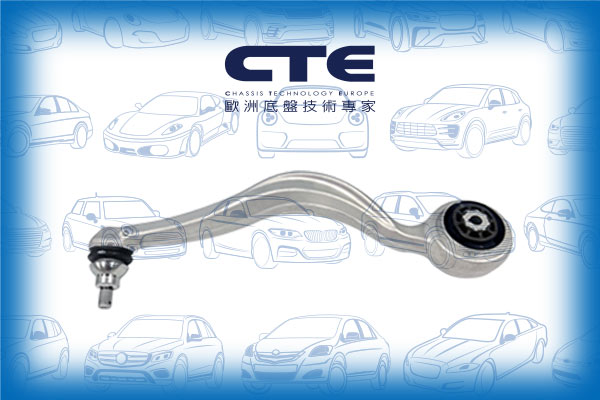

CS-2165L | FRONT LOWER LH | 205 330 19 05 A205 330 19 05 |
|
 |

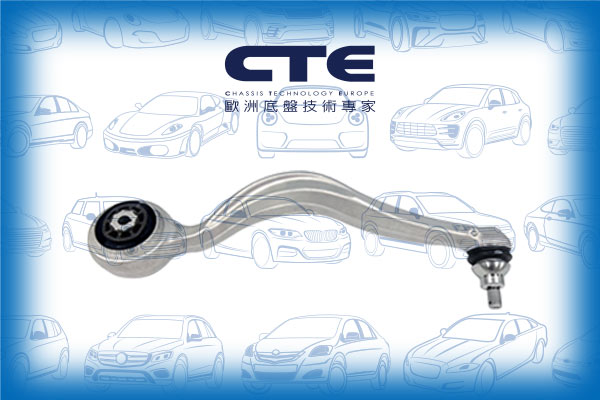

CS-2165R | FRONT LOWER RH | 205 330 20 05 A205 330 20 05 |
|
|
CS-2167L | REAR AXLE UPPER LH | 204 350 21 06 A204 350 21 06 |
|
|
CS-2167R | REAR AXLE UPPER RH | 204 350 22 06 A204 350 22 06 |
|
 |
CS-2168L | REAR AXLE LOWER LH | 204 350 05 53 205 350 65 03 A204 350 05 53 A205 350 65 03 |
|
 |
CS-2168R | REAR AXLE LOWER RH | 204 350 06 53 205 350 66 03 A204 350 06 53 A205 350 66 03 |
|
 |
CS-2169L | REAR AXLE UPPER LH | 204 350 15 06 204 350 30 06 205 350 61 03 A204 350 15 06 A204 350 30 06 A205 350 61 03 |
|
 |
CS-2169R | REAR AXLE UPPER RH | 204 350 16 06 204 350 31 06 205 350 62 03 A204 350 16 06 A204 350 31 06 A205 350 62 03 |
|
|
CS-2170 | REAR AXLE LOWER LH/RH | 204 350 00 29 204 350 27 06 204 352 12 05 205 350 63 03 A204 350 00 29 A204 350 27 06 A204 352 12 05 A205 350 63 03 |
|
 |

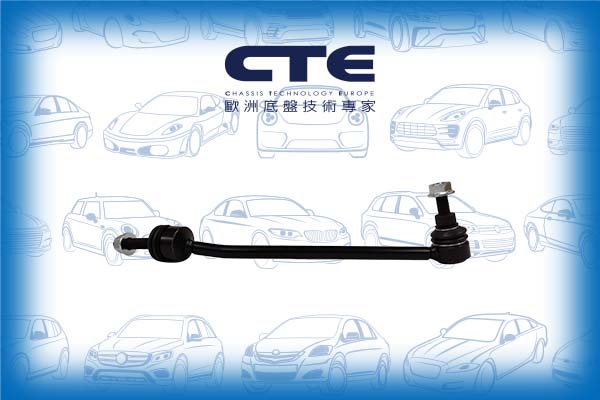

CSL21039L | FRONT AXLE LH | 205 323 09 17 A205 323 09 17 |
|
 |

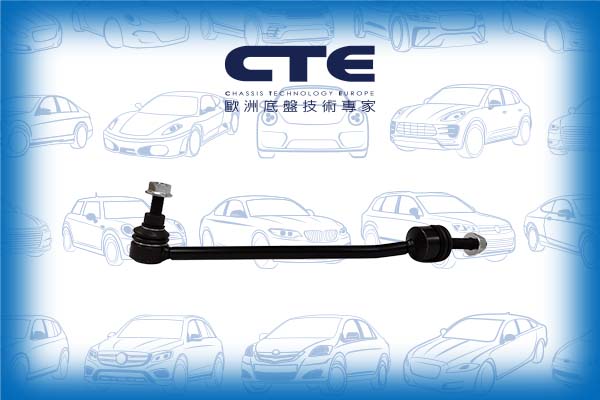

CSL21039R | FRONT AXLE RH | 205 323 10 17 A205 323 10 17 |
|
|
CSL21040L | REAR AXLE LH | 205 326 03 17 A205 326 03 17 |
|
|
CSL21040R | REAR AXLE RH | 205 326 04 17 A205 326 04 17 |
|
|
CTE21011L | FRONT AXLE LH (C= M14X1.5) | 205 460 00 05 A205 460 00 05 |
|
|
CTE21011R | FRONT AXLE RH (C= M14X1.5) | 205 460 01 05 A205 460 01 05 |
| Model (Year) |
|---|
|
C-CLASS (W204) C-CLASS (W205) C-CLASS Convertible (A205) C-CLASS Coupe (C204) C-CLASS Coupe (C205) C-CLASS T-Model (S204) C-CLASS T-Model (S205) CLS (C218) CLS (C257) CLS Shooting Brake (X218) E-CLASS (W212) E-CLASS (W213) E-CLASS All-Terrain (S213) E-CLASS Convertible (A207) E-CLASS Convertible (A238) E-CLASS Coupe (C207) E-CLASS Coupe (C238) E-CLASS T-Model (S212) E-CLASS T-Model (S213) EQC (N293) GLC (X253) GLC Coupe (C253) GLK-CLASS (X204) |
