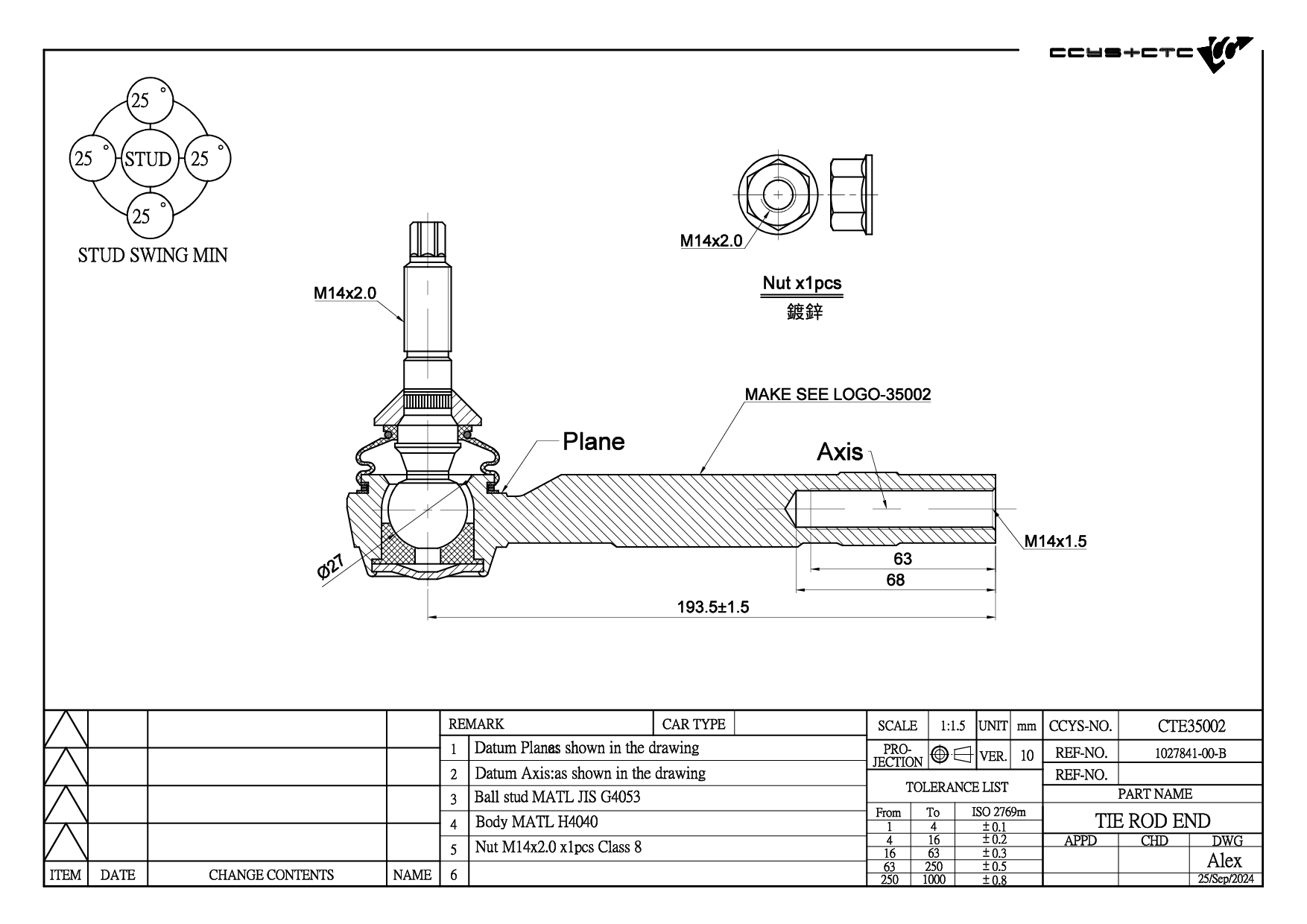

CTE35002
| Designation | Tie Rod End |
| Position | FRONT LH/RH |
| OE No. | 1027841-00-B |
| Length | 218 mm |
| Width | 54 mm |
| Height | 115 mm |
| Net Weight | 0.55 kg |
Model S (5YJS) construction year from 02.2021 Engine code 3D1
Model X (5YJX) Engine code 3D1
Model X (5YJX) Engine code 3D1
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH35001 | FRONT UPPER ARM INNER | 1043965-00-A 1043965-00-B 1043966-00-A 1043966-00-B 6006532-00-A 6006532-00-B 6008930-00-A 6008930-00-B |
|
 |
CBJ35001A | FRONT UPPER LH/RH | 1043965-00-A 1043965-00-B 1043966-00-A 1043966-00-B 6006532-00-A 6006532-00-B 6008930-00-A 6008930-00-B |
|
 |
COS35003 | FRONT | ||
 |
CRE35001 | FRONT AXLE LH/RH | 1070801-00-E 1070801-00-F 1070806-00-E |
|
 |
CS-3501L | FRONT UPPER LH | 1043965-00-A 1043965-00-B 1420321-00-C 6006532-00-A 6006532-00-B |
|
 |
CS-3501R | FRONT UPPER RH | 1043966-00-A 1043966-00-B 6008930-00-A 6008930-00-B |
|
 |
CSL35002 | FRONT (A=229MM) | 1030603-00-B |
|
 |
CTE35001 | FRONT AXLE LH/RH | 6007071-00-A 6007071-00-B |
|
 |
CTE35002 | FRONT LH/RH | 1027841-00-B |
| Model (Year) |
|---|
|
MODEL S (5YJS) MODEL X (5YJX) |
