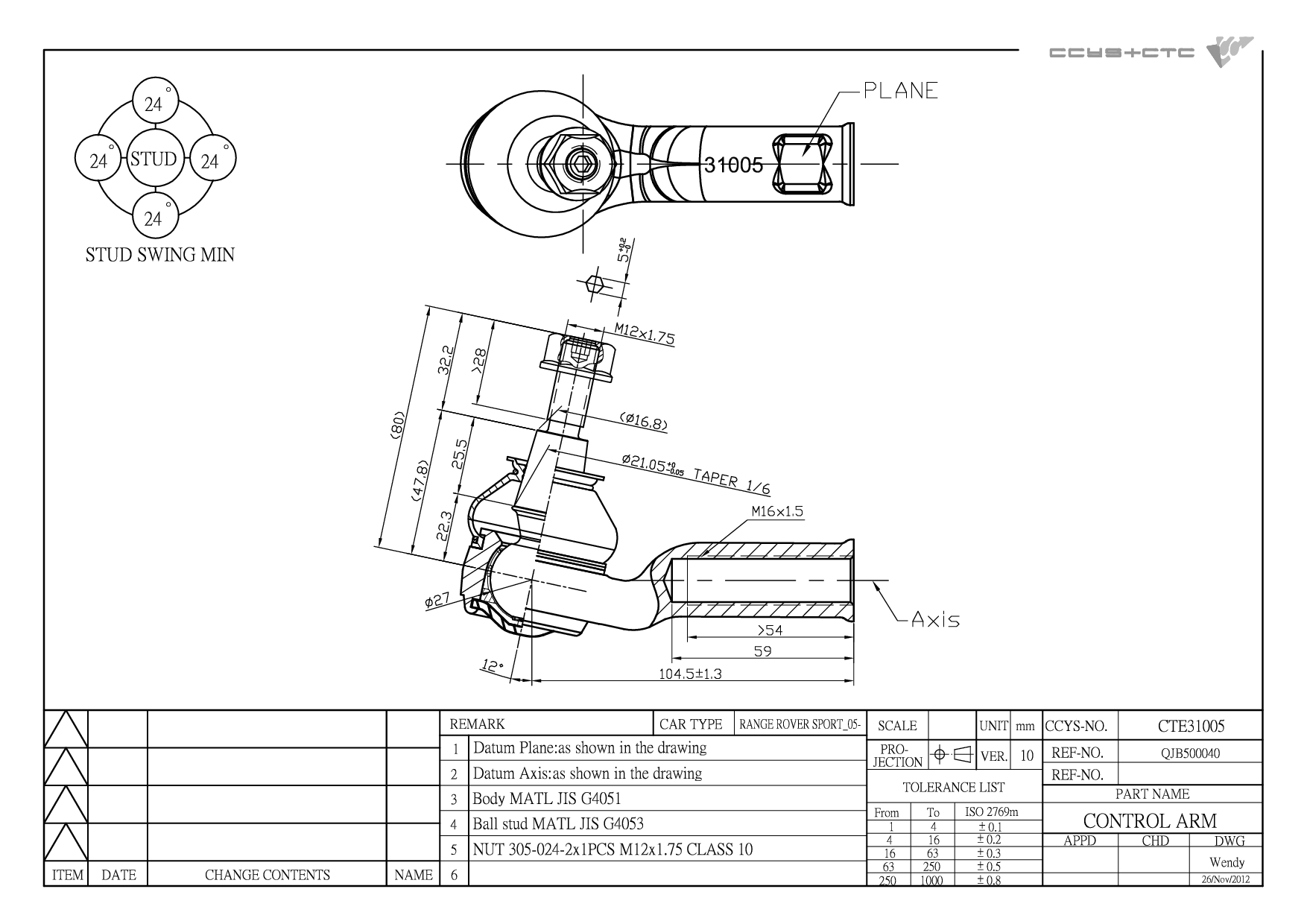

CTE31005
| Designation | Tie Rod End |
| Position | FRONT AXLE LH/RH (C= M16X1.5) |
| OE No. | LR010675 / QJB500040 |
| Length | 128.4 mm |
| Width | 51 mm |
| Height | 99 mm |
| Net Weight | 0.6 kg |
LAND ROVER SPORT I (L320) vehicle Identification Number (VIN) from 9A999999.
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH31007 | FRONT LOWER ARM REAR | LR023715 LR025986 LR055291 RBX500531 |
|
 |
CBH31009 | FRONT LOWER ARM INNER | RBX500431 RBX500432 |
|
 |
CBH31019 | FRONT UPPER ARM INNER | RBX500440 |
|
 |
CBJ31003 | FRONT LOWER LH/ RH | 5H223395DA 8H223K209AA 8H223K209AB RBK500040 RBK500140 RBK500180 RBK500230 RBK500240 RBK500280 RBK500300 |
|
 |
CBJ31008 | FRONT UPPER LH/ RH | RBK500030 RBK500161 RBK500170 |
|
 |
CRE31002 | D= M16X1.5 , C= M16X1.5 | QFK500030 |
|
 |
CS-3105L | FRONT LOWER LH | LR028252 LR029306 RBJ500456 RBJ501290 RBJ501390 RBJ501510 RBJ501610 |
|
 |
CS-3105R | FRONT LOWER RH | LR028248 LR029304 RBJ500446 RBJ501280 RBJ501380 RBJ501500 RBJ501600 |
|
 |
CS-3106L | FRONT UPPER LH | LR014629 LR051618 LR074838 RBJ500790 RBJ500850 |
|
 |
CS-3106R | FRONT UPPER RH | LR014619 LR026095 LR051617 RBJ500780 RBJ500840 |
|
 |
CS-3132L | FRONT LOWER LH | ||
 |
CS-3132R | FRONT LOWER RH | ||
 |
CS-3133L | FRONT UPPER LH | ||
 |
CS-3133R | FRONT UPPER RH | ||
 |
CSL31009L | FRONT LH (A= 345MM) | RBM500150 |
|
 |
CSL31009R | FRONT RH (A= 345MM) | RBM500140 |
|
 |
CSL31010 | REAR(A= 131.5MM) | RGD500140 |
|
 |
CTE31005 | FRONT AXLE LH/RH (C= M16X1.5) | LR010675 QJB500040 |
| Model (Year) |
|---|
|
RANGE ROVER SPORT I (L320) RANGE ROVER SPORT II (L494) |
