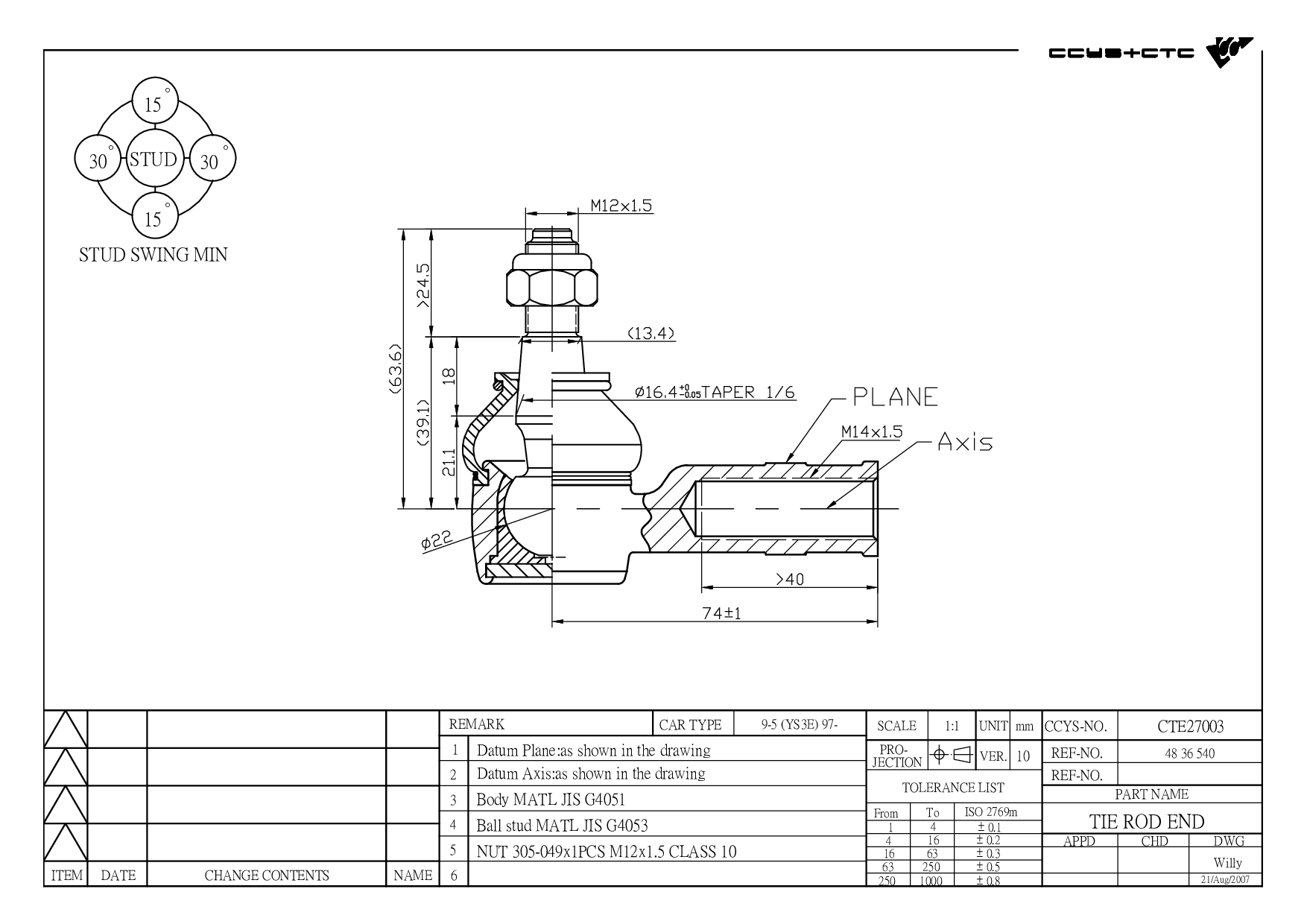

CTE27003
| Designation | Tie Rod End |
| Position | FRONT AXLE LH/ RH (C= M14X1.5) |
| OE No. | 0324063 / 0900319 / 1603286 / 324063 / 48 36 540 / 4905949 / 900319 / 90512766 / 90512775 / 93186321 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.32 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH15005 | FRONT LOWER ARM INNER | 03 52 357 03 52 364 090468636 090498738 3 52 313 3 52 323 3 52 357 352 300 352 364 4566899 4645974 90157161 90468636 90498738 9191165 |
|
 |
CBH15016 | FRONT LOWER ARM REAR | 0423302 0423318 09191309 12781136 423302 423318 5236633 90495585 9191309 |
|
 |
CBH27001 | REAR AXLE | 0423121 090495584 090496700 423121 4567244 4836219 90495584 90496700 |
|
 |
CBJ15002A | FRONT LOWER LH/ RH | 03 52 800 03 52 829 090487561 090512982 3 52 800 3 52 829 90487561 90512982 90542995 |
|
 |
CS-1507L | FRONT LOWER LH | 53 52 005 5352016 90496039 90498735 |
|
 |
CS-1507R | FRONT LOWER RH | 53 52 004 5352017 90496040 90498736 |
|
 |
CSL27006 | FRONT (A= 243.5MM) | 03 50 610 03 50 616 04 686 606 090496116 3 50 610 4 686 606 4686606 52 36 823 90496116 |
|
 |
CTE27003 | FRONT AXLE LH/ RH (C= M14X1.5) | 0324063 0900319 1603286 324063 48 36 540 4905949 900319 90512766 90512775 93186321 |
| Model (Year) |
|---|
|
VECTRA Estate (JS) VECTRA Hatchback (JR) VECTRA Hatchback (JS) VECTRA Saloon (JR) VECTRA Saloon (JS) |
| Model (Year) |
|---|
|
VECTRA B (J96) VECTRA B Estate (J96) VECTRA B Hatchback (J96) |
| Model (Year) |
|---|
|
9-5 (YS3E) 9-5 Estate (YS3E) |
| Model (Year) |
|---|
|
VECTRA (B) Estate (J96) VECTRA (B) Hatchback (J96) VECTRA (B) Saloon (J96) |
