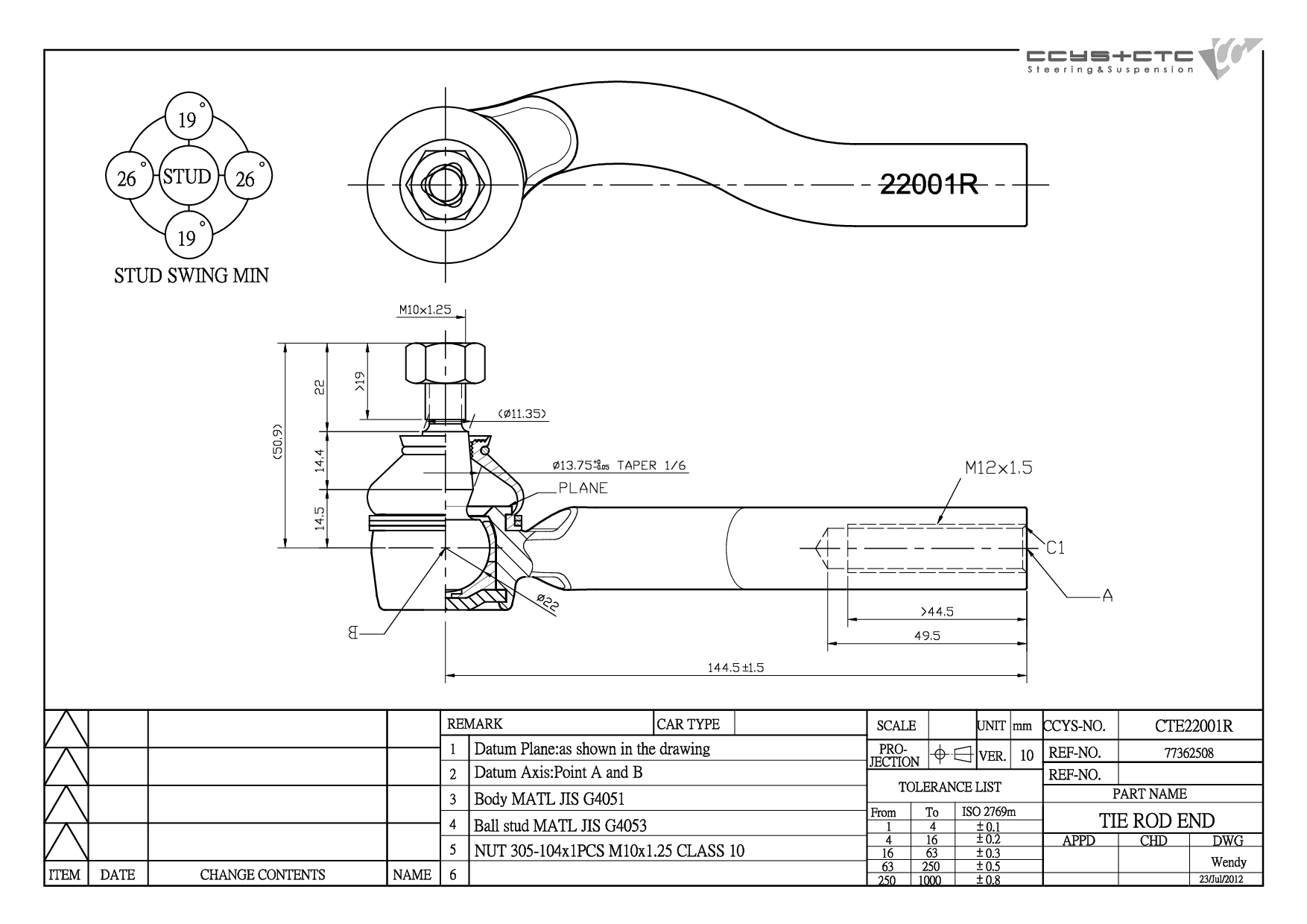

CTE22001R
| Designation | Tie Rod End |
| Position | FRONT AXLE RH (C= M12X1.5) |
| OE No. | 1543821 / 1546260 / 1935087 / 77362508 / 77367002 / 9S513270BA / 9S51-3270-BB / 9S51-3F667-BA |
| Length | 164 mm |
| Width | 45.2 mm |
| Height | 66.4 mm |
| Net Weight | 0.48 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH22022 | FRONT LOWER ARM REAR | 50702953 |
|
 |
COS22003 | FRONT | ||
 |
CS-2215L | FRONT LOWER LH | 50703128 51857133 6001070719 |
|
 |
CS-2215R | FRONT LOWER RH | 50703129 51857134 6001070720 |
|
 |
CSL22004 | FRONT (A= 314.5MM) | 50703296 51856872 |
|
 |
CTE22001L | FRONT AXLE LH (C= M12X1.5) | 1543820 1546259 1935084 77362507 77367001 9S513270AA 9S51-3270-AB 9S51-3F667-AA |
|
 |
CTE22001R | FRONT AXLE RH (C= M12X1.5) | 1543821 1546260 1935087 77362508 77367002 9S513270BA 9S51-3270-BB 9S51-3F667-BA |
| Model (Year) |
|---|
|
500 / 595 / 695 500C / 595C / 695C |
| Model (Year) |
|---|
|
500 (312_) 500 C (312_) PANDA (169_) | PANDA / PANDA CLASSIC PANDA Hatchback Van (169_) |
| Model (Year) |
|---|
|
KA (RU8) |
