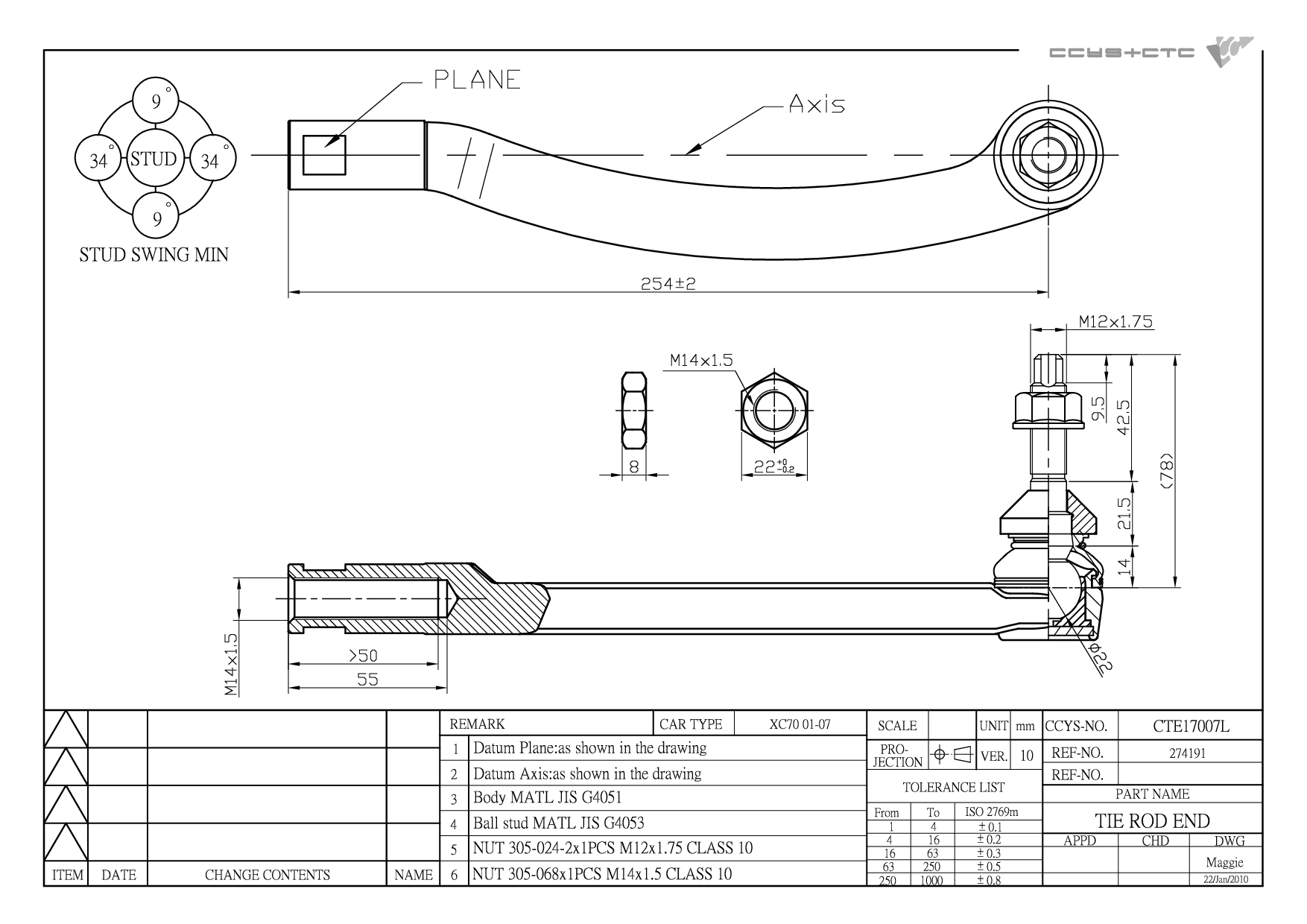

CTE17007L
| Designation | Tie Rod End |
| Position | FRONT AXLE LH (C= M14X1.5) |
| OE No. | 274191 / 274576 / 30776323 |
| Length | 277.58 mm |
| Width | 48.28 mm |
| Height | 95.07 mm |
| Net Weight | 1.08 kg |
(295) Year to 12.2004
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03067L | FRONT LOWER ARM LH REAR | 1888630 31262475 31340128 31387571 31429321 7G9J3A262AB |
|
 |
CBH03067R | FRONT LOWER ARM RH REAR | 1883048 31262473 31340127 31387572 31429320 7G9J3A262BB |
|
 |
CBH17006 | REAR AXLE UPPER | 30748890 8667020 8672220 9173761 |
|
 |
CBH17018 | REAR AXLE | 31 277 993 8672221 9200301 |
|
 |
CBH17026 | FRONT LOWER ARM INNER | 271631 6800251 |
|
 |
CBH17030 | FRONT LOWER ARM INNER | 1507181 1507182 31200775 31200776 31262473 31262475 31277345 31277346 31277525 31277526 31317663 31317664 31317665 31317666 31340127 31340128 31429320 31429321 7G9N 3A052 BB 7G9N 3A053 BB LR007205 LR007206 |
|
 |
CBH17037 | FRONT LOWER ARM INNER | 9465971 |
|
 |
CBH17038 | FRONT LOWER ARM INNER | 8630605 |
|
 |
CBH17041L | REAR AXEL LH | 31387280 31476221 |
|
 |
CBH17041R | REAR AXEL RH | 31387281 31476222 |
|
 |
CBJ17007A | FRONT LOWER LH/RH | 274185 274186 274187 274193 274193X1 274524 274544 274548 274593 8634438 9173613 91736132 9492639 |
|
 |
CRE17018 | D= M14X1.5 , C= M16X1.5 | 274179 30760714 8634757 8663288 8663289 9173611 9173612 |
|
 |
CS-1723L | FRONT LOWER LH | 30635231 30736387 36012459 36051004 8623959 8646373 8649545 |
|
 |
CS-1723R | FRONT LOWER RH | 30635232 30736388 36012460 36051005 8623960 8646374 8649546 |
|
 |
CSL17005 | FRONT (A= 303MM) | 1387860 1387860-8 30647921 30647995 30714686 8626031 8628703 8628726 9140767 9492804 9492804-1 |
|
 |
CSL17015 | FRONT (A= 332MM) | 274303 274456 30647919 30714685 31201602 31212692 8634736 8672445 9200603 |
|
 |
CTE17003L | FRONT AXLE LH (C= M14X2.0) | 22715985 271598 2715985 3546267 |
|
 |
CTE17003R | FRONT AXLE RH (C= M14X2.0) | 271599 2715993 3546268 |
|
 |
CTE17007L | FRONT AXLE LH (C= M14X1.5) | 274191 274576 30776323 |
|
 |
CTE17007R | FRONT AXLE RH (C= M14X1.5) | 274192 274582 30776324 |
| Model (Year) |
|---|
|
XC70 I Cross Country (295) | V70 XC |
