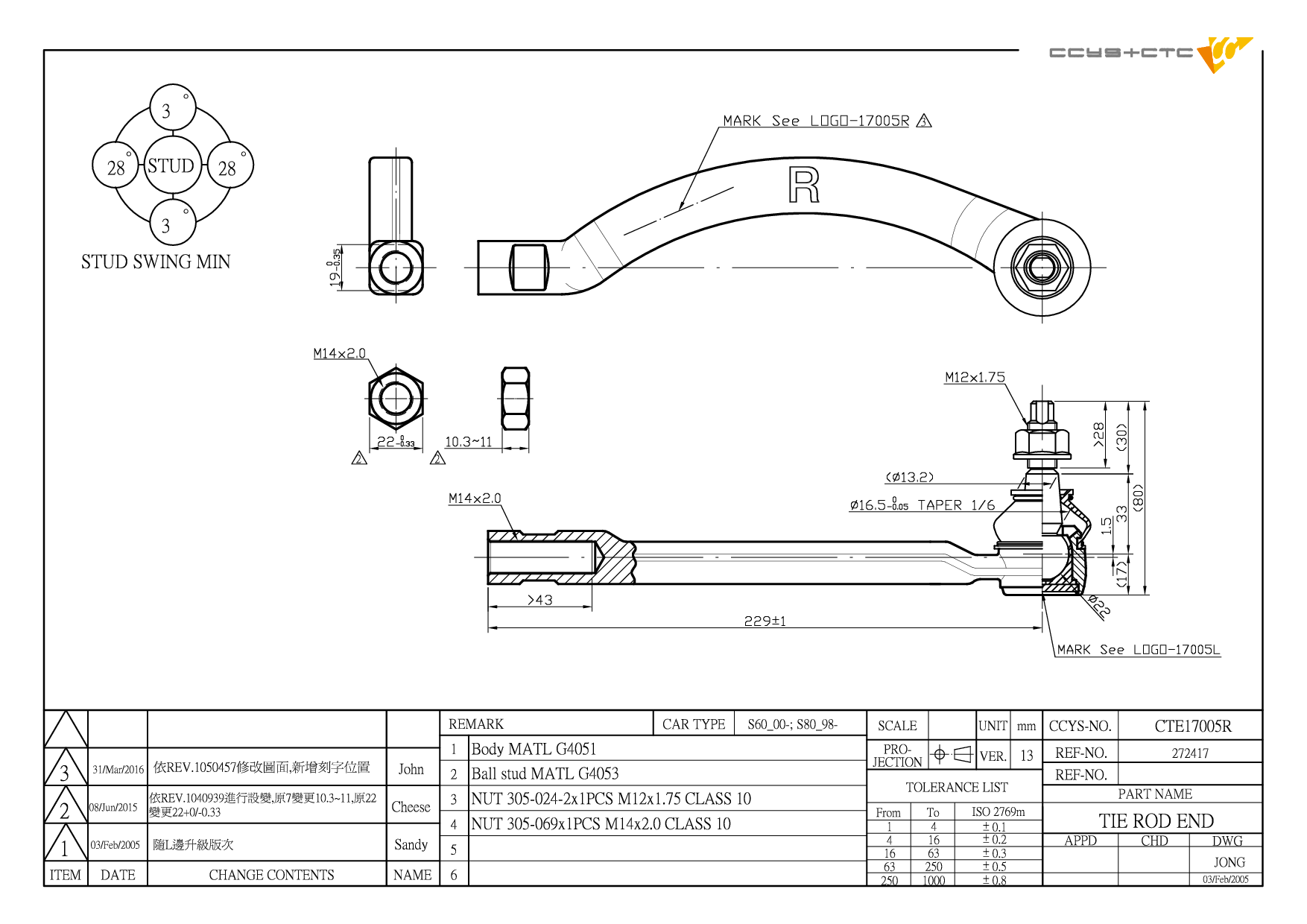

CTE17005R
| Designation | Tie Rod End |
| Position | FRONT AXLE RH (C= M14X2.0) |
| OE No. | 272417 / 8601755 / 8601757 / 8601759 / 9173029 / 9173030 / 9173031 / 9485270 / 9485271 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.9 kg |
(184) Construction year to 12.1999
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH17004 | FRONT AXLE | 9173618 9443882 9465971 |
|
 |
CBH17006 | REAR AXLE UPPER | 30748890 8667020 8672220 9173761 |
|
 |
CBH17008 | REAR AXLE INNER | 31277893 9169204 |
|
 |
CBH17009 | REAR AXLE INNER | 30645401 31277952 9157579 |
|
 |
CBH17010 | REAR AXLE OUTER | 9127363 |
|
 |
CBH17011 | FRONT LOWER ARM REAR | 30760590 31360784 8630604 9461626 |
|
 |
CBH17017 | REAR AXLE INNER | 9492181 |
|
 |
CBJ17007A | FRONT LOWER LH/RH | 274185 274186 274187 274193 274193X1 274524 274544 274548 274593 8634438 9173613 91736132 9492639 |
|
 |
CRE17018 | D= M14X1.5 , C= M16X1.5 | 274179 30760714 8634757 8663288 8663289 9173611 9173612 |
|
 |
CRE17019 | D= M14X2.0 , C= M16X1.5 | 272428 |
|
 |
CRE17022 | D= M14X1.5 , C= M16X1.5 | 274353 |
|
 |
CS-1715L | FRONT LOWER LH | 30635227 30736376 8623955 8649541 9461637 9492105 |
|
 |
CS-1715R | FRONT LOWER RH | 30635228 30736377 8623956 8649542 9461638 9492106 |
|
 |
CSL17006 | FRONT (A= 244.5MM) | 272991 6819253 9492837 |
|
 |
CSL17013 | REAR (A= 140MM) | 30647920 30714678 31201603 8634869 8672446 9169080 |
|
 |
CSL17015 | FRONT (A= 332MM) | 274303 274456 30647919 30714685 31201602 31212692 8634736 8672445 9200603 |
|
 |
CSL17017 | REAR (A= 140MM) | 30647920 30714678 31201603 8634869 8672446 9169080 |
|
 |
CTE17004L | FRONT AXLE LH (C= M14X1.5) | 274175 274496 30761719 8663288 9173611 9490820 |
|
 |
CTE17004R | FRONT AXLE RH (C= M14X1.5) | 274176 274497 30761718 8663289 9173612 9490821 |
|
 |
CTE17005L | FRONT AXLE LH (C= M14X2.0) | 272416 8601755 8601757 8601759 9173029 9173030 9173031 9485270 9485271 |
|
 |
CTE17005R | FRONT AXLE RH (C= M14X2.0) | 272417 8601755 8601757 8601759 9173029 9173030 9173031 9485270 9485271 |
| Model (Year) |
|---|
|
S80 I (184) |
