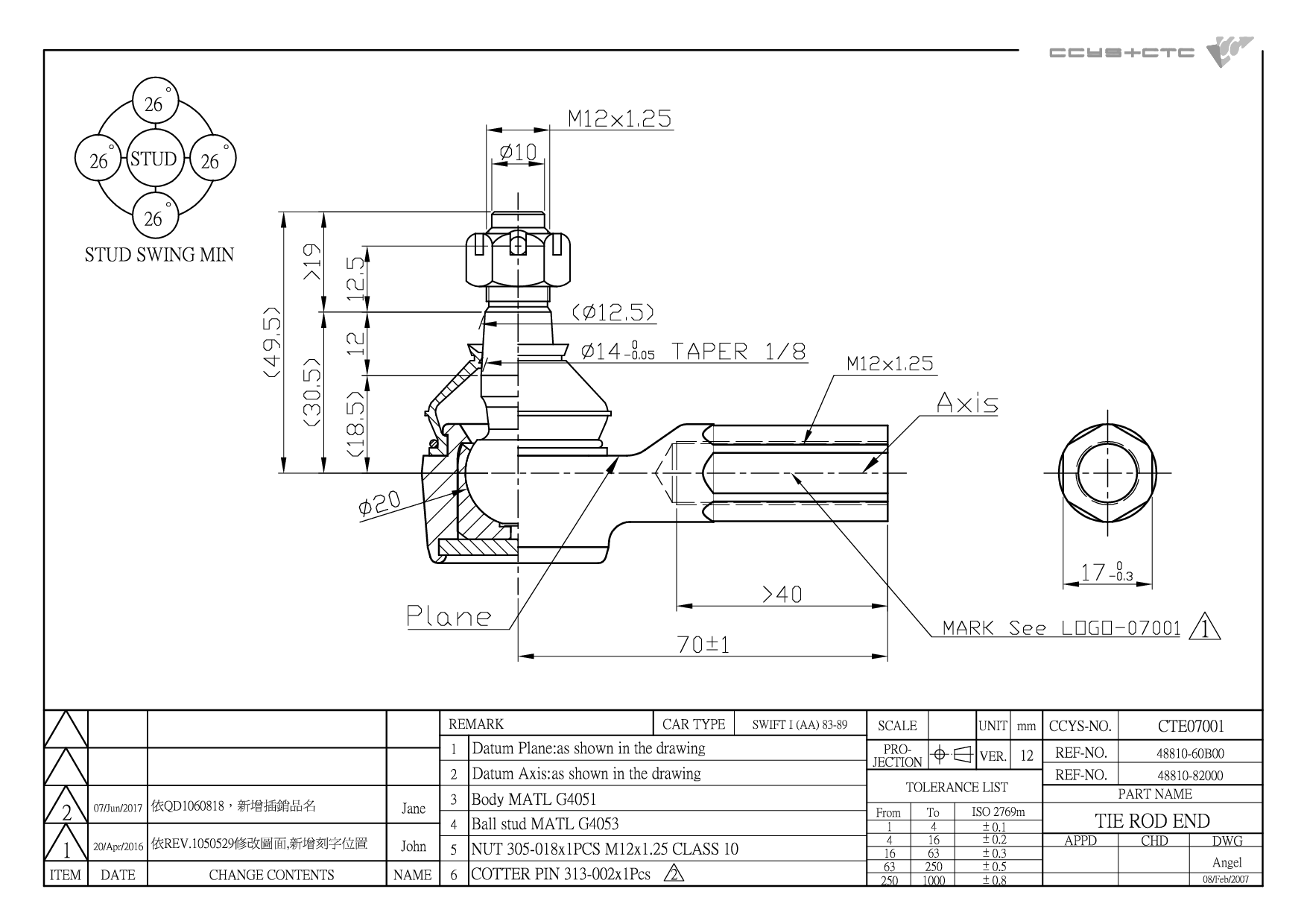

CTE07001
| Designation | Tie Rod End |
| Position | FRONT AXLE LH/RH (C= M12X1.25) |
| OE No. | 1A01-32-280 / 48520-4A0A0 / 48810-50G10 / 48810-50G20 / 48810-60B00 / 48810-76G00 / 48810-82000 / 91175475 / 96052290 |
| Length | 89 mm |
| Width | 67 mm |
| Height | 36 mm |
| Net Weight | 0.28 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07001 | FRONT LOWER ARM INNER | 009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963 |
|
 |
CBH15023 | FRONT LOWER ARM OUTER | 009205432 009209350 009209466 09205432 09209350 09209466 42451-76G00 42451-76G00-000 42451-M76G00 47 05 409 9205432 9209350 9209466 |
|
 |
CRE07009 | D= M12X1.25 , C= M14X1.5 | 48830-75F00 48830-75F00-000 48830-75F01 48830-75F01-000 48830-78F00 48830-78F00-000 48830-78F01 48830-78F01-000 |
|
 |
CS-1514 | FRONT LOWER LH/ RH | 009208987 009217259 09208987 09217259 1A07-34-300A 45200-75F00 45200-75F00-000 45200-75F10 45200-75F20 45200-75F20-000 45200-75F21 45200-75F21-000 4705172 4708233 9208987 9217259 |
|
 |
CTE07001 | FRONT AXLE LH/RH (C= M12X1.25) | 1A01-32-280 48520-4A0A0 48810-50G10 48810-50G20 48810-60B00 48810-76G00 48810-82000 91175475 96052290 |
| Model (Year) |
|---|
|
TICO (KLY3) |
| Model (Year) |
|---|
|
JUSTY II (JMA, MS) |
| Model (Year) |
|---|
|
BALENO (EG) | ESTEEM BALENO Estate (EG) | ESTEEM BALENO Hatchback (EG) CAPPUCCINO (EE) IGNIS I (FH) LIANA (ER, RH_) | AERIO | BALENO LIANA Hatchback | AERIO SWIFT Convertible (SF413) SWIFT I (AA) | SA 310 SWIFT II Hatchback (EA, MA) | CULTUS SWIFT II Hatchback (EA, MA) | CULTUS | BALENO SWIFT II Saloon (AH, AJ) WAGON R+ Hatchback (EM) | WAGON R WIDE |
