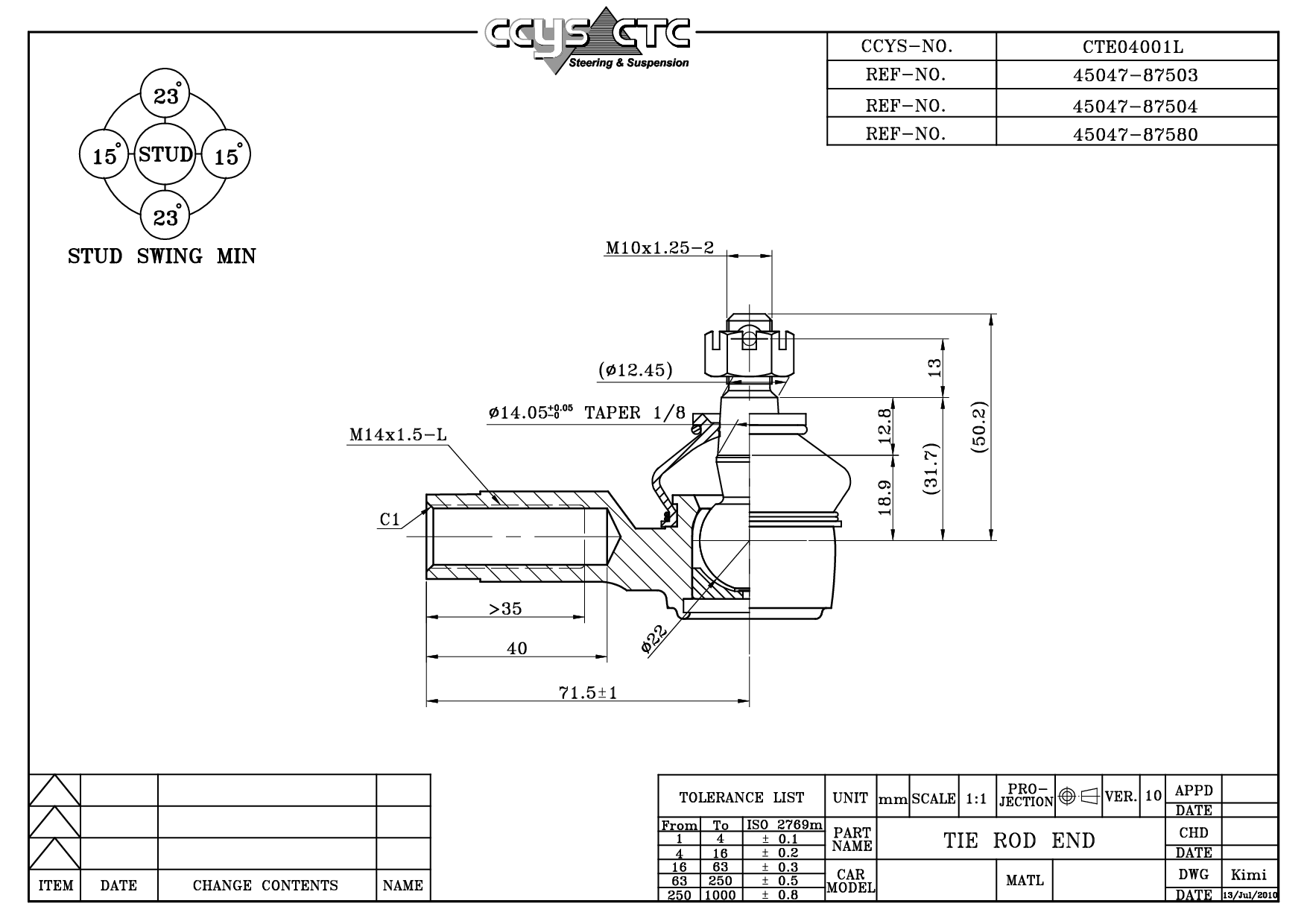

CTE04001L
| Designation | Tie Rod End |
| Position | FRONT AXLE LH/ RH (C= M14X1.5L) OUTER |
| OE No. | 45047-87503 / 45047-87504 / 45047-87580 / 45047-87581 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.33 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02001 | FRONT LOWER ARM INNER | 48068-87515 48069-87515 48654-12010 |
|
 |
CBH04006 | FRONT LOWER ARM INNER | 48068-87504 48068-87504-000 48068-87507 48068-87511-000 48068-87512 48068-87512000 48069-87504 48069-87504-000 48069-87507 48069-87511-000 48069-87512 48069-87512000 B006059 B006060 |
|
 |
CS-408L | FRONT LOWER LH | 48069-87507 48069-87512 48069-87512000 B006059 |
|
 |
CS-408R | FRONT LOWER RH | 48068-87507 48068-87512 48068-87512000 B006060 |
|
 |
CS-410L | FRONT LOWER LH | 48069-87515 |
|
 |
CS-410R | FRONT LOWER RH | 48068-87515 |
|
 |
CTE04001L | FRONT AXLE LH/ RH (C= M14X1.5L) OUTER | 45047-87503 45047-87504 45047-87580 45047-87581 |
|
 |
CTE04001R | FRONT AXLE LH/ RH (C= M14X1.5) INNER | 45046-87503 45046-87504 45046-87580 45046-87581 |
| Model (Year) |
|---|
|
HIJET Bus HIJET Bus (S85) HIJET Platform/Chassis HIJET Van (S85) HIJET Van (S8_) |
