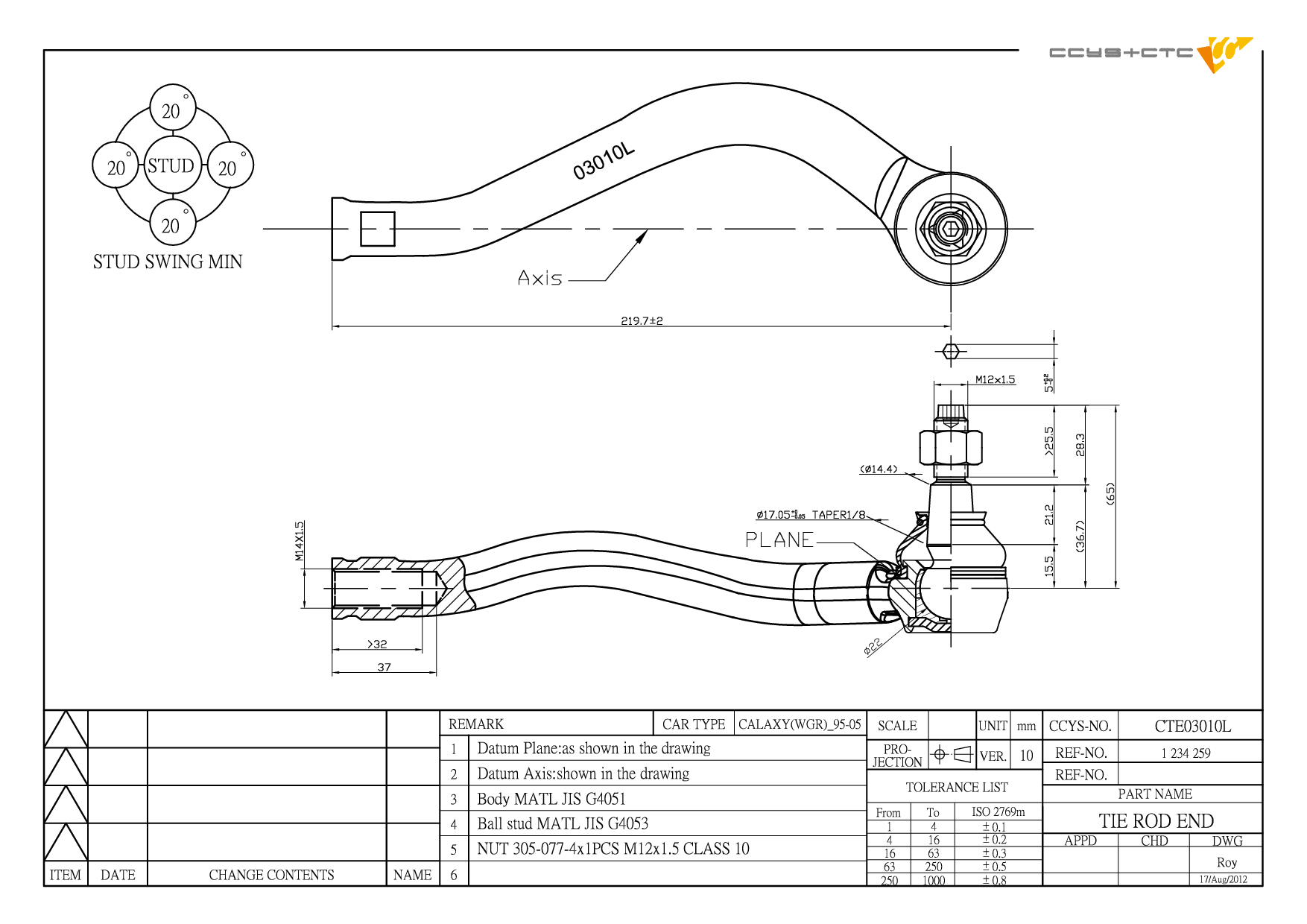

Tie Rod End/FORD/GALAXY I (WGR)

CTE03010L

Designation Tie Rod End
Position FRONT AXLE LH (C= M14X1.5)
OE No. 1001398 / 1058380 / 1092380 / 1234259 / 3M21-3281-AA / 7M0 422 817A / 7M0 422 817B / 7M3 422 817 / 95VW-3281-AF / 95VW-3281-BB / 95VW-3281-BC
Length 239.8 mm
Width 71.9 mm
Height 80.8 mm
Net Weight 0.78 kg
CTE No. DESIGNATION POSITION OE NO.
CBH03065 FRONT LOWER ARM REAR
1044571
7M0 407 181
7M0 407 181A
95VW-3A262-BA
95VW-3A638-CA
CBH20015 FRONT LOWER ARM INNER
7201717
7M0 501 541
95VW-5A638-CA
CRE03052 D= M14X1.5 , C= M14X1.5
1001395
1001396
1001397
1020496
1020497
1092376
1092382
1121508
1121509
1233552
1233553
7200944
7398676
7M0 422 803F
7M0 422 803G
7M0 422 804F
7M0 422 804G
7M3 422 803
7M3 422 803A
7M3 422 804
7M3 422 804A
95VW-3280-AF
95VW-3280-AG
95VW-3280-AH
95VW-3281-
CS-351L FRONT LOWER LH
1007602
7M0 407 151 B
95VW-3079-AC
CS-351R FRONT LOWER RH
1012632
7M0 407 152 B
95VW-3078-AC
CSL03040 FRONT (A= 205.5MM)
1009591
1141774
1232756
1353188
1361653
1M21 5489 AA
1M21 5489 AB
3M21 5489 AA
3M21 5489 AB
7200959
7M0 411 309 B
7M0 411 309 D
7M0 411 317
7M0 411 317 C
7M0 411 317 D
7M3 411 317
7M3 411 317 A
7M3 411 317 B
7M3 411 317 C
7M3 411 317 E
95VW 5489 AC
CSR03001L FRONT AXLE LH
1001397
1020497
1092382
1121509
1233552
7M0 422 803F
7M0 422 803G
7M3 422 803
7M3 422 803A
95VW-3281-AF
95VW-3281-AG
95VW-3281-AH
YM21-3281-AA
YM21-3281-AB
CSR03001R FRONT AXLE RH
1001395
1001396
1020496
1092376
1121508
1233553
7200944
7398676
7M0 422 804F
7M0 422 804G
7M3 422 804
7M3 422 804A
95VW-3280-AF
95VW-3280-AG
95VW-3280-AH
YM21-3280-AA
YM21-3280-AB
CTE03010L FRONT AXLE LH (C= M14X1.5)
1001398
1058380
1092380
1234259
3M21-3281-AA
7M0 422 817A
7M0 422 817B
7M3 422 817
95VW-3281-AF
95VW-3281-BB
95VW-3281-BC
CTE03010R FRONT AXLE RH (C= M14X1.5)
1058378
1092377
1234258
3M21-3280-AA
7M0 422 818
7M0 422 818A
7M0 422 818B
7M3 422 818
95VW-3280-BB
95VW-3280-BC
Model (Year)
GALAXY I (WGR)
Model (Year)
ALHAMBRA (7V8, 7V9)
Model (Year)
SHARAN (7M8, 7M9, 7M6)
