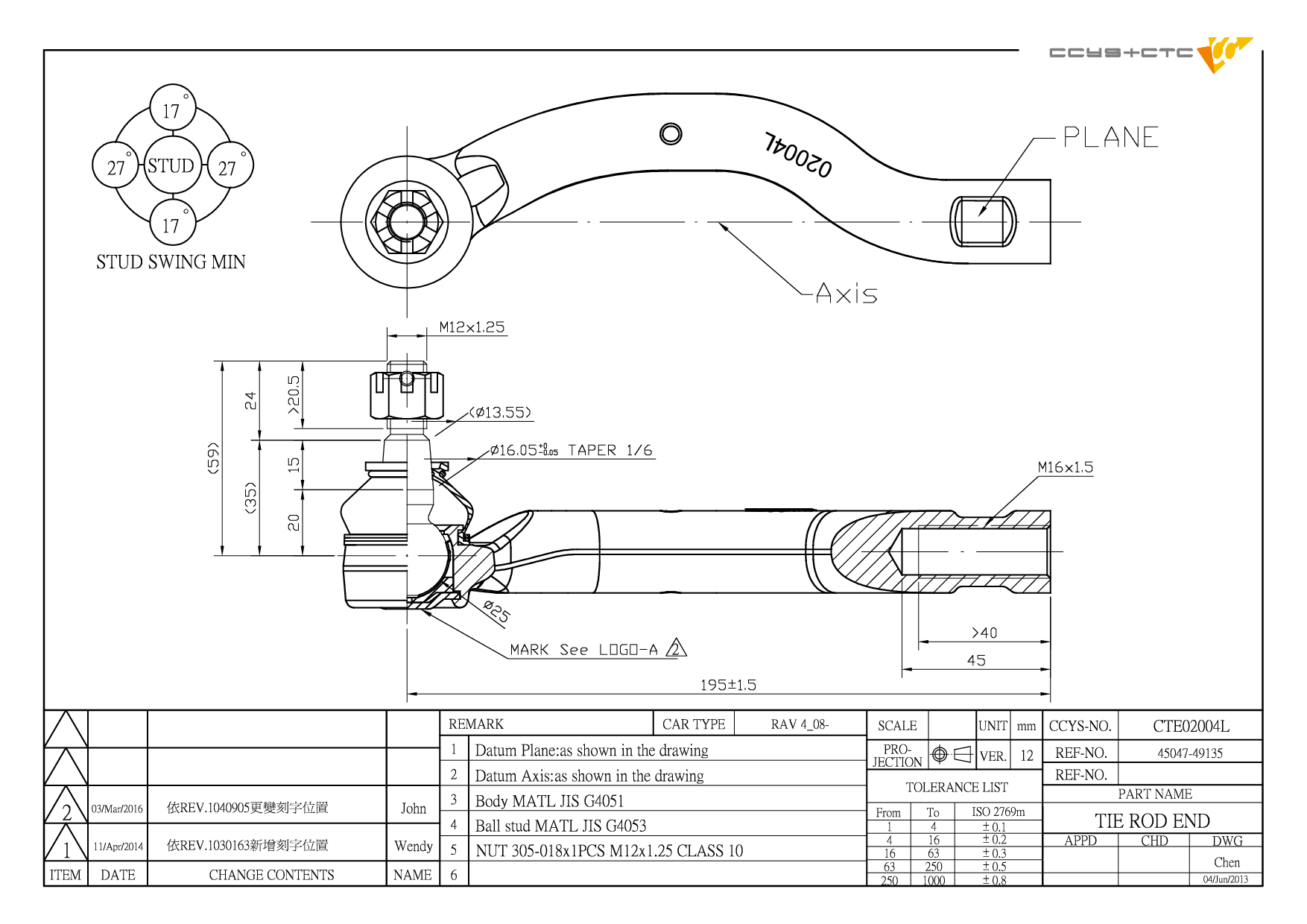

CTE02004L
| Designation | Tie Rod End |
| Position | FRONT AXLE LH (C= M16X1.5) |
| OE No. | 45047-09310 / 45047-49135 |
| Length | 215 mm |
| Width | 59 mm |
| Height | 75.2 mm |
| Net Weight | 0.87 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02044 | FRONT LOWER ARM INNER | 48068-02130 48068-12300 48068-47050 48068-F4010 48069-02130 48069-12300 48069-47050 48069-F4010 48654-02040 48654-05060 48654-42030 48654-42040 48654-47030 48655-42050 |
|
 |
CBJ02016A | FRONT LOWER LH/RH | 43330-02111 43330-05040 43330-09630 43330-09631 43330-09720 43330-09770 43330-09A30 43330-09A40 43330-19245 43330-19255 43330-19275 43330-49095 43330-49195 43330-49215 |
|
 |
COS02004 | FRONT | ||
 |
CS-298L | REAR UPPER LH | 48780-42010 48780-42030 48780-48110 48780-78010 |
|
|
CS-298R | REAR UPPER RH | 48760-42010 48760-42030 48760-48110 48760-78010 |
|
 |
CSL02066 | FRONT (A= 360MM) | 48820-02070 48820-02080 48820-0R010 48820-42030 48820-47020 48820-47030 |
|
 |
CSL02081 | REAR AXLE LH/RH | 48830-0R010 48830-42021 48830-42022 |
|
 |
CTE02004L | FRONT AXLE LH (C= M16X1.5) | 45047-09310 45047-49135 |
|
 |
CTE02004R | FRONT AXLE RH (C= M16X1.5) | 45046-09650 45046-49195 |
| Model (Year) |
|---|
|
HS (ANF10) NX (_Z1_) |
| Model (Year) |
|---|
|
HARRIER (_U6_) MIRAI (JPD1_) RAV 4 III (_A3_) | RAV 4 / VANGUARD RAV 4 IV (_A4_) |
