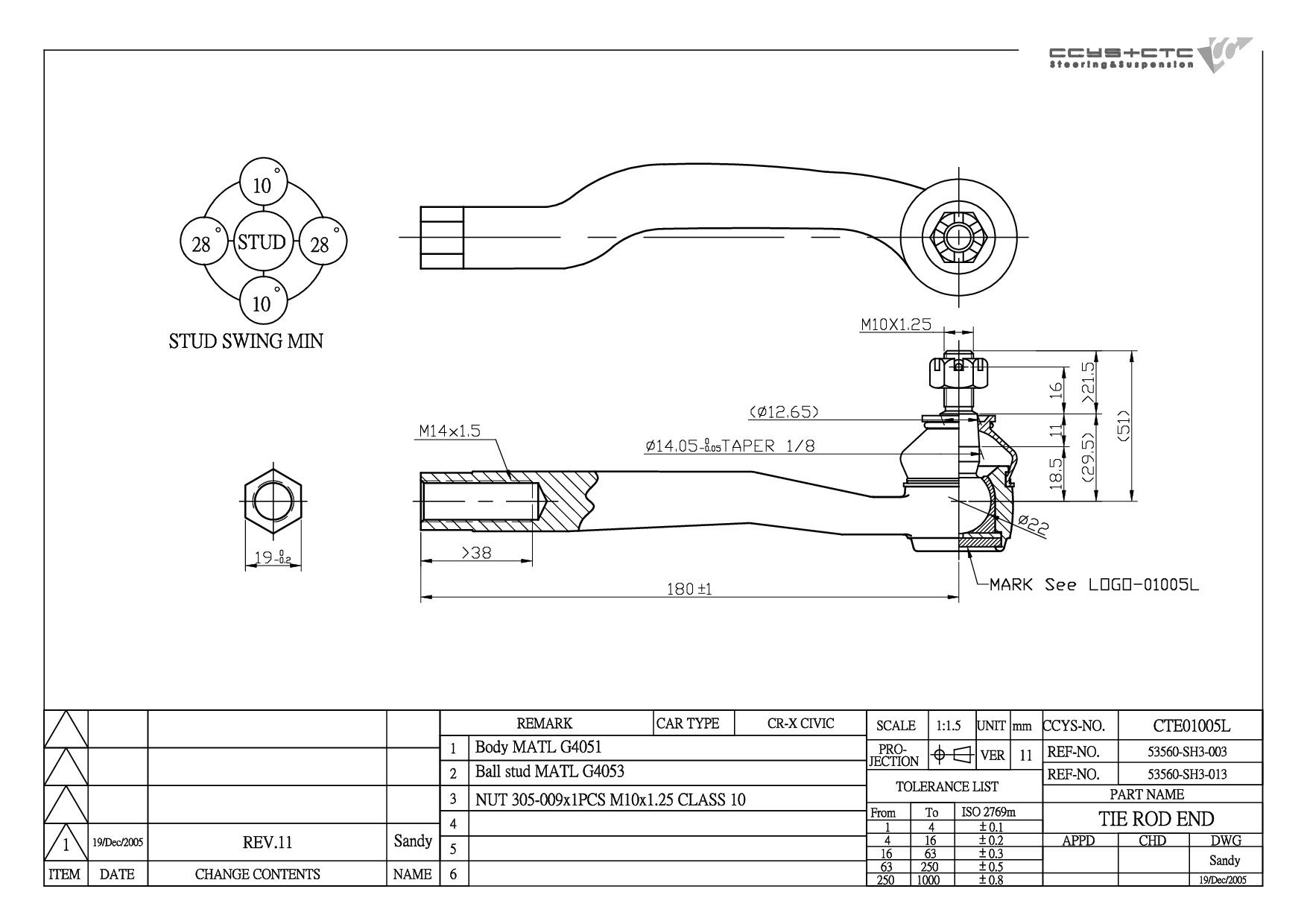

CTE01005L
| Designation | Tie Rod End |
| Position | FRONT AXLE LH (C= M14X1.5) |
| OE No. | 53560-SH3-000 / 53560-SH3-003 / 53560-SH3-013 |
| Length | 204 mm |
| Width | 69 mm |
| Height | 45 mm |
| Net Weight | 0.63 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01003 | FRONT LOWER ARM INNER | 51393-692-000 51393-692-004 51393-692-014 51393-SA5-003 51393-SE0-003 51393-SF1-003 51393-SH3-003 51393-SH3-004 51396-SA0-004 51396-SH3-003 52392-693-731 |
|
 |
CBH01004 | FRONT UPPER ARM KIT | 51455-SH3-005 |
|
 |
CBH01023 | REAR AXLE OUTER | 52370-SH3-000 52385-SR3-000 52385-ST3-G01 RGX10007 RGX1007 RGX100980 |
|
 |
CBH05011 | FRONT LOWER ARM OUTER | 51810-SH3-000 51810-SH3-003 51810-SH3-004 52365-ST3-G02 RBX100680 |
|
 |
CRE01009 | D= M14X1.5 , C= M12X1.25 | 53521-SH3-003 53521-SH3-013 |
|
 |
CS-107L | FRONT UPPER LH | 51460-SH3-000 51460-SH3-023 51460-SH3-030 |
|
 |
CS-107R | FRONT UPPER RH | 51450-SH3-000 51450-SH3-023 51450-SH3-030 |
|
 |
CS-108L | FRONT LOWER LH | 51365-SH3-000 51365-SH3-010 51365-SH3-020 |
|
 |
CS-108R | FRONT LOWER RH | 51355-SH3-000 51355-SH3-010 51355-SH3-020 |
|
 |
CSL01007 | FRONT | 90112-SE0-000 90112-SJ8-000 90112-SK7-000 |
|
 |
CSL01008 | REAR (A= 74.5MM) | 51312-SR0-000 51312-SR0-010 51312-SR3-000 52303-S43-010 52303-SH3-000 52303-SH3-010 52303-SH3-020 52303-SK3-000 52303-SK3-010 RGD10001 |
|
 |
CTE01005L | FRONT AXLE LH (C= M14X1.5) | 53560-SH3-000 53560-SH3-003 53560-SH3-013 |
|
 |
CTE01005R | FRONT AXLE RH (C= M14X1.5) | 53540-SH3-000 53540-SH3-003 53540-SH3-013 |
| Model (Year) |
|---|
|
CIVIC IV Hatchback (EC, ED, EE, EF) CIVIC IV Saloon (ED, EF) CRX II (ED, EE) INTEGRA Hatchback (DA) |
