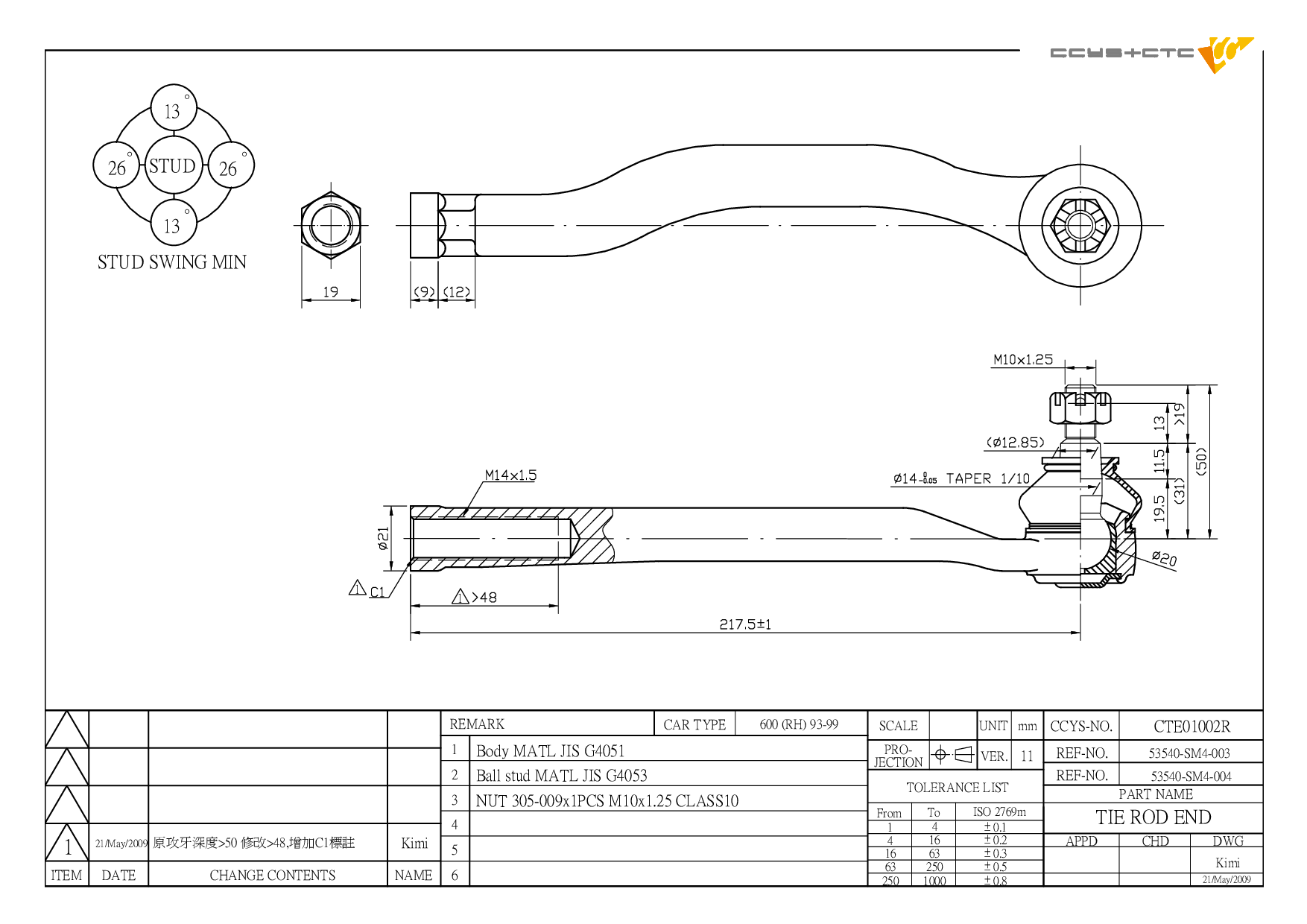

CTE01002R
| Designation | Tie Rod End |
| Position | FRONT AXLE RH (C= M14X1.5) |
| OE No. | 53540-S1A-E01 / 53540-S84-A01 / 53540-SM4-003 / 53540-SM4-004 / 53540-SM4-J62 / 53540-SV4-003 / 53540-SV4-013 / 53540-SV7-003 / 53540-SX0-003 / 53540-SX0-013 / 53540-SX4-003 / GSJ408 |
| Length | 238 mm |
| Width | 66 mm |
| Height | 46 mm |
| Net Weight | 0.66 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01022 | FRONT LOWER ARM INNER | 51393-S0A-004 51393-S0A-014 51393-S1A-E01 51393-SL4-004 51393-SL5-003 51393-SL5-013 51393-SL9-013 51393-SM4-003 51393-SM4-013 51393-SM4-505 51393-SV1-A01 51393-SV1-E01 RBX100431 |
|
 |
CBH01025 | REAR LINK INNER | 52390-S3V-A01 52390-S84-A01 52390-SDA-A01 52390-SHJ-A01 52400-S3V-A01 52400-SHJ-A01 CK620375 |
|
 |
CBH01039 | FRONT UPPER ARM INNER | 51450-S1A-E01 51450-S2X-003 51450-S84-A01 51460-S1A-E01 51460-S2X-003 51460-S84-A01 |
|
 |
CS-127L | FRONT UPPER LH | 51460-S1A-E01 51460-S2X-003 51460-S84-A01 |
|
 |
CS-127R | FRONT UPPER RH | 51450-S1A-E01 51450-S2X-003 51450-S84-A01 |
|
 |
CS-128L | FRONT LOWER LH | 51365-S84-A00 |
|
 |
CS-128R | FRONT LOWER RH | 51355-S84-A00 |
|
 |
CS-132 | REAR AXLE LINK LH/ RH | 52390-S84-A01 CK620375 |
|
 |
CS-138L | FRONT LOWER LH | 51365-S0A-920 51365-S1A-E00 |
|
 |
CS-138R | FRONT LOWER RH | 51355-S0A-920 51355-S1A-E00 |
|
 |
CTE01002L | FRONT AXLE LH (C= M14X1.5) | 53560-S1A-E01 53560-S84-A01 53560-SM4-003 53560-SM4-004 53560-SM4-J62 53560-SV4-003 53560-SV4-013 53560-SV7-003 53560-SX0-003 53560-SX0-013 53560-SX4-003 GSJ407 |
|
 |
CTE01002R | FRONT AXLE RH (C= M14X1.5) | 53540-S1A-E01 53540-S84-A01 53540-SM4-003 53540-SM4-004 53540-SM4-J62 53540-SV4-003 53540-SV4-013 53540-SV7-003 53540-SX0-003 53540-SX0-013 53540-SX4-003 GSJ408 |
| Model (Year) |
|---|
|
ACCORD IV (CB) ACCORD IV Aerodeck (CB) ACCORD IV Coupe (CB, CC) ACCORD V (CC, CD) ACCORD V (CE, CF_, CD) ACCORD V Aerodeck (CE) ACCORD V Coupe (CD) ACCORD VI (CK, CG, CH, CF, CL) ACCORD VI Aerodeck (CF) ACCORD VI Coupe (CG) ACCORD VI Hatchback (CH, CL) ODYSSEY (RA_) SHUTTLE (RA) | ODYSSEY |
| Model (Year) |
|---|
|
600 I (RH) |
