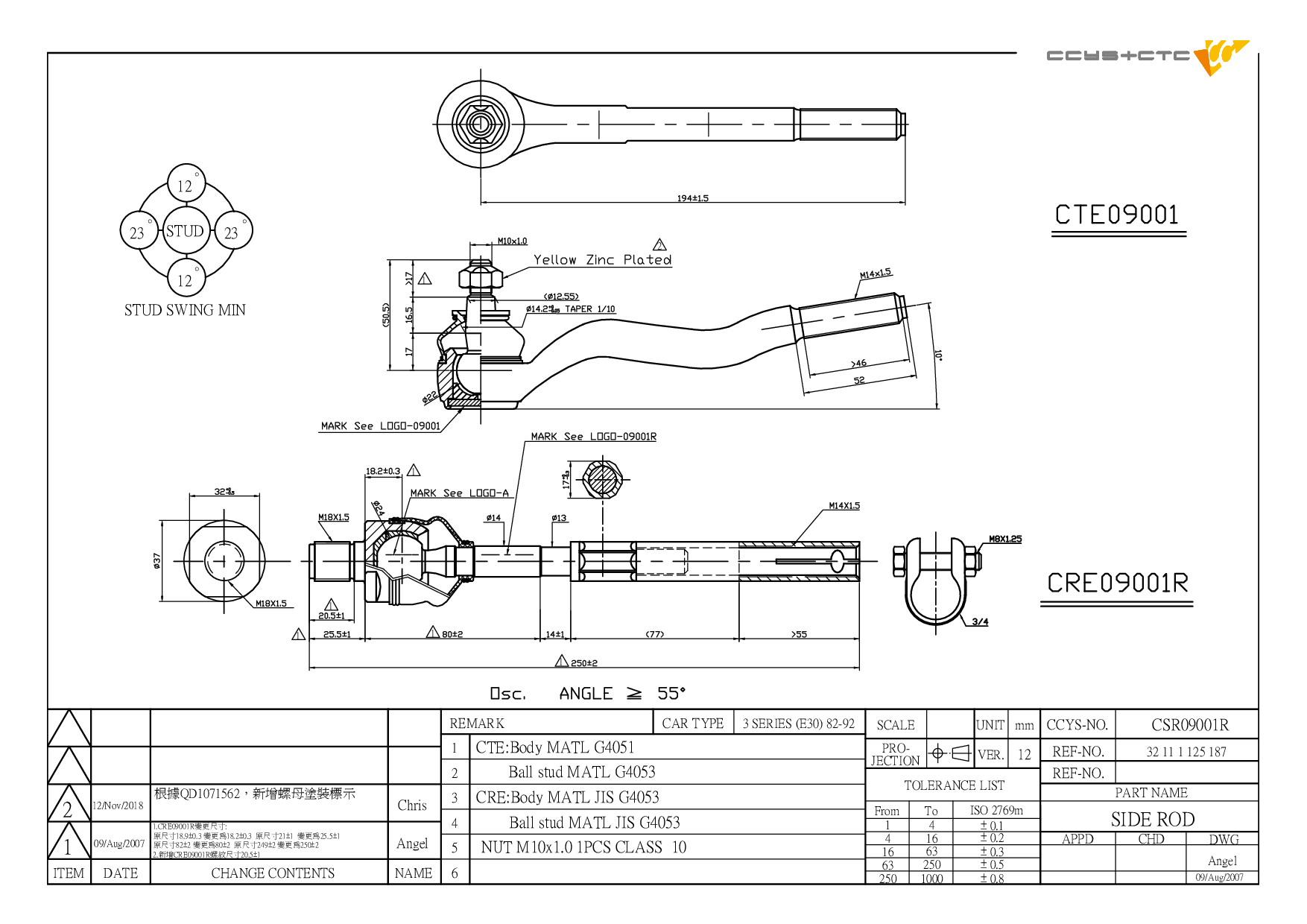

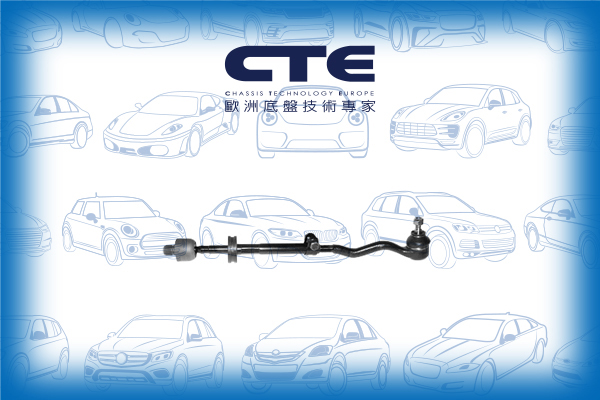

CSR09001R
| Designation | Side Rod |
| Position | FRONT AXLE RH |
| OE No. | 1 125 187 / 1 126 362 / 32 11 1 125 187 / 32 11 1 126 362 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 1.07 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ09001 | FRONT LOWER LH/ RH INNER | 1 126 253 1 126 296 1 139 131 31 12 1 126 253 31 12 1 126 296 31 12 1 139 131 |
|
 |

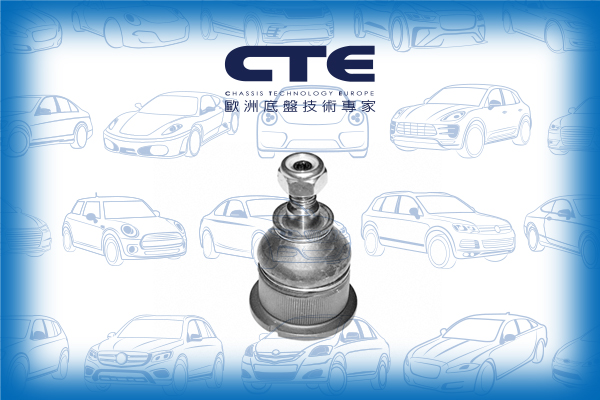

CBJ09002 | FRONT LOWER LH/ RHR OUTER | 1 126 254 31 12 1 126 254 |
|
 |
CSL09003 | FRONT (A= 70MM) | 1 091 764 1 127 689 1 128 737 31 35 1 091 764 31 35 1 127 689 31 35 1 128 737 |
|
 |

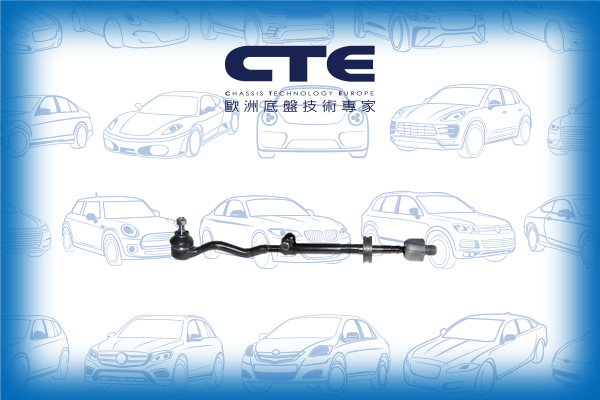

CSR09001L | FRONT AXLE LH | 1 125 186 1 126 360 32 11 1 125 186 32 11 1 126 360 |
|
 |
CSR09001R | FRONT AXLE RH | 1 125 187 1 126 362 32 11 1 125 187 32 11 1 126 362 |
|
 |

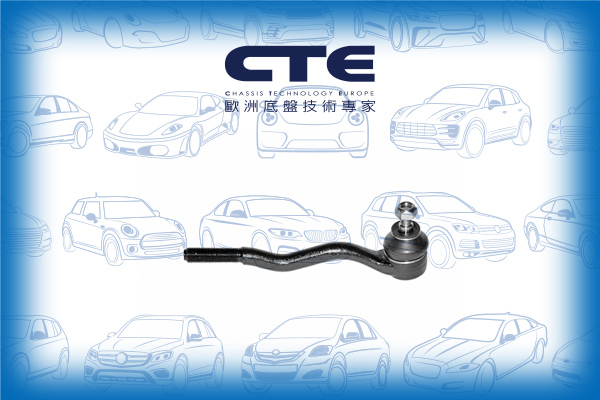

CTE09001 | FRONT AXLE LH/ RH (C= M14X1.5) | 1 126 757 32 11 1 126 757 |
| Model (Year) |
|---|
|
B3 (E30) B3 Convertible (E30) B3 Touring (E30) B6 (E30) C1 (E30) C2 (E30) C2 Convertible (E30) |
| Model (Year) |
|---|
|
3 (E30) 3 Convertible (E30) 3 Touring (E30) |
