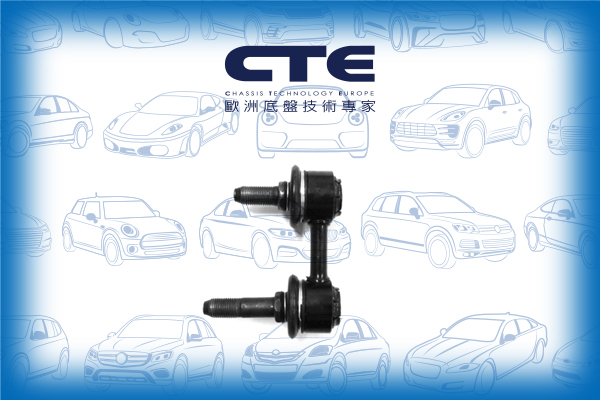

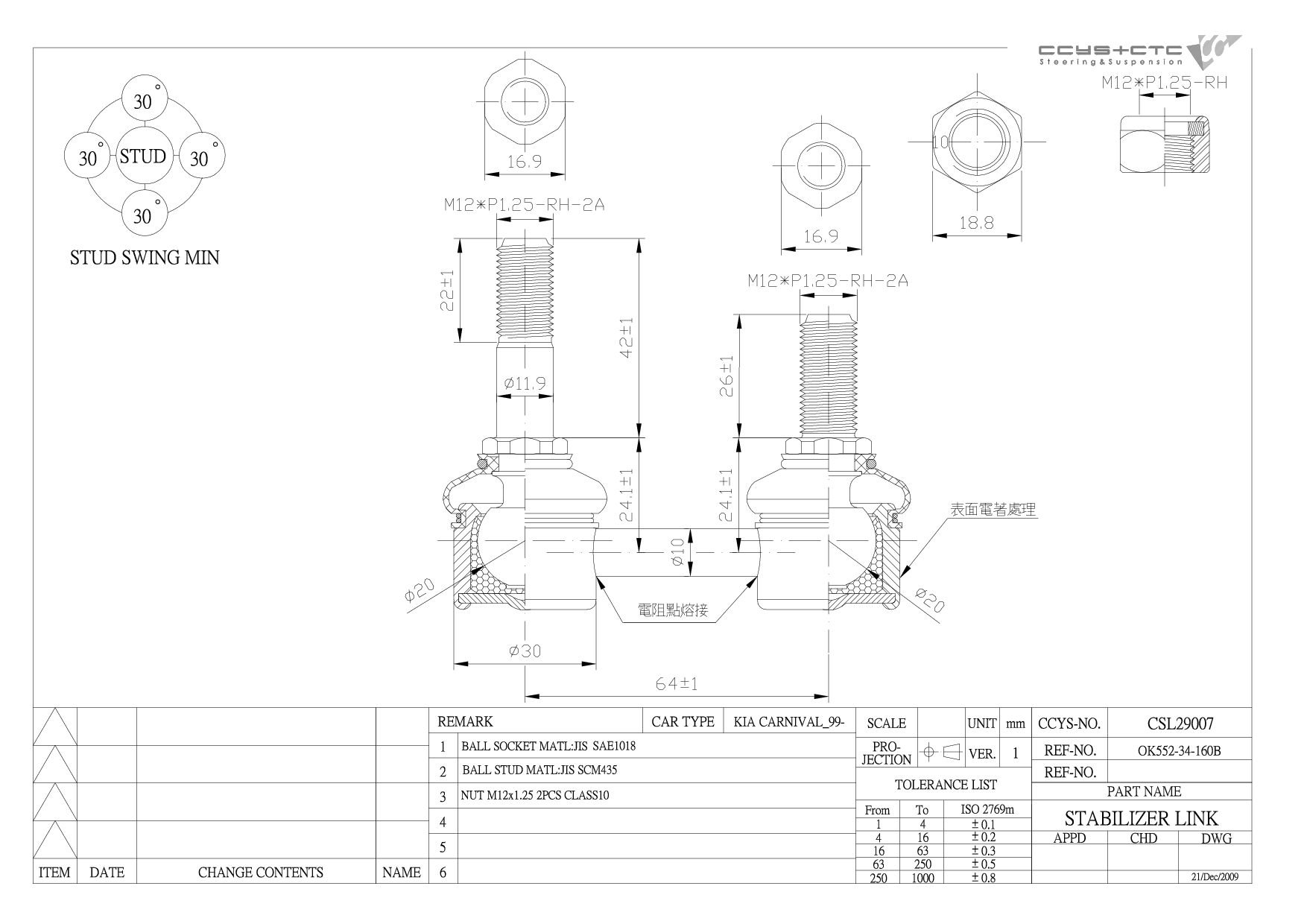

CSL29007
| Designation | Stabilizer Link |
| Position | FRONT (A= 64mm) |
| OE No. | 0K552-34-160B |
| Length | 110 mm |
| Width | 100 mm |
| Height | 100 mm |
| Net Weight | 0.33 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH29006 | FRONT LOWER ARM INNER | 54500-4D000 54500-4D100 54500-4D101 54500-4D102 54501-4D000 54501-4D100 54501-4D101 54501-4D102 54551-4D000 54551-4D001 |
|
 |

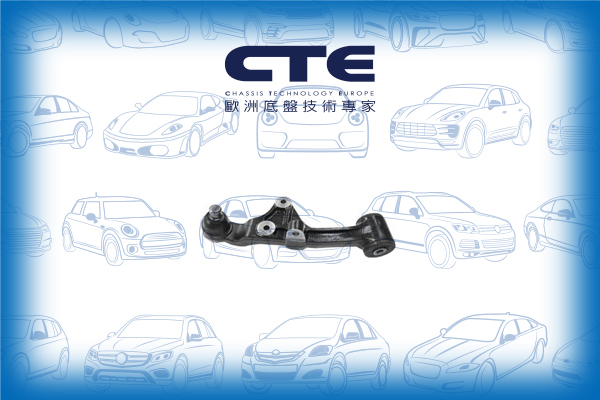

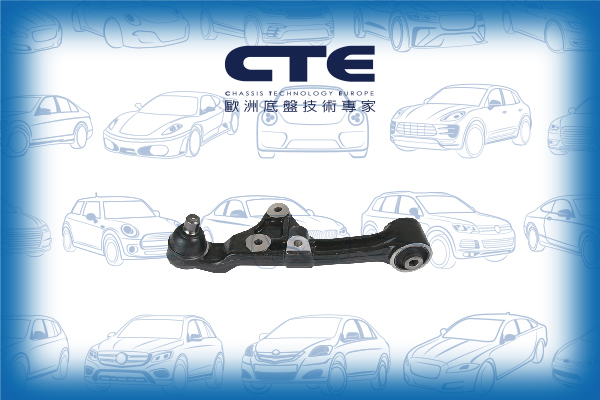

CS-2904L | FRONT LOWER LH | 0K552-34-350A 0K552-34-350B 0K552-34-350C |
|
 |

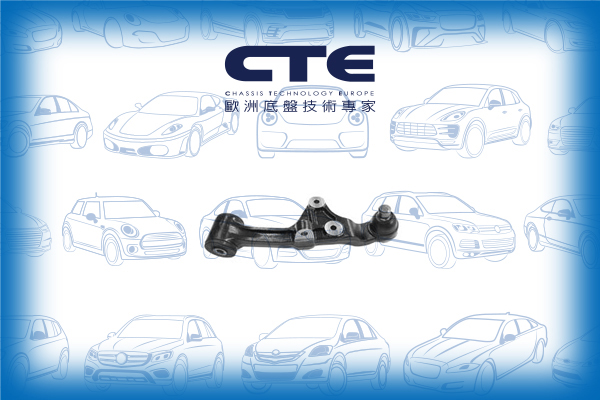

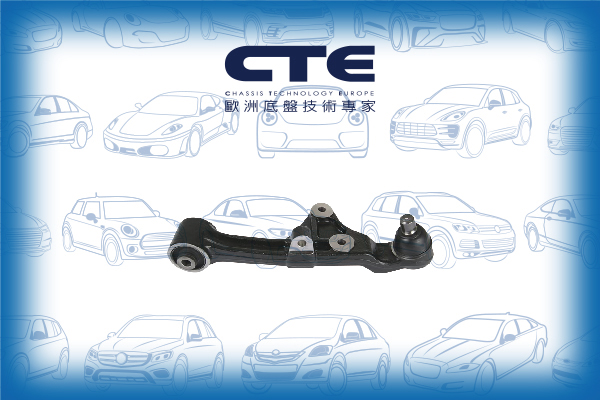

CS-2904R | FRONT LOWER RH | 0K552-34-300A 0K552-34-300B 0K552-34-300C |
|
 |
CSL29007 | FRONT (A= 64MM) | 0K552-34-160B |
| Model (Year) |
|---|
|
CARNIVAL / GRAND CARNIVAL III (VQ) | SEDONA CARNIVAL I (UP, FL) | SEDONA CARNIVAL II (GQ) | SEDONA | CARNIVAL / SEDONA |
