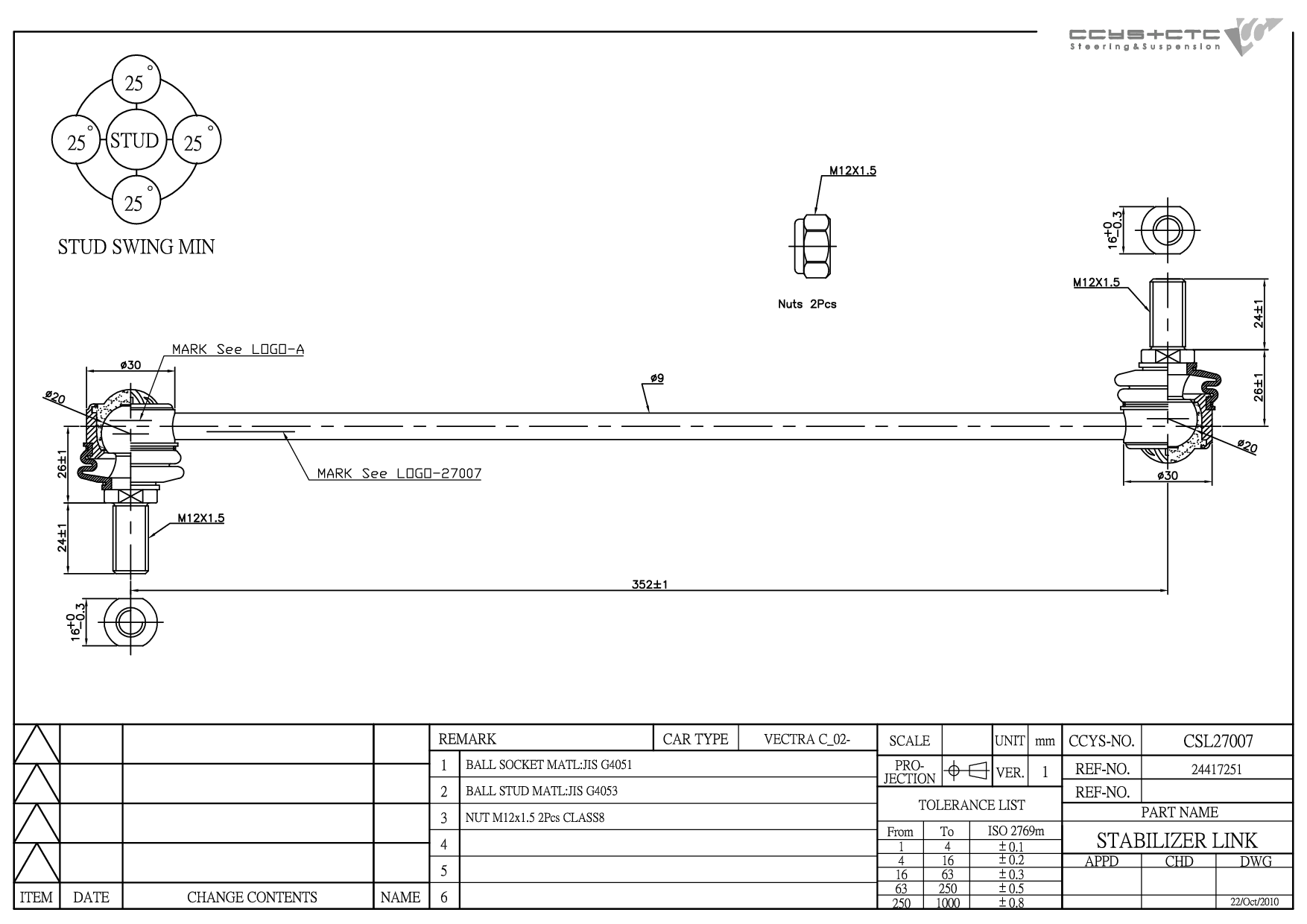

CSL27007
| Designation | Stabilizer Link |
| Position | FRONT (A= 352mm) |
| OE No. | 013237130 / 024417251 / 03 50 603 / 03 50 615 / 13237130 / 24417251 / 3 50 603 / 3 50 615 / 51741130 / 51803183 |
| Length | 388 mm |
| Width | 36 mm |
| Height | 100 mm |
| Net Weight | 0.44 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH15005 | FRONT LOWER ARM INNER | 03 52 357 03 52 364 090468636 090498738 3 52 313 3 52 323 3 52 357 352 300 352 364 4566899 4645974 90157161 90468636 90498738 9191165 |
|
 |
CRE15008 | D= M14X1.5 , C= M18X1.5 | 093175520 093187434 093191672 1603244 1603384 1603416 1609050 1609050SK 93175520 93187434 93187485 93191672 95507450 95507450SK |
|
 |

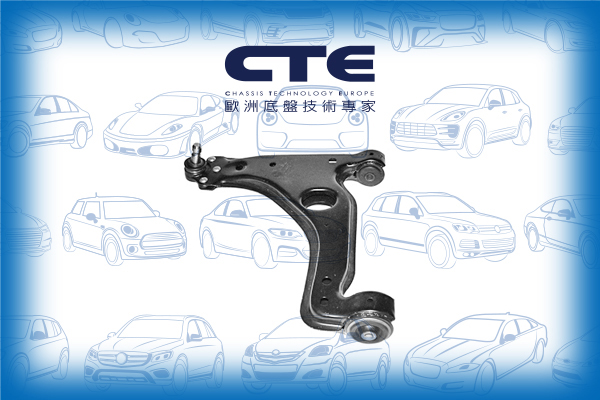

CS-1508L | FRONT LOWER LH | 24454477 5352029 |
|
 |
CS-1508R | FRONT LOWER RH | 24454478 5352030 |
|
 |
CSL27007 | FRONT (A= 352MM) | 013237130 024417251 03 50 603 03 50 615 13237130 24417251 3 50 603 3 50 615 51741130 51803183 |
|
 |
CTE27004L | FRONT AXLE LH (C= M14X1.5) | 093172254 12765896 12787821 12801423 16 03 227 5235650 5239314 77363713 93172254 |
|
 |
CTE27004R | FRONT AXLE RH (C= M14X1.5) | 093172255 12781813 12787822 12801424 16 03 228 5235668 5239322 77363712 93172255 |
| Model (Year) |
|---|
|
CROMA (194_) |
| Model (Year) |
|---|
|
SIGNUM Hatchback (Z03) VECTRA C (Z02) VECTRA C Estate (Z02) VECTRA C GTS (Z02) |
| Model (Year) |
|---|
|
9-3 (YS3F, E79, D79, D75) 9-3 Convertible (YS3F) 9-3 Estate (E50) 9-3X (YS3) |
| Model (Year) |
|---|
|
SIGNUM (Z03) VECTRA Mk II (C) (Z02) VECTRA Mk II (C) Estate (Z02) VECTRA Mk II (C) GTS (Z02) |
