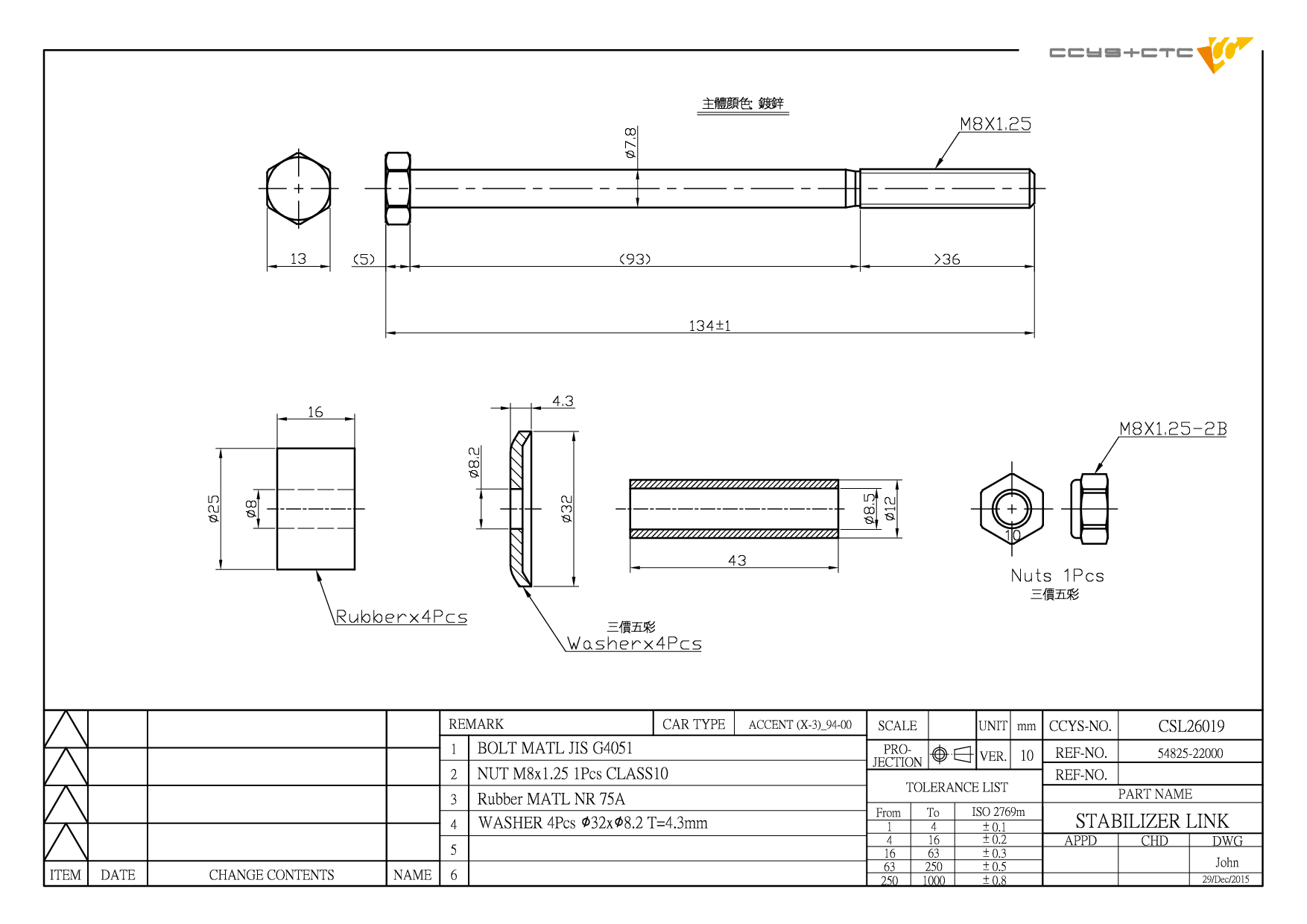

CSL26019
| Designation | Stabilizer Link |
| Position | FRONT REAR AXLE (A=135mm) |
| OE No. | 54825-22000 / 8AB2-34-100 / 8AB2-34-100A / 8AB2-34-100B |
| Length | 134 mm |
| Width | 32 mm |
| Height | 32 mm |
| Net Weight | 0.22 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03005 | FRONT LOWER ARM INNER | B210-34-470 B455-34-470 |
|
 |
CBJ03008 | FRONT LOWER LH/ RH | B455-34-550 B455345509A E016-34-550 |
|
 |
CBJ03008A | FRONT LOWER LH/ RH | B455-34-550 B455345509A E016-34-550 |
|
 |
CBJ03011A | FRONT LOWER LH/ RH | B01A-34-550 B01A-34-550A B455-34-091 B530-33-020A B530-33-020B B530-33-020E B530-33-030A B530-33-030B B530-33-030D B530-33-030E B531-33-020A B531-33-020B B531-33-020D B531-33-030A B531-33-030B B531-33-030D B7DA34550 BTA34550 BTDA-34-550 BTDA-34-5509A BTDA |
|
 |
CRE03018 | D= M14X1.5 , C= M18X1.5 | B455-32-25X B456-32-25X GJ21-32-240 GJ22-32-240 |
|
 |
CRE03019 | D= M12X1.25 , C= M16X1.0 | B455-32-24X BS06-32-240 F1CZ-3280A |
|
 |
CRE03023 | D= M12X1.25 , C= M16X1.0 | B455-32-25X B456-32-25X |
|
 |
CS-304L | FRONT LOWER LH | B455-34-350 B455-34-350B B455-34-350E B530-34-350A BR70-34-350B BR74-34-350B BR74-34-350E BS06-34-350C |
|
 |
CS-304R | FRONT LOWER RH | B455-34-300 B455-34-300B B455-34-300E B530-34-300A BR70-34-300B BR74-34-300B BR74-34-300E BS06-34-300C |
|
 |
CS-361 | REAR LOWER LH/ RH | 1223951 1231454 1253733 1335249 1548460 30639917 30666105 31277584 3M515K652AA 3M515K652AB 3M515K652AC 4M515K652CA 4M515K652CB 8646157 8646158 BBP3-28-300A BBP3-28-300B BBP3-28-300C BP4K-28-300A BP4K-28-300B BP4K-28-300C BP4K-28-300D BP4K-28-300E C236-28- |
|
 |
CSL03017 | FRONT (A= 190MM) | B26R-34-170 |
|
 |
CSL26019 | FRONT REAR AXLE (A=135MM) | 54825-22000 8AB2-34-100 8AB2-34-100A 8AB2-34-100B |
|
 |
CTE03007 | FRONT AXLE LH/ RH (C= M12X1.25) | 8AB2-32-280 B455-32-280 |
| Model (Year) |
|---|
|
ACCENT I (X-3) | PONY | EXCEL ACCENT Saloon (X-3) | VERNA | PONY | EXCEL | BIMANTARA CAKRA |
| Model (Year) |
|---|
|
323 C IV (BG) | FAMILIA 323 F IV (BG) | 323 ASTINA | FAMILIAASTINA 323 II Hatchback (BD) | FAMILIA 323 II Saloon (BD) | GLC | FAMILIA 323 III Hatchback (BF) | FAMILIA 323 III Saloon (BF) | FAMILIA 323 III Station Wagon (BW) | FAMILIA 323 S IV (BG) | PROTEGE | FAMILIA |
