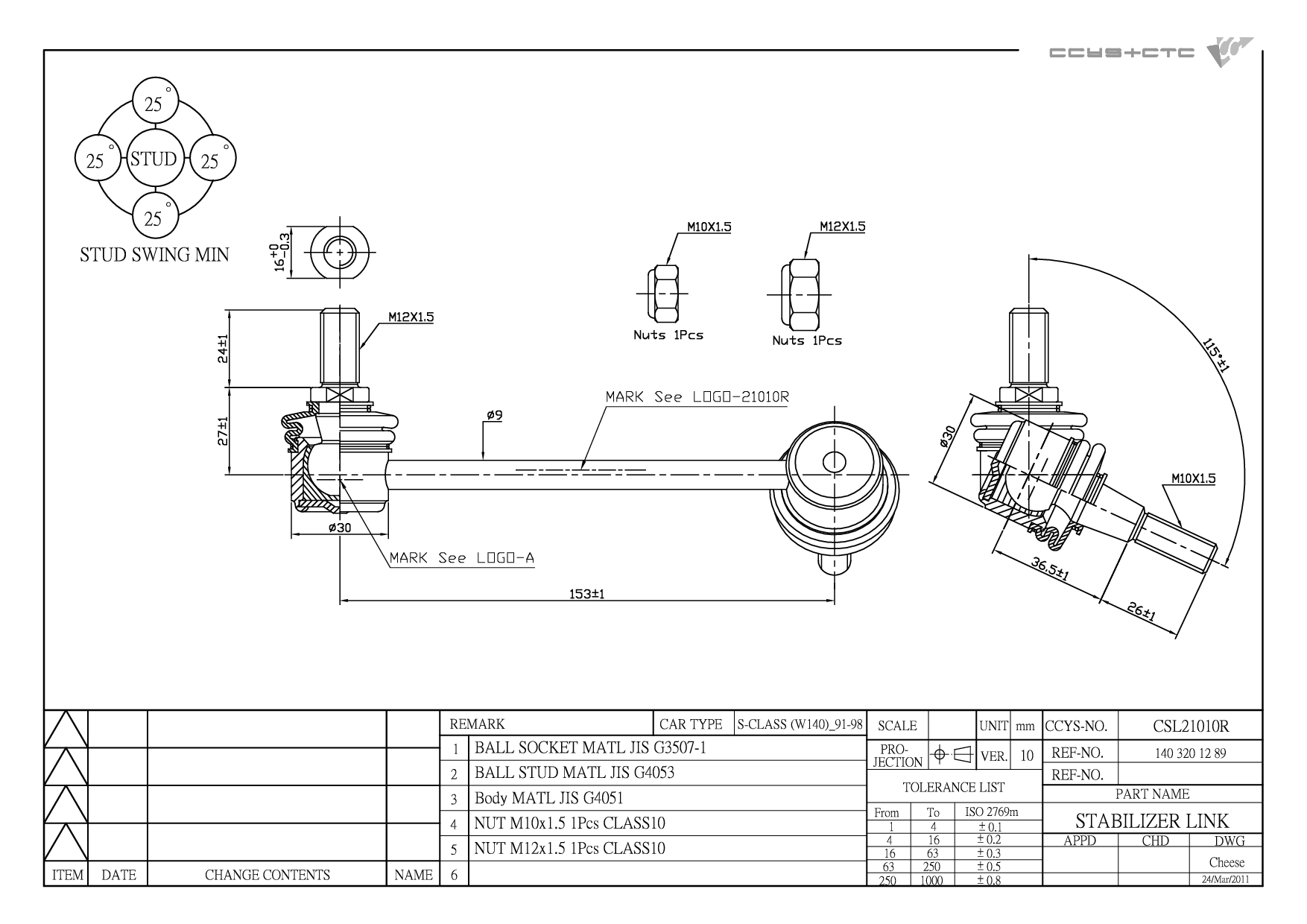

CSL21010R
| Designation | Stabilizer Link |
| Position | FRONT RH (A= 153mm) |
| OE No. | 140 320 12 89 / A140 320 12 89 |
| Length | 190 mm |
| Width | 76.3 mm |
| Height | 81.5 mm |
| Net Weight | 0.36 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21016 | FRONT UPPER ARM INNER | 140 333 17 14 A 140 333 17 14 |
|
 |
CS-2109L | FRONT UPPER LH | 140 330 54 07 140 330 58 07 140 330 76 07 A140 330 54 07 A140 330 58 07 A140 330 76 07 |
|
 |
CS-2109R | FRONT UPPER RH | 140 330 55 07 140 330 59 07 140 330 77 07 A140 330 55 07 A140 330 59 07 A140 330 77 07 |
|
 |
CSL21010L | FRONT LH (A= 153MM) | 140 320 11 89 A140 320 11 89 |
|
 |
CSL21010R | FRONT RH (A= 153MM) | 140 320 12 89 A140 320 12 89 |
|
 |
CSL21011 | REAR (A= 230MM) | 140 320 08 89 140 320 35 89 A140 320 08 89 A140 320 35 89 |
|
 |
CSL21013 | STRUT ARM (A= 321MM) | 140 350 36 06 A140 350 36 06 |
|
 |
CSL21014 | STRUT ARM (A= 393.4MM) | 140 350 35 06 A140 350 35 06 |
|
 |
CSL21015 | STRUT ARM (A= 290.5MM) | 140 350 18 53 140 350 24 53 140 350 30 53 140 350 31 53 140 350 34 53 A 140 350 18 53 A 140 350 24 53 A 140 350 30 53 A 140 350 31 53 |
|
 |
CSL21016 | STRUT ARM (A= 431MM) | 140 350 34 06 220 350 26 06 A140 350 34 06 A220 350 26 06 |
| Model (Year) |
|---|
|
S-CLASS (W140) S-CLASS Coupe (C140) | CL-CLASS |
