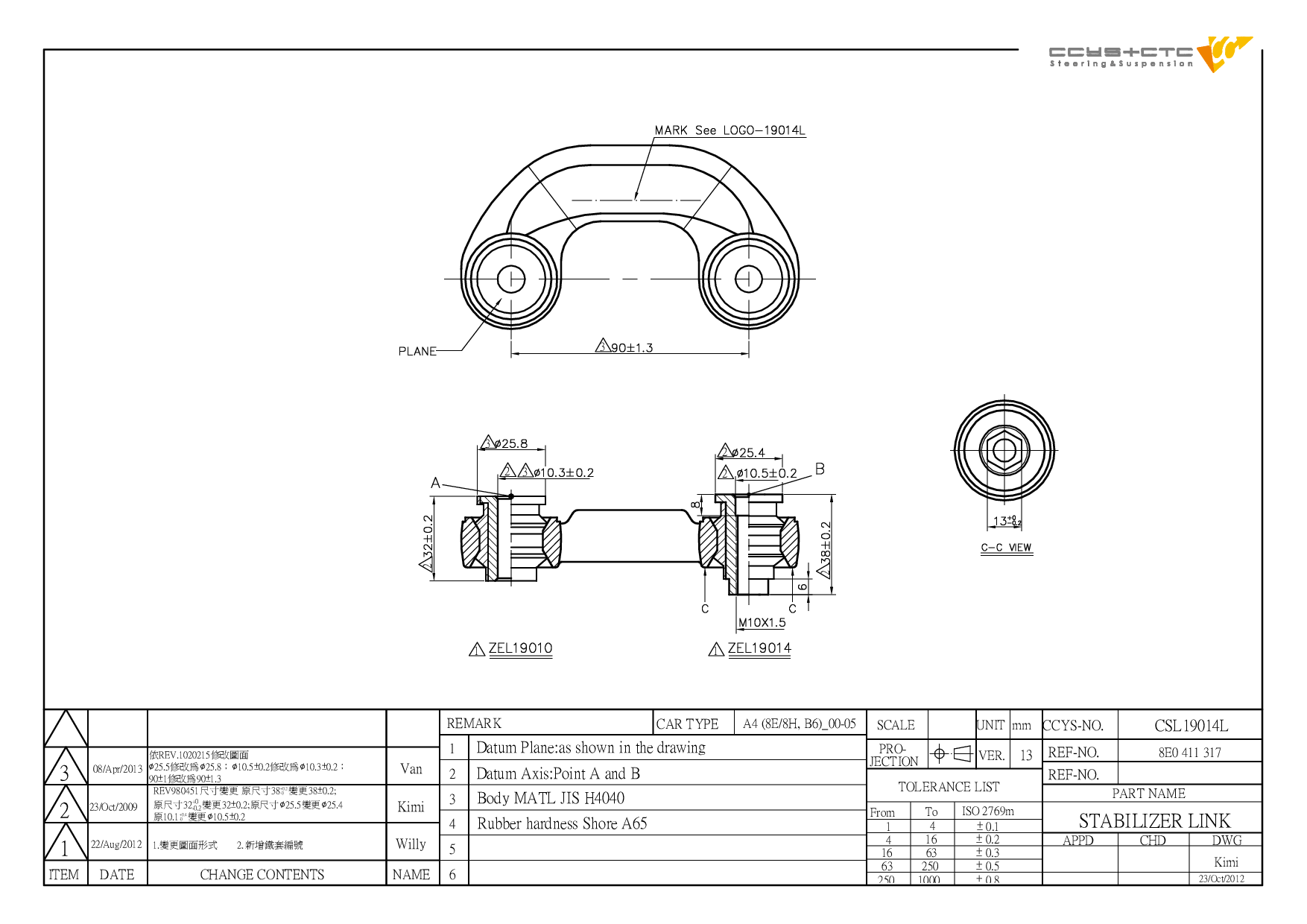

CSL19014L
| Designation | Stabilizer Link |
| Position | FRONT LH (A= 90mm) |
| OE No. | 8E0 411 317 |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19017 | FRONT LOWER ARM INNER | 4F0 407 183A 4F0 407 183B 4F0 407 183C 4F0 407 183E |
|
 |
CS-1921L | FRONT LOWER LH | 8E0 407 693AA 8E0 407 693AC 8E0 407 693AD 8E0 407 693AF 8E0 407 693AJ 8E0 407 693AK 8E0 407 693AL 8E0 407 693AM 8E0 407 693N 8E0 407 693T |
|
 |
CS-1921R | FRONT LOWER RH | 8E0 407 694AA 8E0 407 694AC 8E0 407 694AD 8E0 407 694AF 8E0 407 694AJ 8E0 407 694AK 8E0 407 694AL 8E0 407 694AM 8E0 407 694N 8E0 407 694T |
|
 |
CS-1922L | FRONT UPPER LH | 8D0 407 509 8D0 407 509A 8D0 407 509F 8E0 407 509C 8E0 407 509P |
|
 |
CS-1922R | FRONT UPPER RH | 8D0 407 510 8D0 407 510A 8D0 407 510F 8E0 407 510C 8E0 407 510P |
|
 |
CS-1923L | FRONT UPPER LH | 8D0 407 505D 8D0 407 505E 8D0 407 505L 8E0 407 505C 8E0 407 505M 8E0 407 505P |
|
 |
CS-1923R | FRONT UPPER RH | 8D0 407 506D 8D0 407 506E 8D0 407 506L 8E0 407 506C 8E0 407 506M 8E0 407 506P |
|
 |
CS-1929 | REAR AXLE LH/ RH | 8E0 501 529F 8E0 501 529G 8E0 501 529K 8E0 501 529P |
|
 |
CSL19014L | FRONT LH (A= 90MM) | 8E0 411 317 |
|
 |
CSL19014LA | FRONT LH (A= 90MM) | 8E0 411 317 |
|
 |
CSL19014R | FRONT RH (A= 90MM) | 8E0 411 318 |
|
 |
CSL19014RA | FRONT RH (A= 90MM) | 8E0 411 318 |
|
 |
CTE19002 | FRONT AXLE LH/ RH (C= M14X1.5) | 4B0 419 811G 4B0 419 811Q 4D0 419 811J 4F0 419 811C 4F0 419 811D 4F0 498 811 4F0 498 811A 4F0 498 811A SK 8B0 419 811G 8E0 419 811 |
| Model (Year) |
|---|
|
A4 B6 (8E2) | A4 / S4 A4 B6 Avant (8E5) | A4 / S4 A4 B6 Convertible (8H7) | A4 / S4 A4 B7 (8EC) | A4 / S4 A4 B7 Avant (8ED) | A4 / S4 A4 B7 Convertible (8HE) |
| Model (Year) |
|---|
|
A4 B6 (8E2) A4 B7 (8YC) |
| Model (Year) |
|---|
|
EXEO (3R2) EXEO ST (3R5) |
