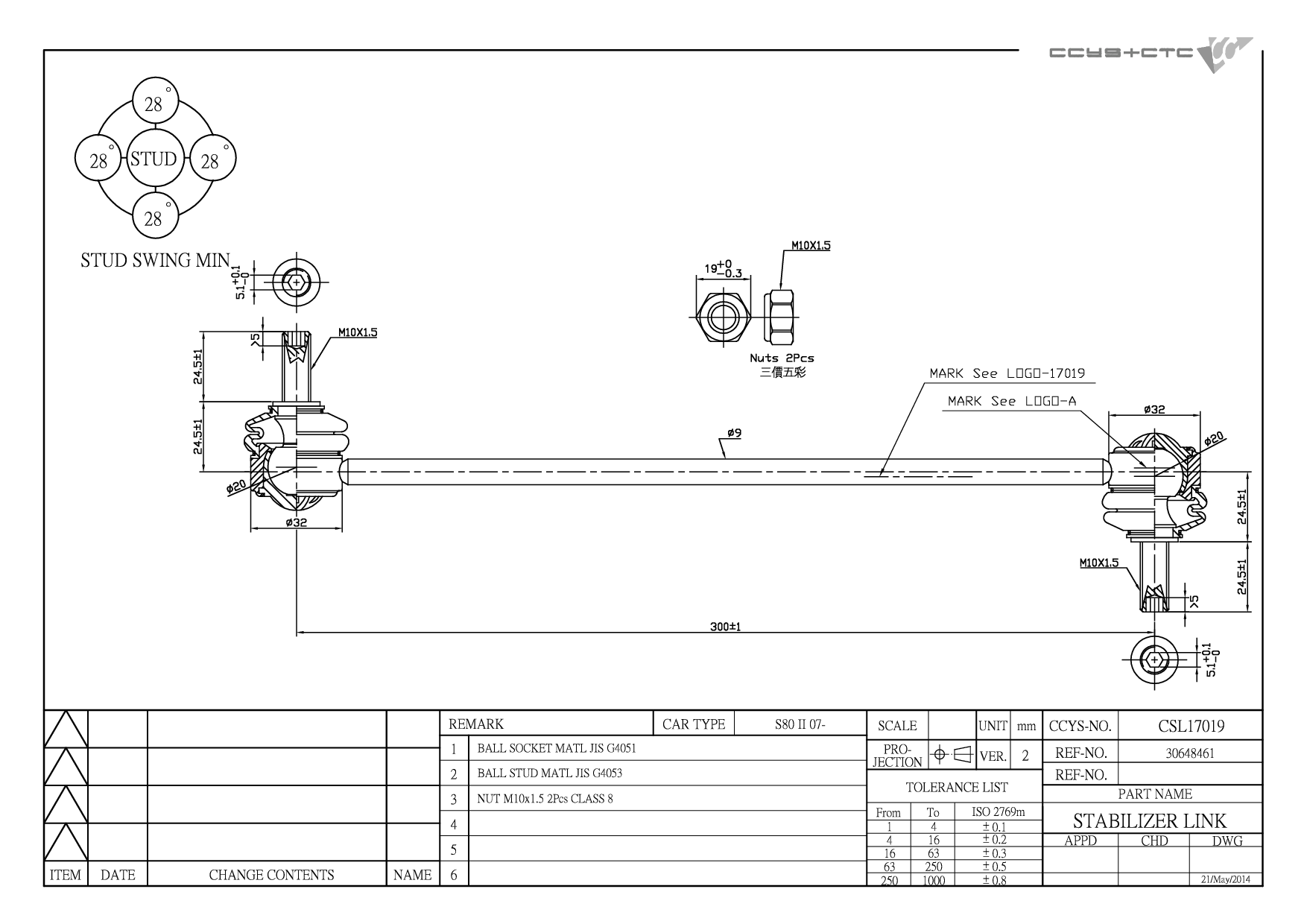

CSL17019
| Designation | Stabilizer Link |
| Position | FRONT (A= 300mm) |
| OE No. | 1377849 / 1433294 / 30648461 / 31658608 / 6G9N-3B438-BA |
| Length | 336.2 mm |
| Width | 36.2 mm |
| Height | 98 mm |
| Net Weight | 0.38 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03071 | REAR ARM | 6G91-5K743-VA 6G91-5K743-XA |
|
 |
CRE17028 | D= M18X1.5 , C= M16X1.5 | 1433271 1596574 30776250 31280002 31280658 31451035 6G913280AA 6G913280AB LR016869 |
|
 |
CS-353L | FRONT LOWER LH | 1377848 1385594 1403410 1419815 1426876 1435747 1460693 1466188 1469026 1507182 30671636 31200448 31200563 31212782 31277343 31317661 6G9N-3A053-DA 6G9N-3A053-DB 6G9N-3A053-DC 6G9N-3A053-DD 6G9N-3A053-DE 6G9N-3A053-DF 6G9N-3A053-DG 6G9N-3A053-DH 7G9N 3A05 |
|
 |
CS-353R | FRONT LOWER RH | 1377846 1385593 1403408 1419814 1426875 1435745 1458773 1466186 1469024 1507181 30671637 31200449 31200564 31212781 31277344 31317662 6G9N-3A052-DA 6G9N-3A052-DB 6G9N-3A052-DC 6G9N-3A052-DD 6G9N-3A052-DE 6G9N-3A052-DF 6G9N-3A052-DG 6G9N-3A052-DH 7G9N 3A05 |
|
 |
CS-356 | REAR LOWER LH/ RH | 1377449 1381443 1381843 1387628 1426770 1426770 S1 30666558 30666559 30676099 30676100 30736864 30736864 S1 30760069 31262127 31262127 S1 31262128 31262439 31262930 31262930 S1 31262931 31340354 6G91-5K743-VA 6G91-5K743-XA 6G91-5K743-XAA 6G91-5K743-XAB 6G |
|
 |
CSL17019 | FRONT (A= 300MM) | 1377849 1433294 30648461 31658608 6G9N-3B438-BA |
| Model (Year) |
|---|
|
GALAXY II (WA6) GALAXY MK II VAN (WA6) MONDEO IV (BA7) MONDEO IV Saloon (BA7) MONDEO IV Turnier (BA7) MONDEO IV Van S-MAX (WA6) S-MAX VAN (WA6) |
| Model (Year) |
|---|
|
MONDEO / ZHISHENG S-MAX (BWS) |
| Model (Year) |
|---|
|
S60 II (134) S60 II Cross Country (134) S80 II (124) V60 I (155) V60 I Cross Country (157) V60 I Estate Van (155) V70 III (135) V70 III Estate Van (135) XC60 I SUV (156) XC60 I VAN (156) XC70 II (136) XC70 II VAN (136) |
