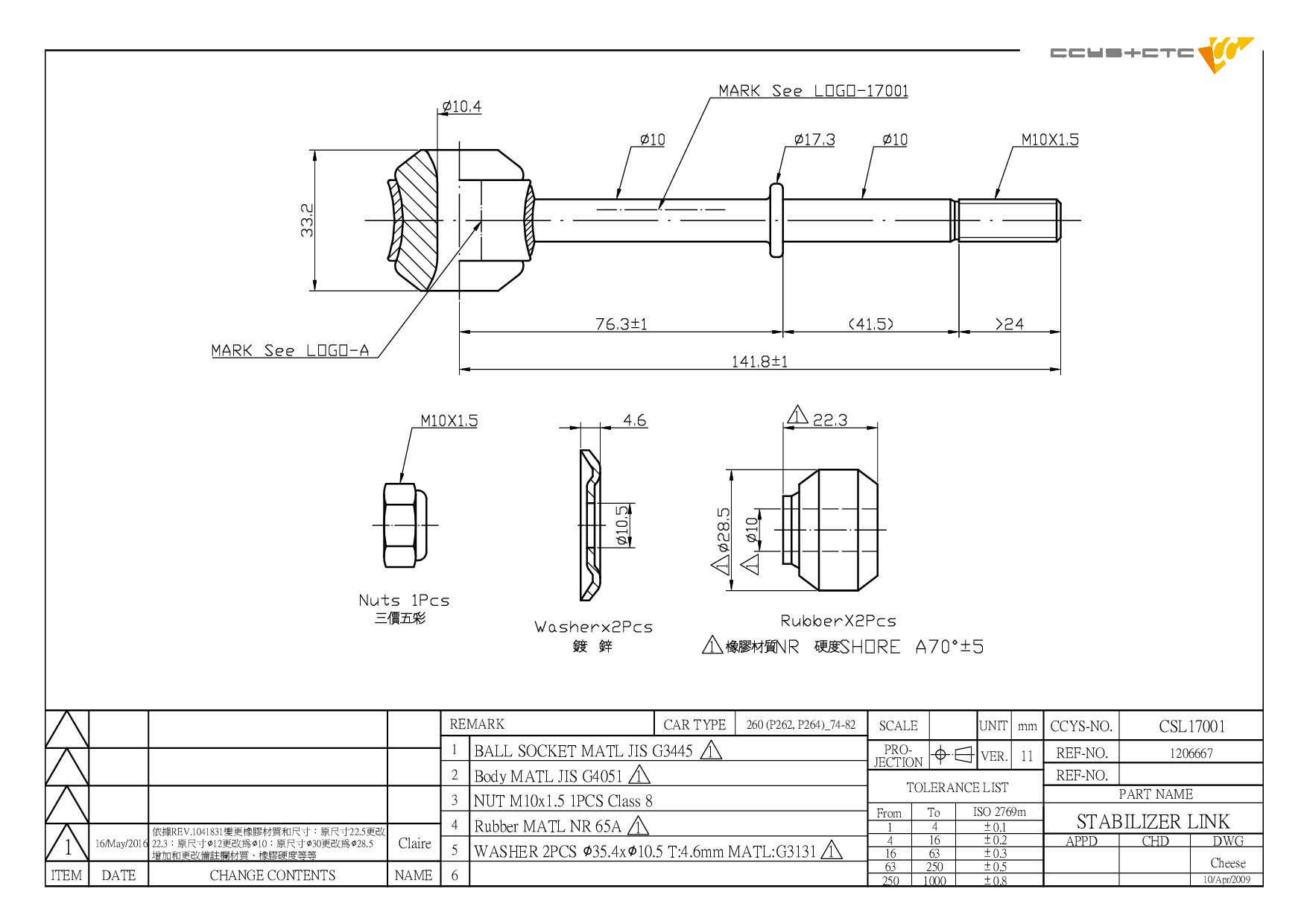

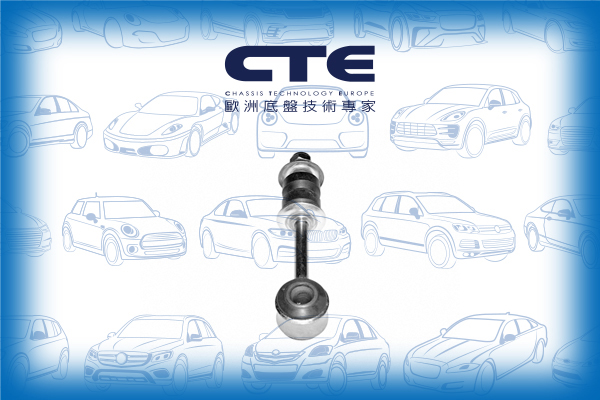

CSL17001
| Designation | Stabilizer Link |
| Position | FRONT (A= 141.8mm) |
| OE No. | 1206667 / 1206667 S1 |
| Length | 158.5 mm |
| Width | 33.4 mm |
| Height | 33.2 mm |
| Net Weight | 0.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

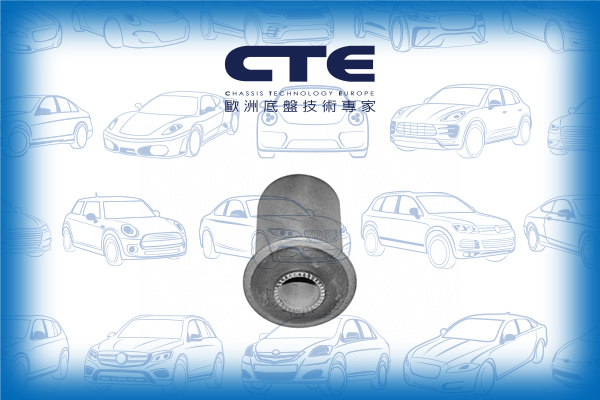

CBH17003 | FRONT LOWER ARM REAR | 1205821 1205825 |
|
 |

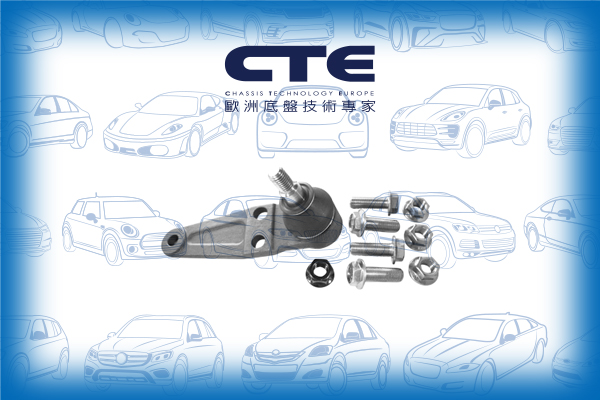

CBJ17001A | FRONT LOWER LH/ RH | 1205811 1273136 1330819 274117 |
|
 |

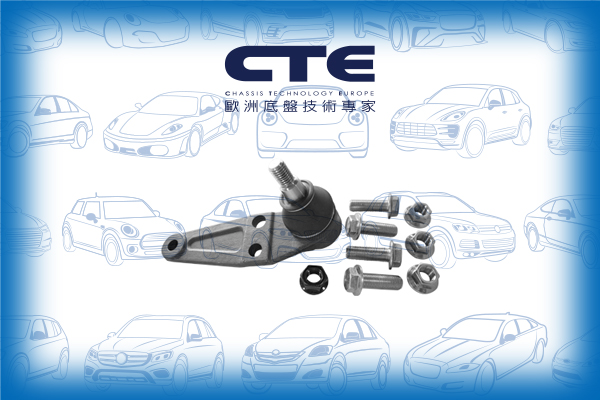

CBJ17002A | FRONT LOWER RH | 1273140 1330820 274119 |
|
 |

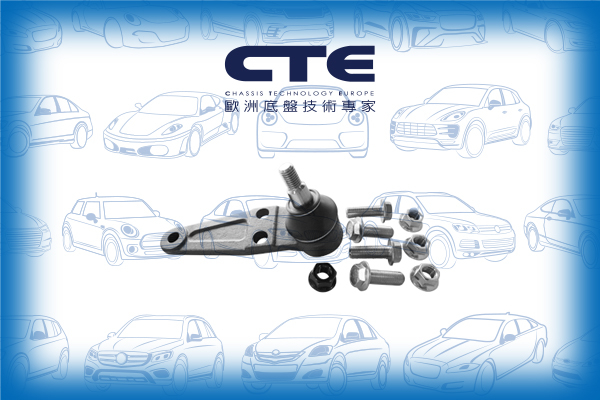

CBJ17003A | FRONT LOWER LH | 1228799 1273139 1273143 1273144 1330821 274118 2741189 |
|
 |

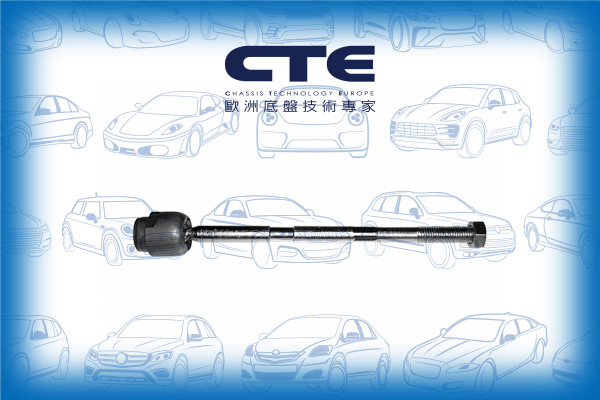

CRE17003 | D= M14X2.0 , C= M20X1.5 | 012729471 1272947 |
|
 |

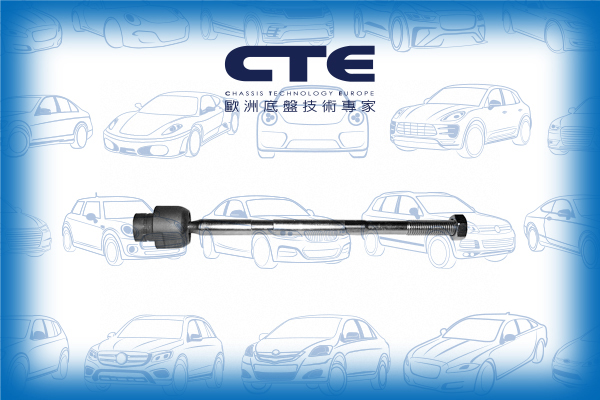

CRE17004 | D= M14X2.0 , C= M16X1.5 | 1205659 |
|
 |
CRE17014 | D= M14X2.0 , C= M14X1.5 | 1387451 9140505 |
|
 |

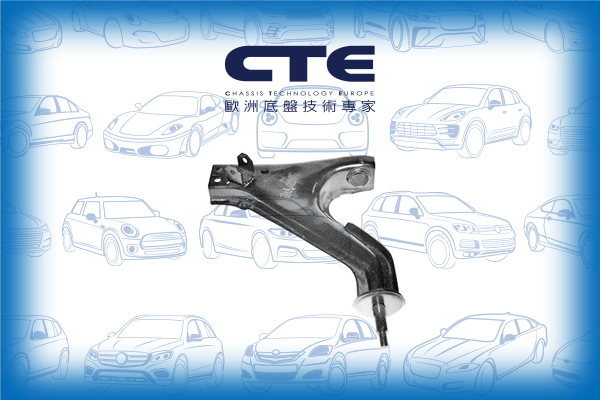

CS-1701L | FRONT LOWER LH | 1205680 1229923 |
|
 |

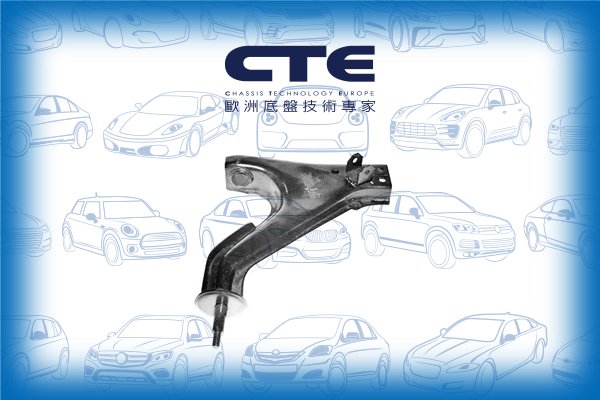

CS-1701R | FRONT LOWER RH | 1205686 1229925 |
|
 |
CSL17001 | FRONT (A= 141.8MM) | 1206667 1206667 S1 |
|
 |
CTE17001 | FRONT AXLE LH/ RH (C= M14X2.0) | 1205658 1271701 1329675 271701 2717015 3516944 35169440 |
| Model (Year) |
|---|
|
240 (P242, P244) 240 Kombi (P245) 260 (P262, P264) 260 Estate (P265) |
