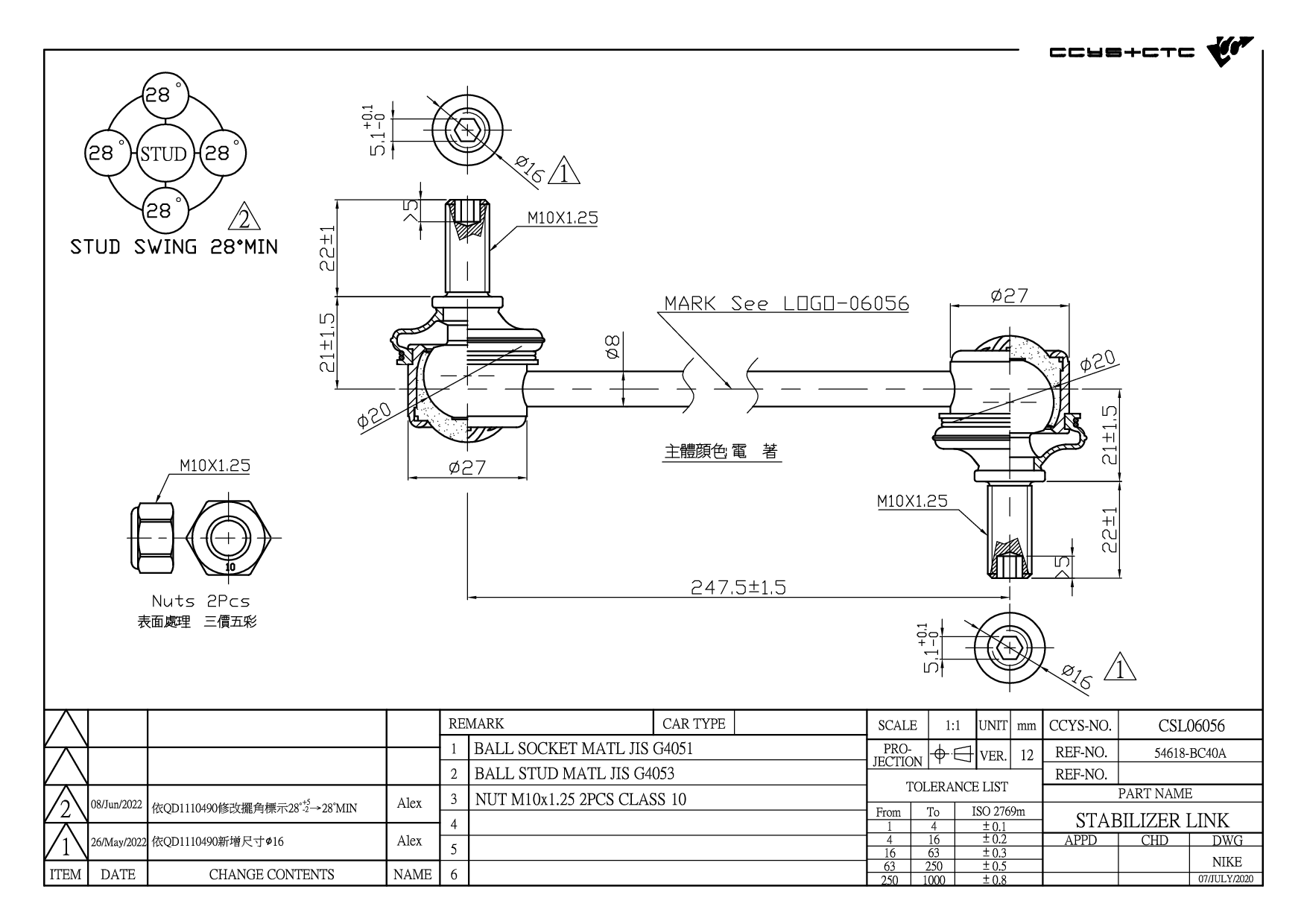

CSL06056
| Designation | Stabilizer Link |
| Position | FRONT (A= 247.5mm) |
| OE No. | 54611-BH01A / 54618-9U004 / 54618-AX600 / 54618-BC40A / 55 11 079 16R / 55 11 081 47R / 82 00 127 308 / 82 00 605 381 / 82 01 079 463 |
| Length | 283 mm |
| Width | 90 mm |
| Height | 37 mm |
| Net Weight | 0.27 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06049 | FRONT LOWER ARM INNER | 54560-AX600 82 00 183 569 850040613 |
|
 |

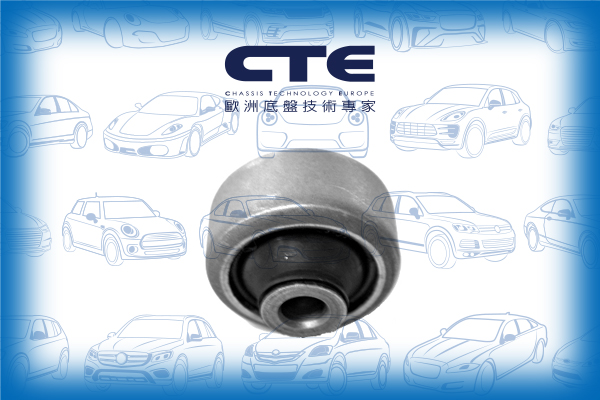

CBH10010 | FRONT LOWER ARM REAR | 54 50 461 62R 54 50 468 17R 54 50 485 06R 54 50 499 68R 54 50 503 99R 54 50 505 10R 54 50 523 54R 54 50 557 11R 62 5B 422 88R 82 00 041 166 |
|
 |

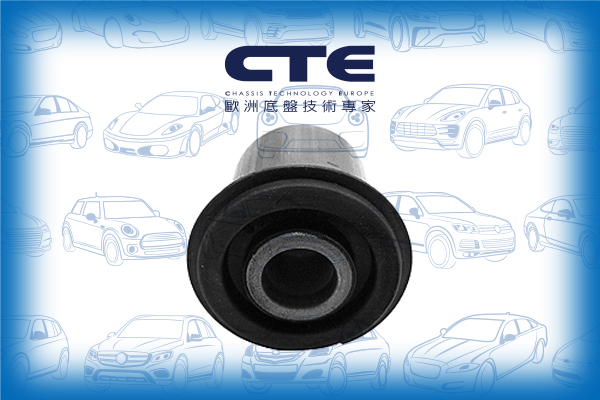

CBH10011 | FRONT LOWER ARM INNER | 82 00 242 025 |
|
 |

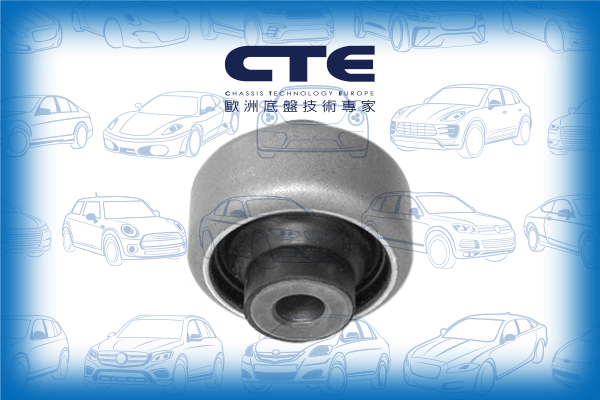

CBH10012 | FRONT LOWER ARM REAR | ||
 |

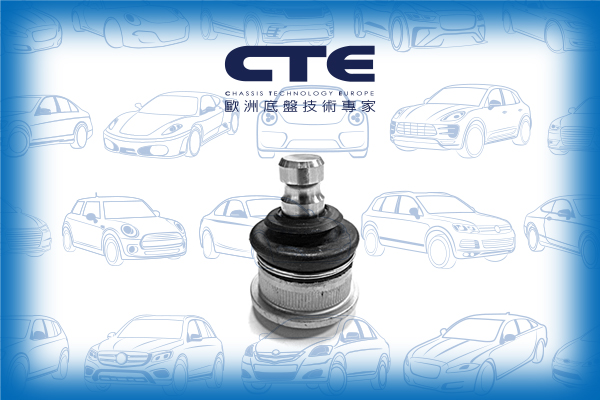

CBJ10005 | FRONT LOWER LH/ RH | 401604793R 82 00 298 455S 82 00 298 760 82 00 298 761 |
|
 |

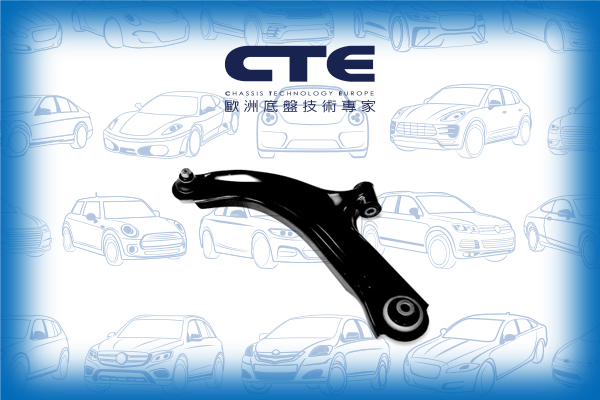

CS-1008L | FRONT LOWER LH | 7474016 82 00 346 941 82 00 615 057 82 00 744 091 |
|
 |

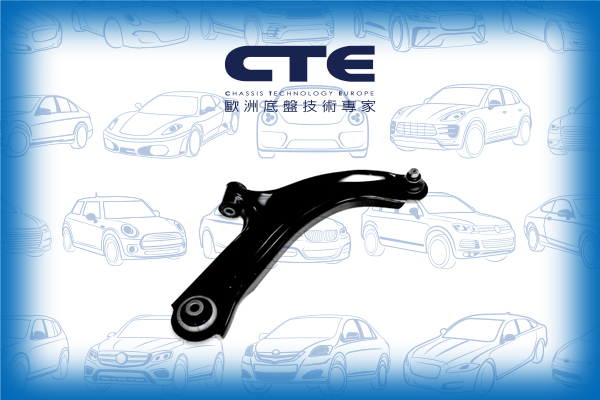

CS-1008R | FRONT LOWER RH | 7474015 82 00 346 942 82 00 615 058 82 00 744 092 |
|
 |

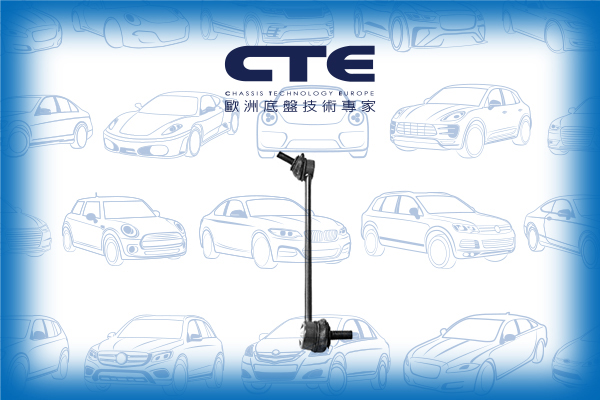

CSL06056 | FRONT (A= 247.5MM) | 54611-BH01A 54618-9U004 54618-AX600 54618-BC40A 55 11 079 16R 55 11 081 47R 82 00 127 308 82 00 605 381 82 01 079 463 |
| Model (Year) |
|---|
|
MICRA C+C III (K12) | MARCH MICRA III (K12) | MARCH NOTE (E11, NE11) TIIDA Hatchback (C11) | LATIO | VERSA TIIDA Saloon (SC11) | LATIO | TIIDA LATIO |
| Model (Year) |
|---|
|
CAPTUR I (J5_, H5_) CLIO III (BR0/1, CR0/1) | EURO CLIO | LUTECIA CLIO III Grandtour (KR0/1_) CLIO III Hatchback Van (SB_, SR_) CLIO IV (BH_) | LUTECIA CLIO IV Estate Van (KH_) CLIO IV Grandtour (KH_) CLIO IV Hatchback Van (BH_) MODUS / GRAND MODUS (F/JP0_) ZOE (BFM_) |
