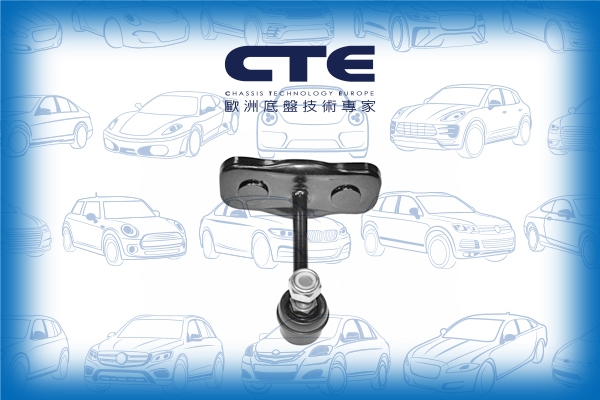

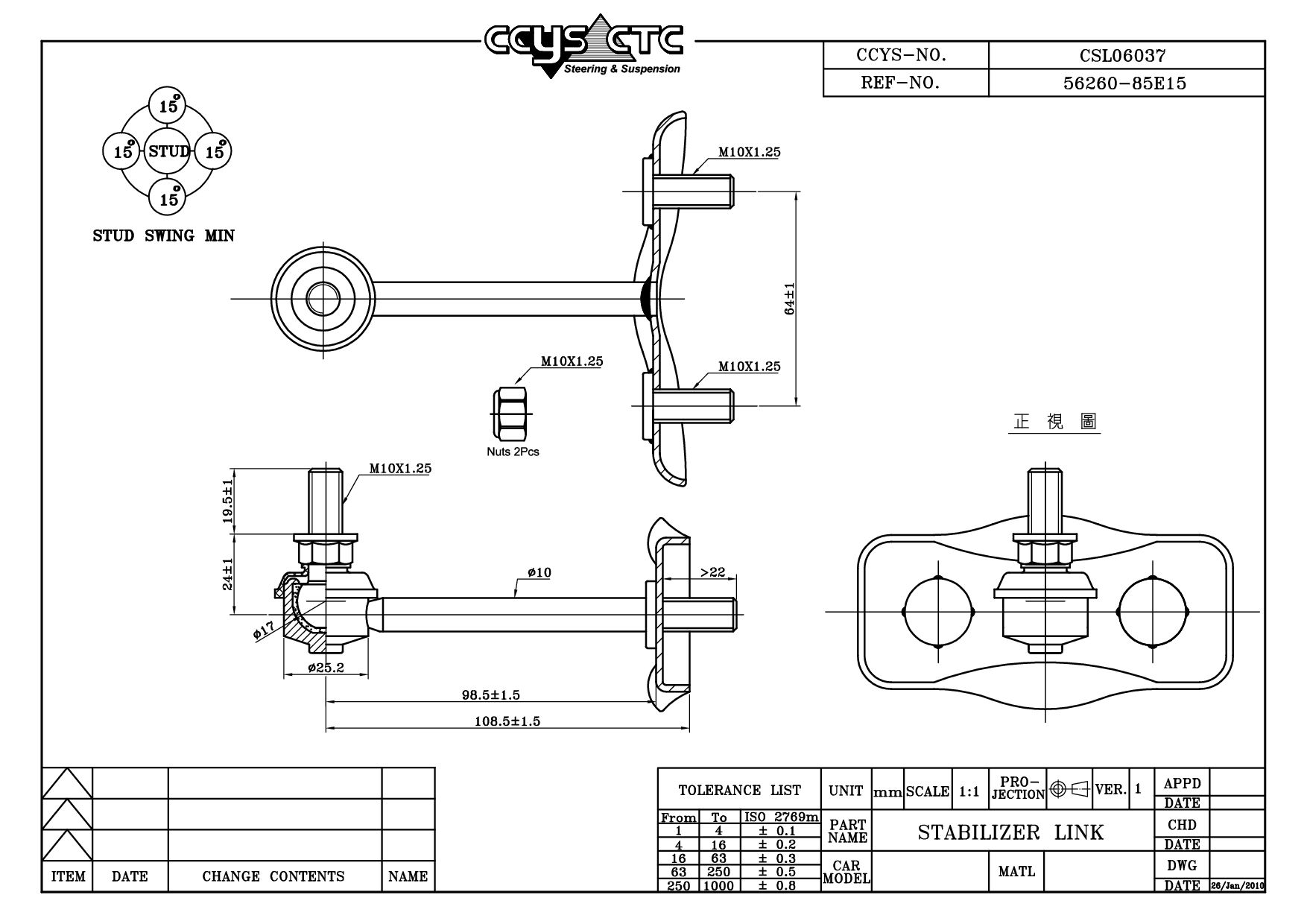

CSL06037
| Designation | Stabilizer Link |
| Position | REAR (A= 108.5mm) |
| OE No. | 56260-85E15 |
| Length | 137.8 mm |
| Width | 112 mm |
| Height | 71.9 mm |
| Net Weight | 0.32 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06017 | FRONT LOWER ARM INNER | 54590-01E00 54590-85E00 |
|
 |

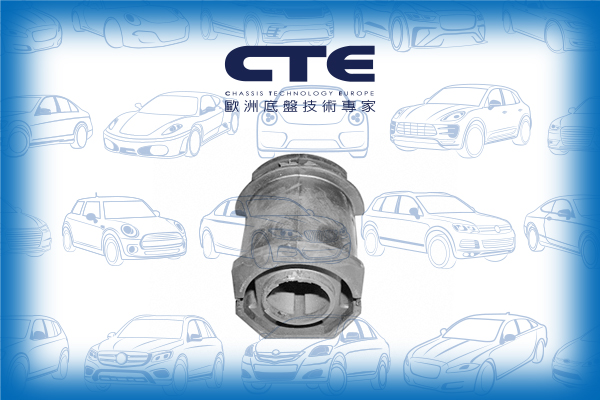

CBH06026 | FRONT LOWER ARM REAR | ||
 |
CBJ06005 | FRONT LOWER LH/ RH | 1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600 |
|
 |

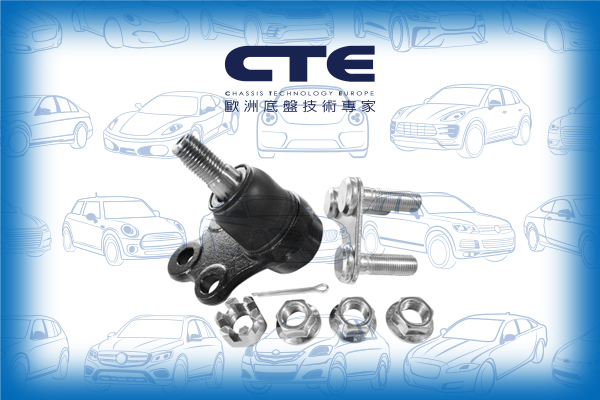

CBJ06017A | FRONT LOWER LH/ RH | 40160-01E00 40160-01E25 40160-51E00 40160-85E00 40160-J8000 40160-Q9000 40160-Q9005 |
|
 |
CRE06026 | D= M14X1.5 , C= M16X1.0 | 48521-71V06 |
|
 |

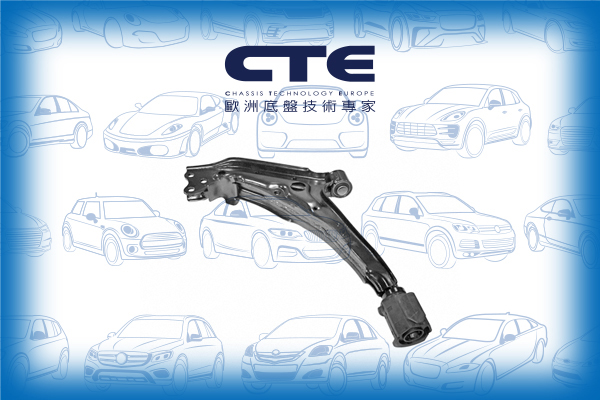

CS-627L | FRONT LOWER LH | 54501-85E01 54501-85E10 54501-85E11 |
|
 |
CS-627R | FRONT LOWER RH | 54500-85E01 54500-85E10 54500-85E11 |
|
 |

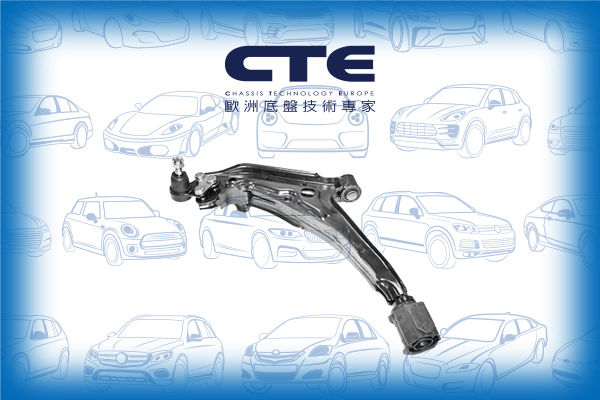

CS-632L | FRONT LOWER LH | 54501-85E01 54501-85E10 54501-85E11 CS-627L+CBJ06017A |
|
 |

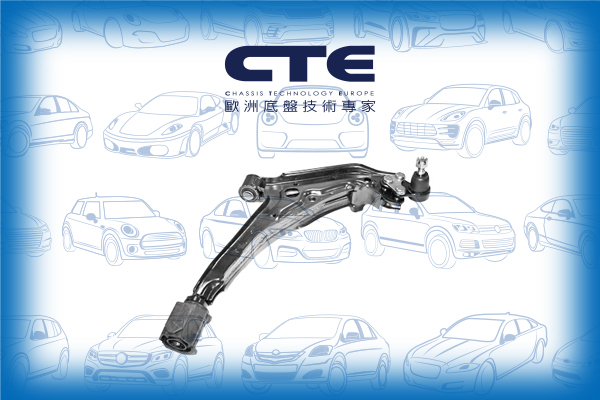

CS-632R | FRONT LOWER RH | 54500-85E01 54500-85E10 54500-85E11 CS-627R+CBJ06017A |
|
 |
CSL06037 | REAR (A= 108.5MM) | 56260-85E15 |
| Model (Year) |
|---|
|
MAXIMA III (J30) |
