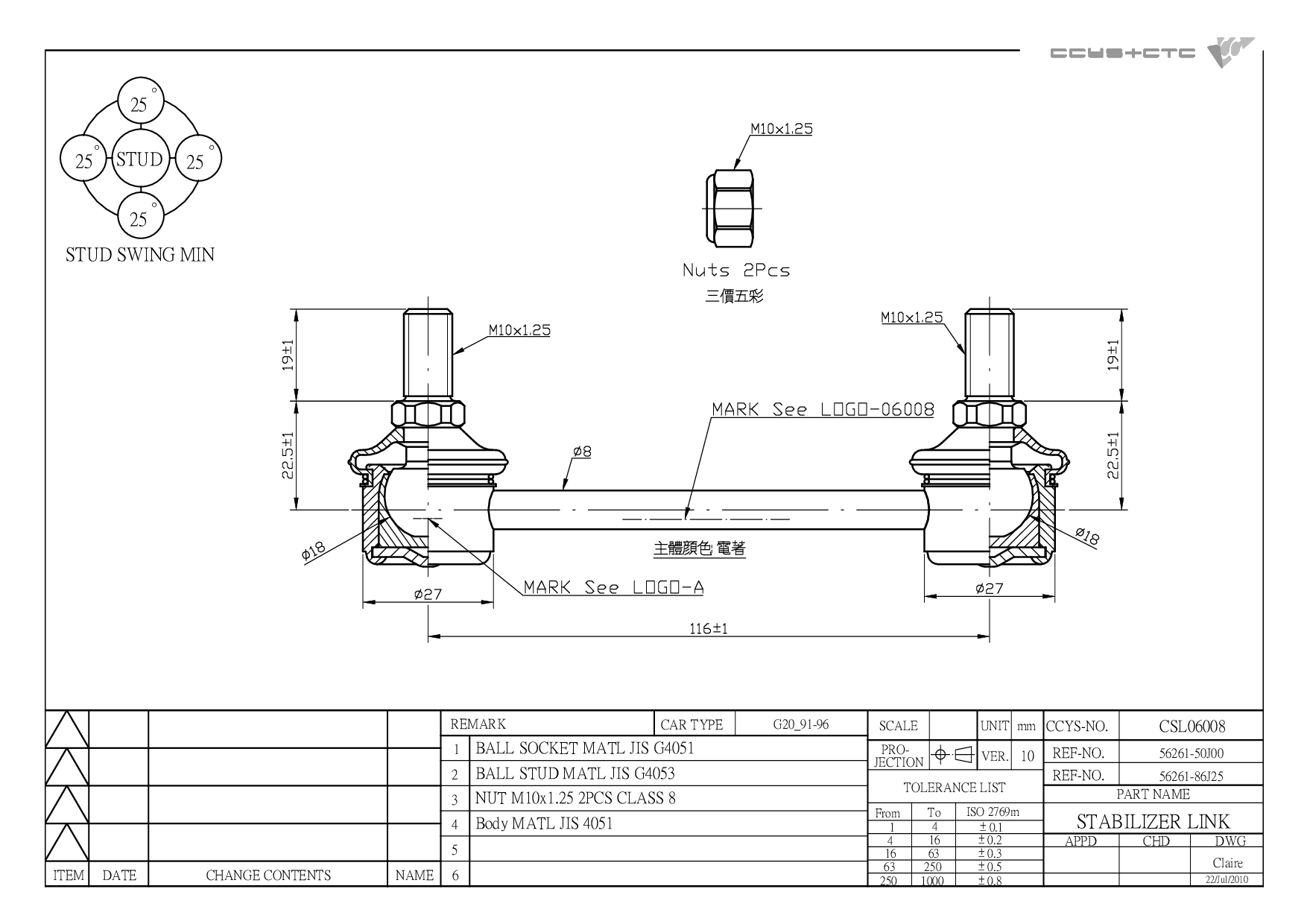

CSL06008
| Designation | Stabilizer Link |
| Position | REAR (A= 116mm) |
| OE No. | 15196366 / 56261-50J00 / 56261-86J00 / 56261-86J25 / 56261-90J01 / 56262-50J00 / 8-97214-822-0 / 8-97214-822-1 / 8-97944-575-0 / 97944575 |
| Length | 149 mm |
| Width | 33 mm |
| Height | 53.2 mm |
| Net Weight | 0.26 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06027 | FRONT UPPER ARM OUTER (ROTATING SLEEVE) | 54541-90J02 |
|
 |
CBJ06005 | FRONT LOWER LH/ RH | 1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600 |
|
 |
CS-630L | FRONT UPPER LH | 54525-2F000 54525-2F010 54525-2J001 54525-3F010 54525-3J201 54525-50J00 54525-65J00 54525-86J01 54525-86J02 54525-86J10 54525-90J00 54525-90J10 54525-90J20 54525-90J21 |
|
 |
CS-630R | FRONT UPPER RH | 54524-2F000 54524-2F010 54524-2J001 54524-3F010 54524-3J201 54524-50J00 54524-65J00 54524-86J01 54524-86J02 54524-86J10 54524-90J00 54524-90J10 54524-90J20 54524-90J21 |
|
 |
CSL06008 | REAR (A= 116MM) | 15196366 56261-50J00 56261-86J00 56261-86J25 56261-90J01 56262-50J00 8-97214-822-0 8-97214-822-1 8-97944-575-0 97944575 |
|
 |
CSL06027 | REAR (A= 165MM) | 54618-50J10 54618-50J11 54618-50J20 54618-50J21 54618-50J60 56260-01J10 |
| Model (Year) |
|---|
|
G20 |
| Model (Year) |
|---|
|
D-MAX I (TFR, TFS) | RODEO |
| Model (Year) |
|---|
|
MICRA II (K11) | MARCH | VERITA / MARCH | VERITA PRIMERA (P10) PRIMERA Hatchback (P10) PRIMERA Traveller (W10) X-TRAIL I (T30) |
