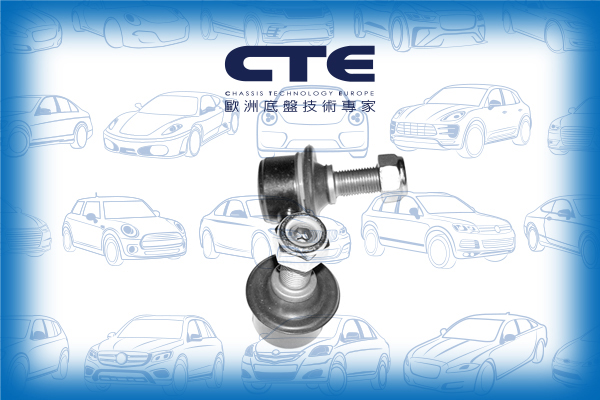

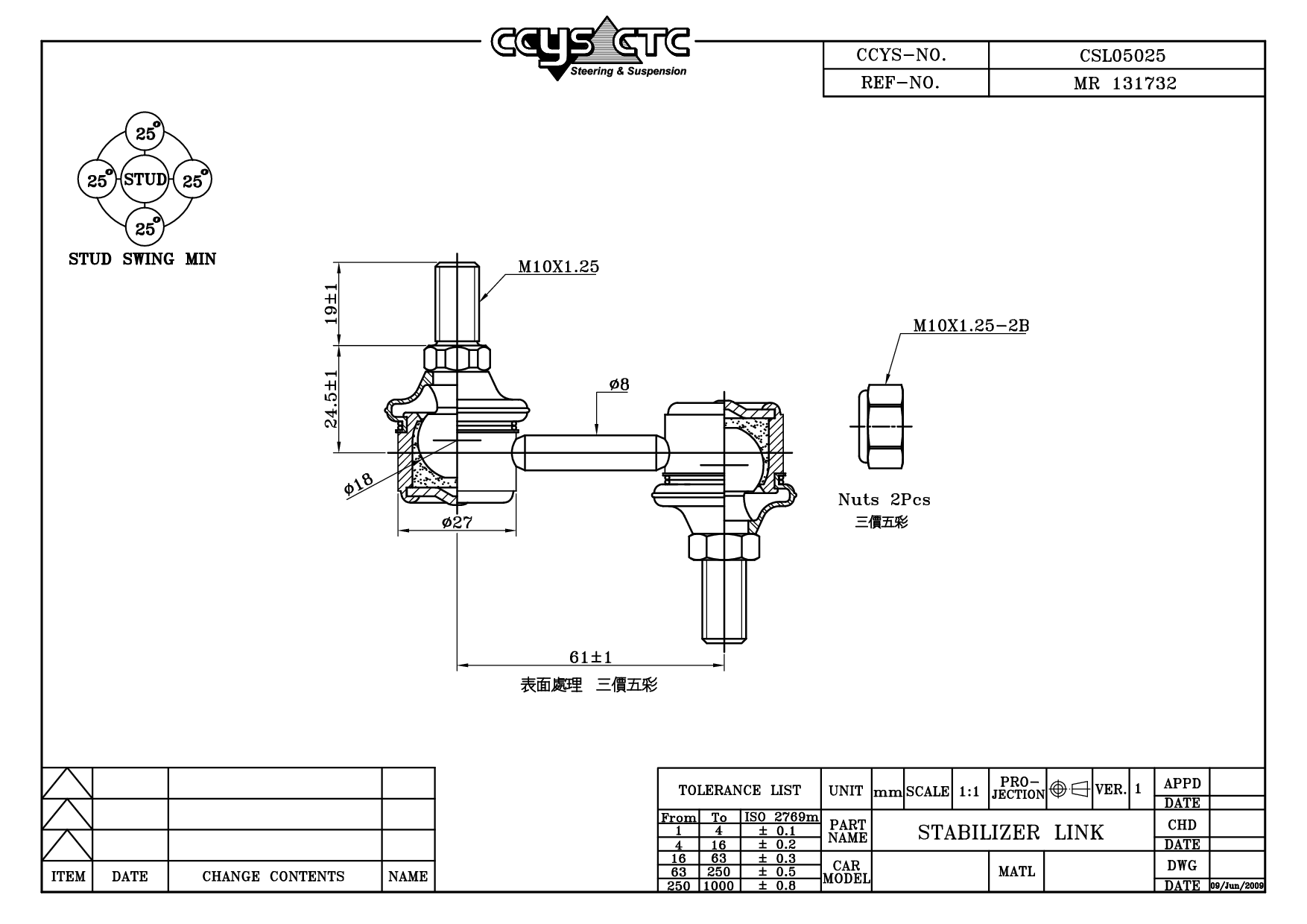

CSL05025
| Designation | Stabilizer Link |
| Position | REAR (A= 61mm) |
| OE No. | 4056A019 / MB631890 / MR 131732 |
| Length | 94 mm |
| Width | 33 mm |
| Height | 87 mm |
| Net Weight | 0.22 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CS-514L | FRONT LOWER LH | MB 912509 MR 162579 MR 165279 MR 296295 MR 325005 MR 325577 MR 972465 MR 972465A MR 972469 |
|
 |
CS-514R | FRONT LOWER RH | MB 912510 MR 162580 MR 165280 MR 296296 MR 325004 MR 325576 MR 972466 MR 972466A MR 972470 |
|
 |
CS-515L | FRONT LOWER LH | MB 162581 MB 912511 MB 912513 MR 162581 MR 162583 MR 296287 MR 296289 MR 296293 MR 296319 |
|
 |
CS-515R | FRONT LOWER RH | MB 912512 MB 912514 MR 162582 MR 162584 MR 296288 MR 296290 MR 296292 MR 296320 |
|
 |
CS-516L | FRONT UPPER LH | MB 912505 MB162803 MB912507 MR 162803 |
|
 |
CS-516R | FRONT UPPER RH | MB 912506 MB162804 MB912508 MR 162804 |
|
 |

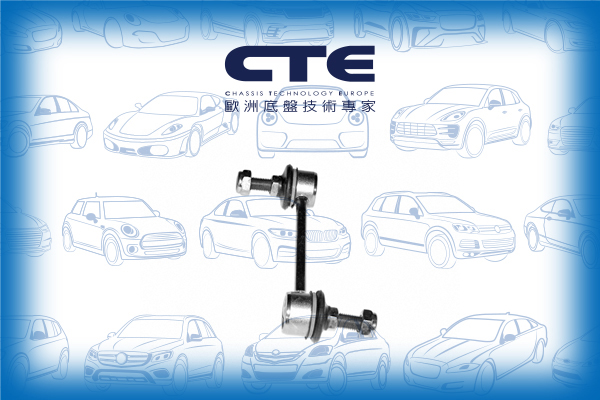

CSL05006 | FRONT (A= 120MM) | 4056-A026 MB 892981 |
|
 |
CSL05025 | REAR (A= 61MM) | 4056A019 MB631890 MR 131732 |
|
 |
CTE26001 | FRONT AXLE LH/ RH (C= M14X1.5) | 56820-22000 56820-25000 56820-28500 56820-28520 56820-29500 56820-2F000 56820-37000 56820-37010 56820-3B000 57780-3B000 |
| Model (Year) |
|---|
|
GALANT VIII (EA_) | GALANT / ASPIRE | ASPIRE GALANT VIII Estate (EA_, EC_) | LEGNUM SIGMA (F2_A, F1_A) | GALANT SIGMA |
