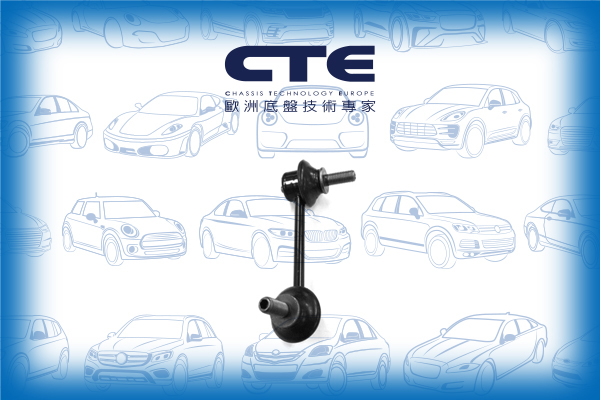

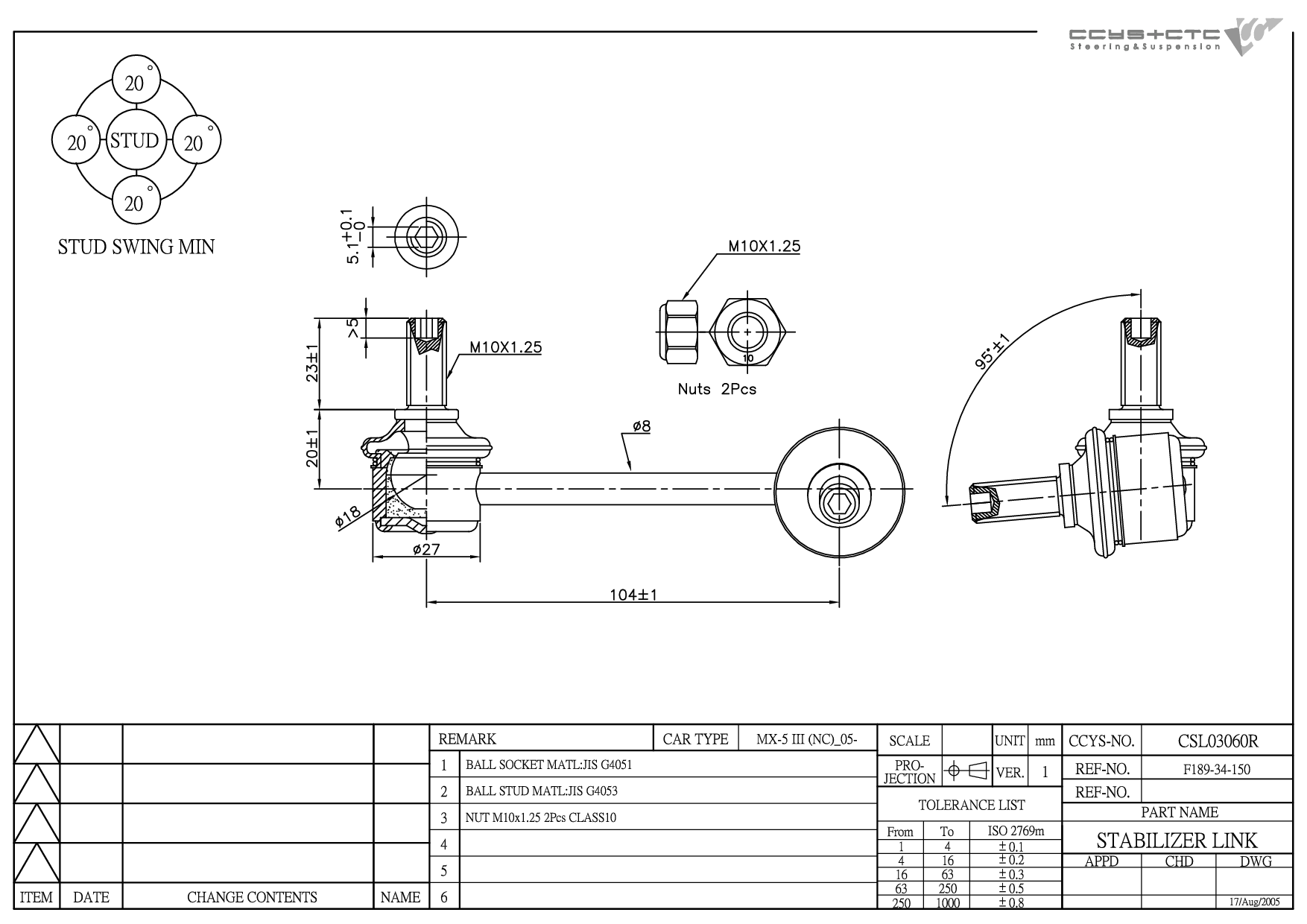

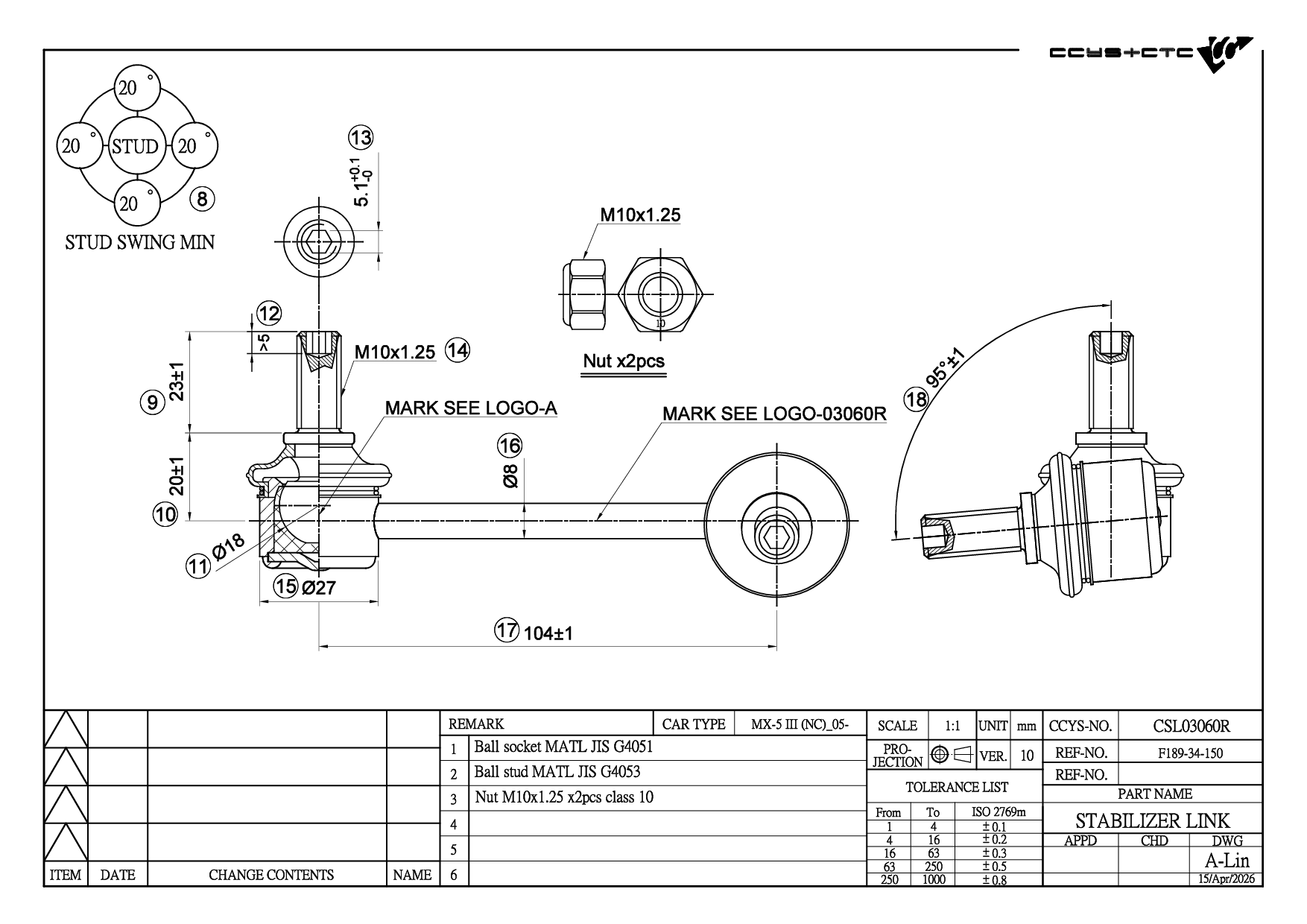

CSL03060R
| Designation | Stabilizer Link |
| Position | FRONT RH (A= 104mm) |
| OE No. | F189-34-150 / KGA2A-34-150A |
| Length | 137 mm |
| Width | 60.2 mm |
| Height | 60.8 mm |
| Net Weight | 0.24 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBJ03001 | FRONT LOWER LH/ RH | 0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320 |
|
 |

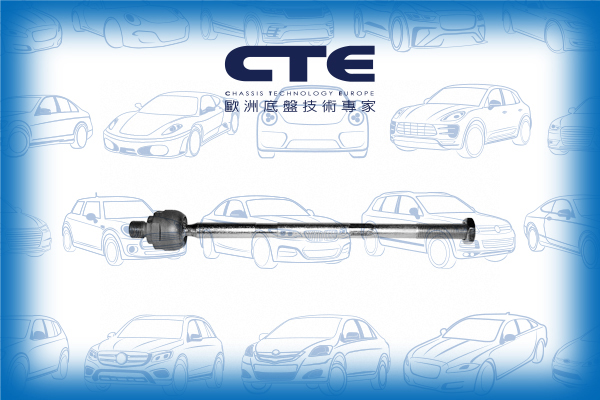

CRE03036 | D= M14X1.5 , C= M16X1.5 | OK203-32-240 |
|
 |
CSL02031 | FRONT (A= 70MM) | 48820-20010 |
|
 |

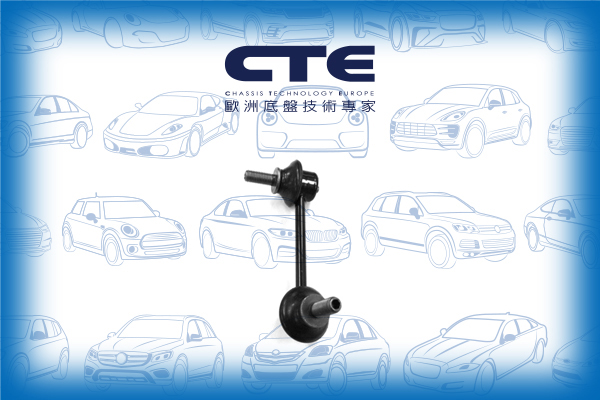

CSL03060L | FRONT LH (A= 104MM) | F189-34-170 KGA2A-34-170A |
|
 |
CSL03060R | FRONT RH (A= 104MM) | F189-34-150 KGA2A-34-150A |
|
 |

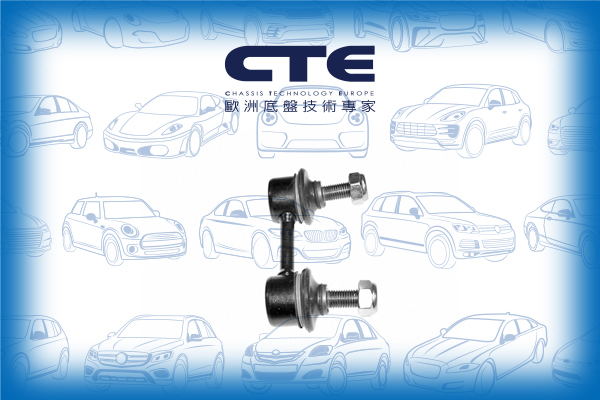

CSL29002 | REAR (A= 68MM) | KOKOA3-28-170A |
|
 |
CTE03004 | FRONT AXLE LH/ RH (C= M14X1.5) | 0H001-32280 0K620-32240A 1363-32510A 1391-99-322 8AH1-32-280 9922-13-020 9992-41-201 H001-99-324 H260-32-280 |
|
 |
CTE03005 | FRONT AXLE LH/ RH (C= M14X1.5) | 3405915 8AG232280 8AG3-32-280 8AG4-32-280 8AG432280A F32Z3A130A G211-33-020 G304-33-020A GA2A-32-280 GA2A-32-280A GJ21-33-020 GJ21-33-020A GJ21-33-030 GJ21-33-030A GJ26-33-020 GJ26-33-030 GJ51-33-020B GJ51-33-020C GJ51-33-020D GJ51-33-020E GJ51-33-030B GJ |
| Model (Year) |
|---|
|
CLARUS (K9A) | CREDOS CLARUS Estate (GC) | CREDOS |
| Model (Year) |
|---|
|
MX-5 III (NC) | MIATA | ROADSTER |
