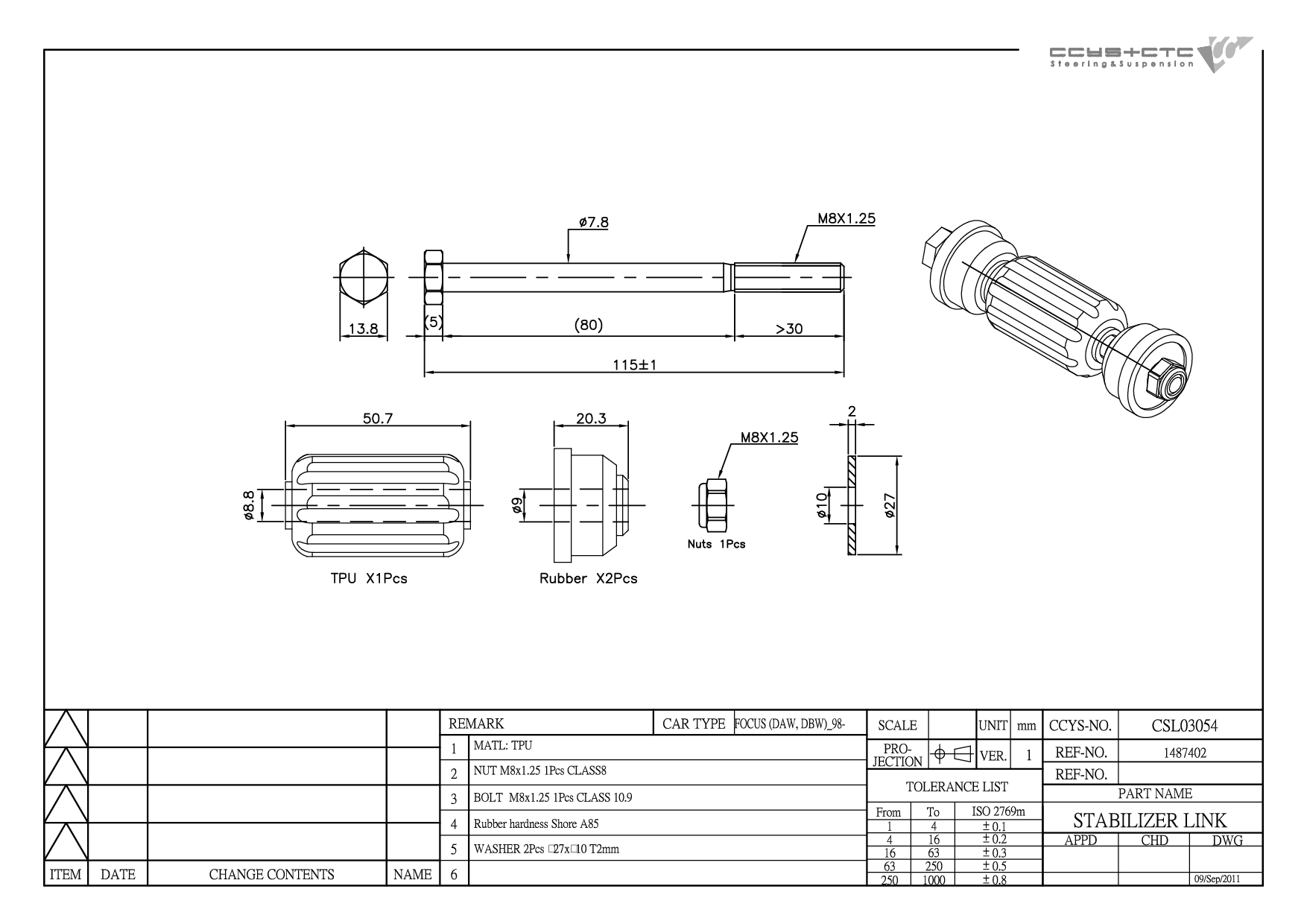

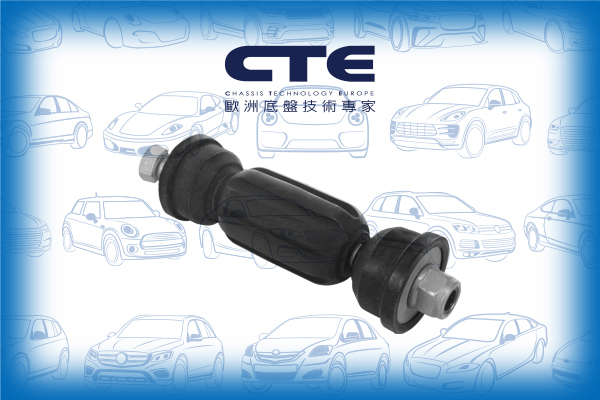

CSL03054
| Designation | Stabilizer Link |
| Position | REAR |
| OE No. | 1061702 / 1061703 / 1136725 / 1203093 / 1487402 / 2M51-5E494-AA / 2M51-5E494-AB / 4056A052 / 98AG-5495-AB |
| Length | 115 mm |
| Width | 13 mm |
| Height | 14.8 mm |
| Net Weight | 0.15 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03020 | REAR LINK INNER/ OUTER | 6784590 6829045 93BB-5K653-AB |
|
 |

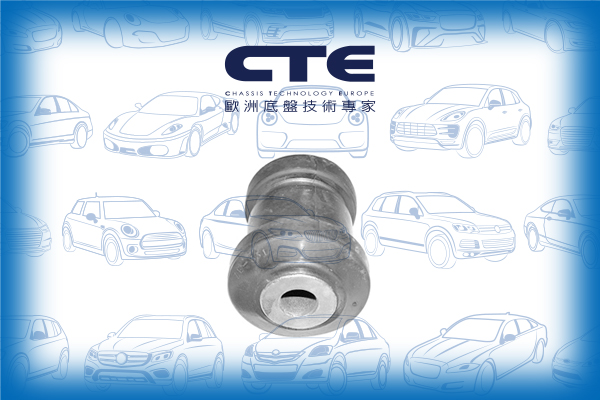

CBH03034 | FRONT LOWER ARM INNER | 1061570 98AG-3063-AE |
|
 |

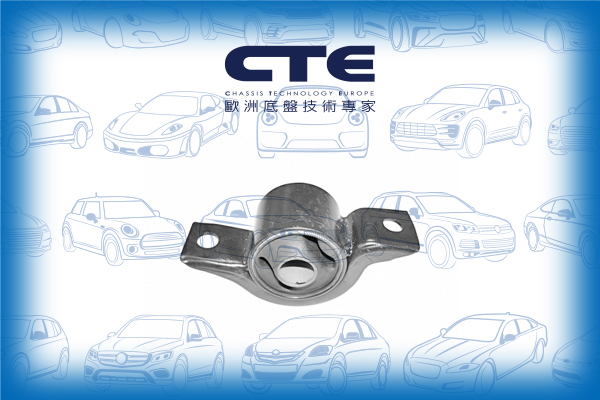

CBH03035 | FRONT LOWER ARM REAR | 1067918 2M51-3A262-AA 2M51-3A262-AB 98AG-3A262-AG 98AG-3A262-AH |
|
 |

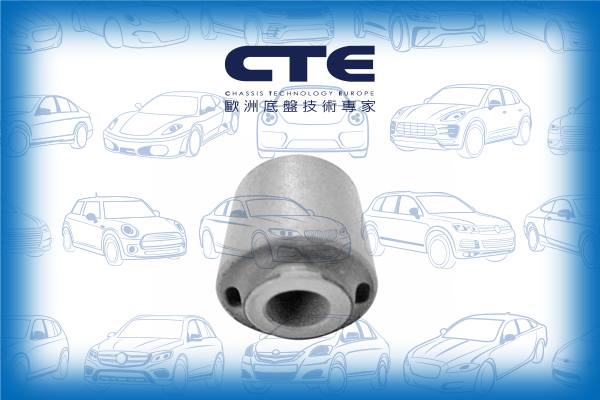

CBH03048 | REAR LINK | 1061668 1100983 1105524 1231455 1251941 1253734 13000384 13001121 30683067 3M51-5K653-AA 3M51-5K653-AB 3M51-5K653-AC 3M51-5K743-AC 98AG-5K743-AE 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236-2 |
|
 |

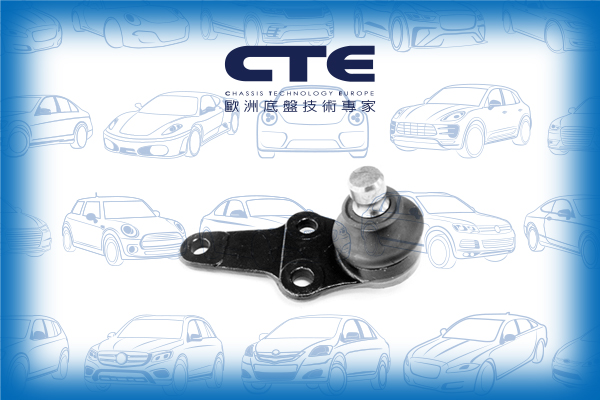

CBJ03012 | FRONT LOWER LH/ RH | 1679401 96FB3395AB 98AG-3042-ZZ 98AG-3051-ZZ 98AG-3395-AE ME98AG-3395-AA |
|
 |

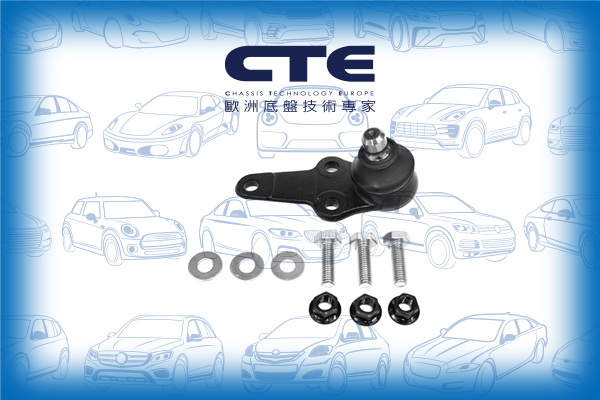

CBJ03012A | FRONT LOWER LH/ RH | 1679401 96FB3395AB 98AG-3042-ZZ 98AG-3051-ZZ 98AG-3395-AE ME98AG-3395-AA |
|
 |

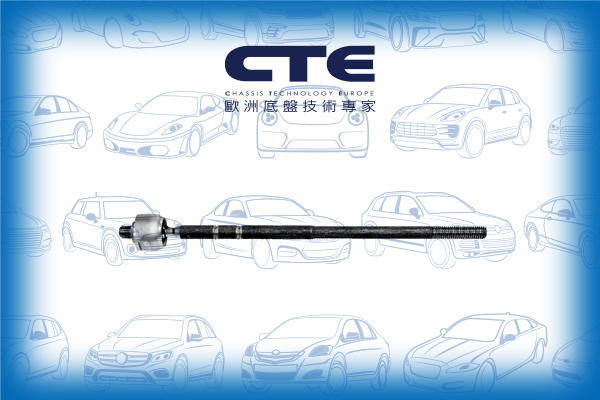

CRE03046 | D= M14X2.0 , C= M14X1.5 | 1085520 3043523 3707333 4083655 98AG-3L519-AA XS4C-3280-AB XS4C-3280-BA YS4C-3200-BA |
|
 |

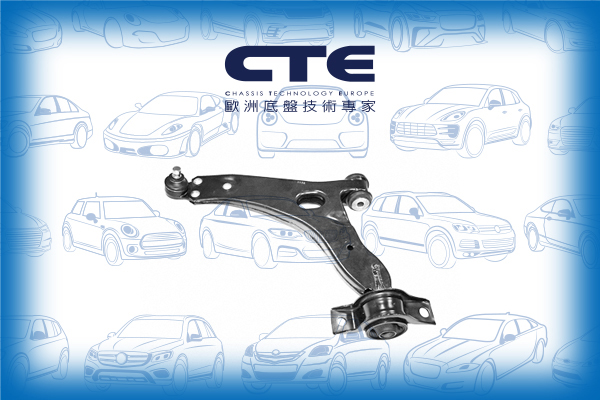

CS-331L | FRONT LOWER LH | 1073215 1090738 1138161 1148932 1207974 1212810 1344968 2M513051BA 2M513051BB 2M513051BC 2M513051BD 2M513051BE 98AG3051AJ 98AG-3051-AK |
|
 |

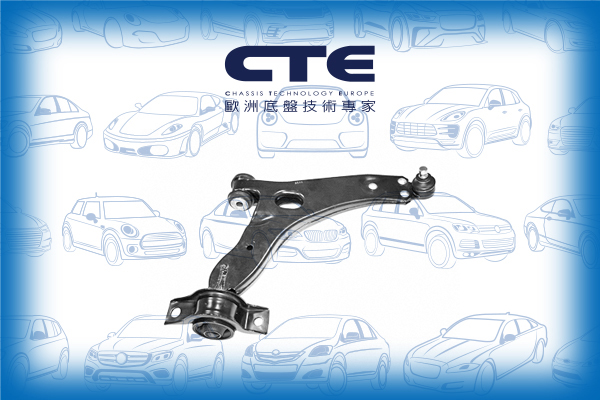

CS-331R | FRONT LOWER RH | 1073214 1090730 1138160 1148931 1207973 1212809 1344966 2M513042BA 2M513042BB 2M513042BC 2M513042BD 2M513042BE 98AG3042AJ 98AG-3042-AK |
|
 |

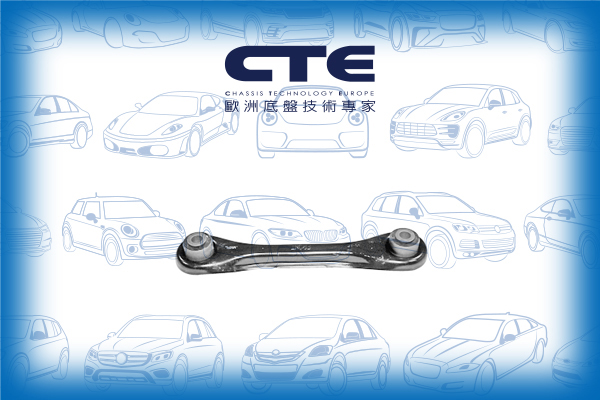

CS-341 | REAR AXLE LH/ RH | 1061668 1100983 1105524 1223958 1231455 1253735 1388327 1500111 30666300 30683067 3M51-5K743-AC 3M51-5K743-AD 3N61-5K743-BB 8646064 8V41-5K743-AA 98AG-5K743-AF BBP3-28-500A BP4K-28-500A BP4K-28-500B BP4K-28-500C BP4K-28-500D BP4K-28-500E C236-28-500 C236- |
|
 |

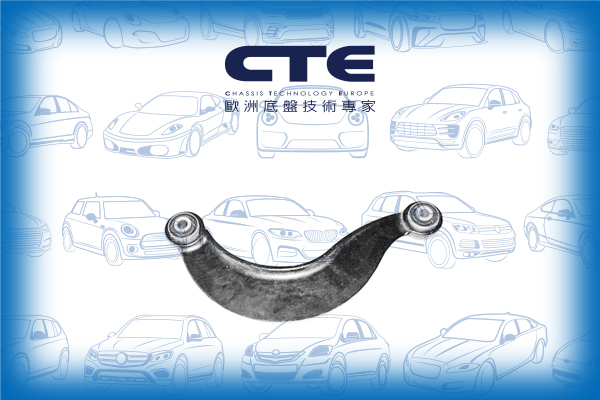

CS-347 | REAR UPPER LH/ RH | 1061659 1061662 1073252 1100977 1113289 1136072 1223897 1231457 1253737 1317609 1329730 1484033 1503993 1517403 1524422 1752736 1M515500AA 1M515500AB 1M51-5500-AC 2512873 3093462 31201356 31212503 31277305 3M515500BA 74 85 104 224 85104224 8671921 8M51-55 |
|
 |
CSL03054 | REAR | 1061702 1061703 1136725 1203093 1487402 2M51-5E494-AA 2M51-5E494-AB 4056A052 98AG-5495-AB |
| Model (Year) |
|---|
|
FOCUS C-MAX (DM2) FOCUS I (DAW, DBW) FOCUS I Estate Van (DNW) FOCUS I Saloon (DFW) FOCUS I Turnier (DNW) |
