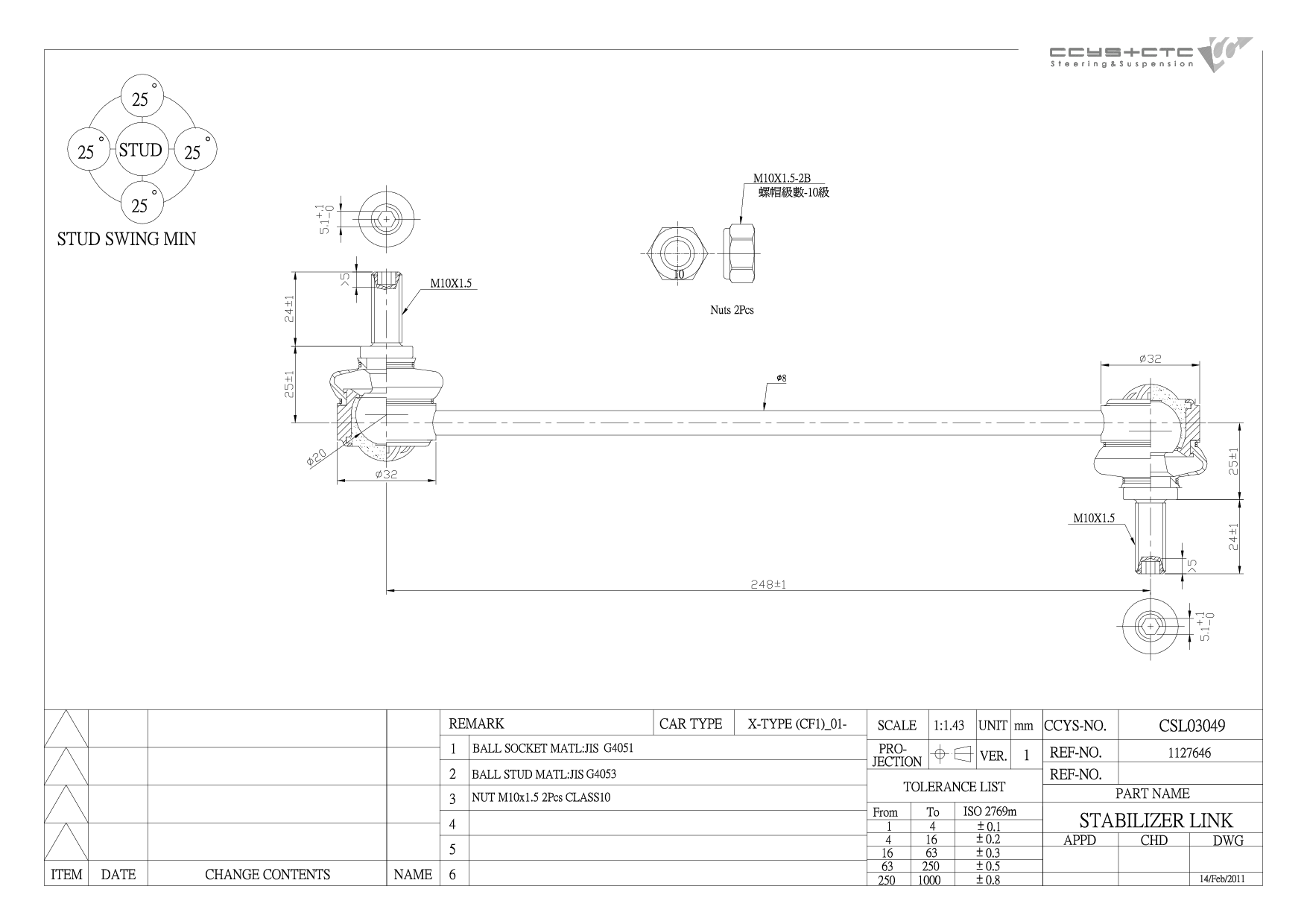

CSL03049
| Designation | Stabilizer Link |
| Position | FRONT (A= 248mm) |
| OE No. | 1127646 / 1S71-3B438-BA / C2S3248 |
| Length | 284.2 mm |
| Width | 36.2 mm |
| Height | 98 mm |
| Net Weight | 0.3 kg |
FORD (B5Y) (B4Y) (BWY) Engine Code D5BA N7BA FMBA Construction Year to 09.2002 JAGUAR Vehicle Identification Number (VIN) to D14965
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03036 | FRONT LOWER ARM REAR | 1116579 1128483 1139926 1139928 1149802 1149803 1201383 1201384 1203923 1203924 1311416 1311417 1522081 1522130 2S71 3042 AC 2S71 3051 AC C2S39661 C2S39662 |
|
 |
CBH03037 | FRONT LOWER ARM INNER | 1118476 |
|
 |

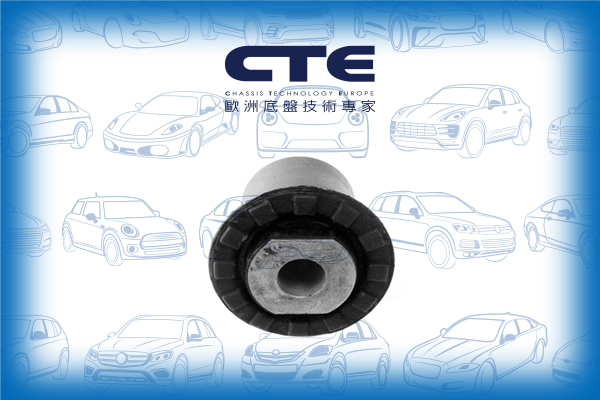

CBH03049 | REAR SUBFRAME | 1404976 1S715K817AC LEM3199 |
|
 |

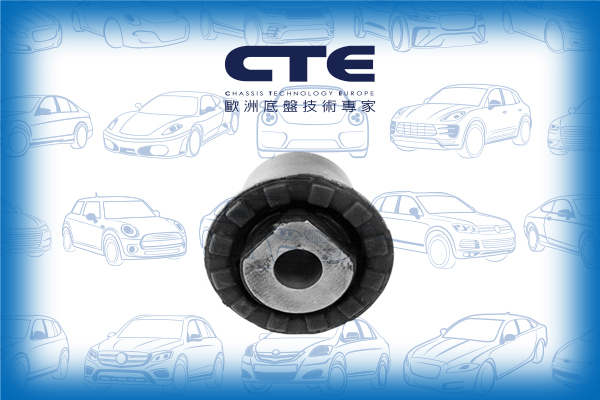

CBH03050 | REAR SUBFRAME | 1404977 1S715K818AC LEM3200 |
|
 |
CBH03073 | REAR ARM | 1117871 1118922 1124242 1206474 1S71-5K898-AD 1S71-5K898-AE 1S71-5K898-AF 1S71-5K898-AG |
|
 |
CBH03074 | REAR ARM | 1117857 1117859 1118920 1118921 1S71-5K652-AB 1S71-5K652-AC 1S71-5K743-AB 1S71-5K743-AC |
|
 |
CBJ03016A | FRONT LOWER LH/ RH | 1116578 1116579 1139828 1139926 1149802 1149803 1203923 1203924 1311416 1311417 1679376 1S71-3042-AE 1S71-3042-AK 1S71-3042-AL 1S71-3042-AN 1S71-3042-AT 1S71-3051-AE 1S71-3051-AK 1S71-3051-AL 1S71-3051-AM 1S71-3051-AN 1S71-3395-AC 1S71-3395-AE 1S71-3395-A |
|
 |
COS03004 | FRONT | 1116579 1117800 1117857 1117859 1117871 1118920 1118921 1118922 1124016 1124017 1124242 1127648 1128483 1139926 1139928 1149802 1149803 1203923 1203924 1206474 1213826 1213836 1219697 1301087 1311416 1311417 1384307 1384311 1426490 1426493 1522081 1522130 |
|
 |
CS-357 | REAR AXLE LH/ RH | 1117871 1118922 1124242 1206474 1S71-5K898-AD 1S71-5K898-AE 1S71-5K898-AF 1S71-5K898-AG |
|
 |
CS-358 | REAR AXLE LH/ RH | 1117859 1118921 1S71-5K743-AB 1S71-5K743-AC |
|
 |
CS-359 | REAR AXLE LH/ RH | 1117857 1118920 1S71-5K652-AB 1S71-5K652-AC |
|
 |
CSL03036 | FRONT (A= 250MM) | 1117698 1127646 1219697 1S71 3B438 BA 1S71-3B438-AB 1S71-3B438-AC 5X43-3B438-AA C2S26883 C2S39552 |
|
 |
CSL03049 | FRONT (A= 248MM) | 1127646 1S71-3B438-BA C2S3248 |
|
 |

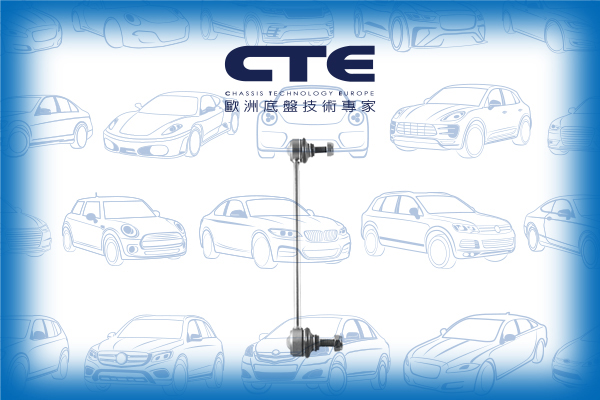

CSL03052 | REAR (A= 253MM) | 1117800 1127648 1S71-5C486-AC 1S71-5C486-AD |
| Model (Year) |
|---|
|
MONDEO III (B5Y) MONDEO III Saloon (B4Y) MONDEO III Turnier (BWY) |
| Model (Year) |
|---|
|
X-TYPE I (X400) X-TYPE I Estate (X400) |
