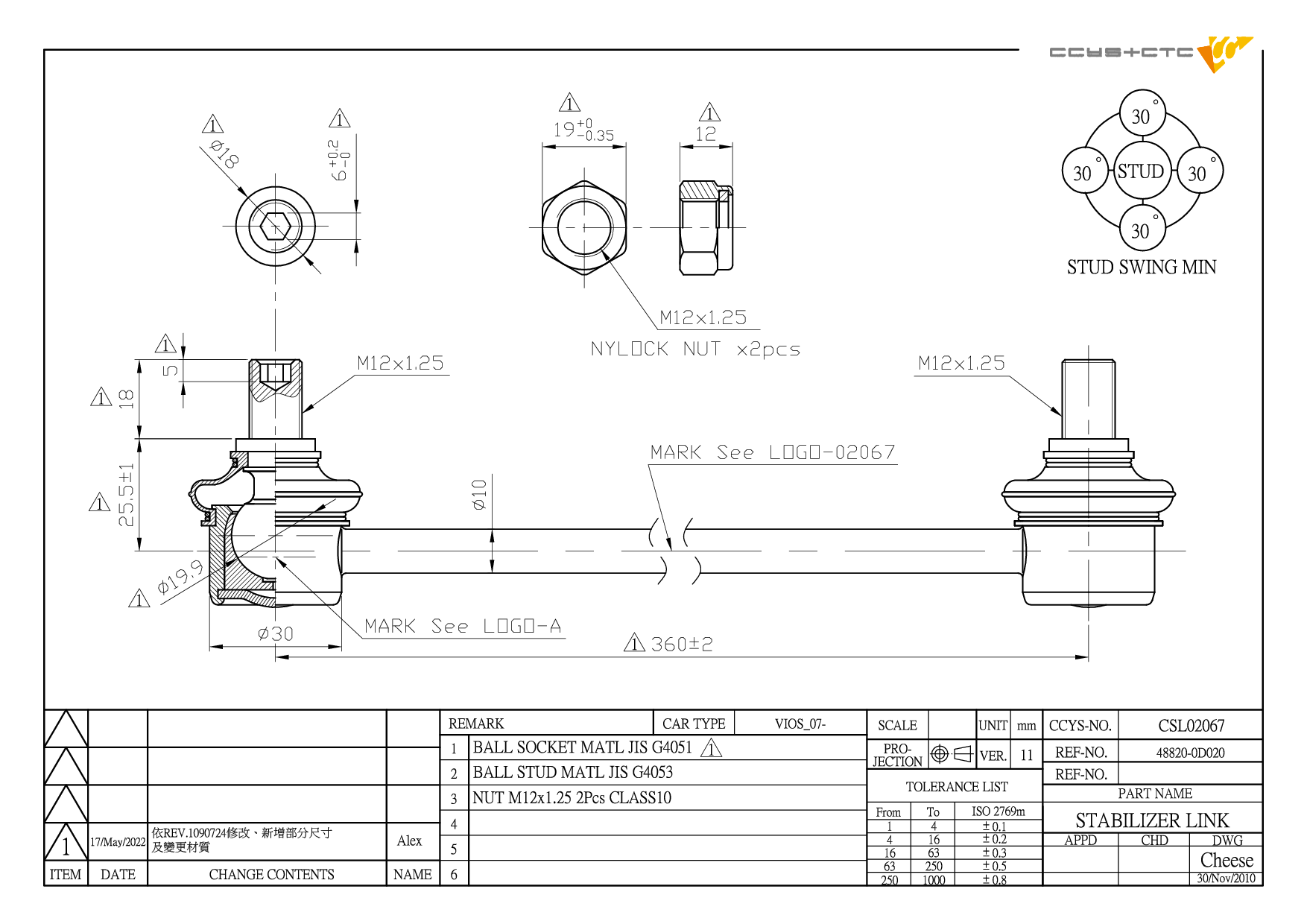

CSL02067
| Designation | Stabilizer Link |
| Position | FRONT (A= 360mm) |
| OE No. | 48820-0D010 / 48820-0D020 / 48820-0D030 / 48820-0D080 / 48820-52030 / 48820-52030M / 48820-52040 / 48820-52070 |
| Length | 396.7 mm |
| Width | 36.8 mm |
| Height | 56.9 mm |
| Net Weight | 0.48 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02049 | FRONT LOWER ARM REAR | 48068-09040 48068-09041 48068-09150 48068-59095 48068-59135 48068-59145 48069-09040 48069-09041 48069-09140 48069-59095 48069-59125 48069-59135 |
|
 |
CBH02050 | FRONT LOWER ARM INNER | 48654-0D030 48654-0D060 48654-52050 48654-74011 |
|
 |
CBJ25003 | FRONT LOWER LH/ RH | 48068-09040 48068-09041 48068-09150 48068-59095 48068-59135 48068-59145 48069-09040 48069-09041 48069-09140 48069-59095 48069-59125 48069-59135 |
|
 |
CS-258L | FRONT LOWER LH | 48069-09040 48069-09041 48069-09071 48069-09140 48069-59095 48069-59125 48069-59135 48069-W9005 |
|
 |
CS-258R | FRONT LOWER RH | 48068-09040 48068-09041 48068-09081 48068-09150 48068-59095 48068-59135 48068-59145 48068-W9005 |
|
 |
CSL02067 | FRONT (A= 360MM) | 48820-0D010 48820-0D020 48820-0D030 48820-0D080 48820-52030 48820-52030M 48820-52040 48820-52070 |
|
 |
CTE02006L | FRONT AXLE LH (C= M14X1.5) | 45047-09220 45047-09250 45047-09301 45047-09540 45047-0D040 45047-59135 45047-59155 45047-59165 |
|
 |
CTE02006R | FRONT AXLE RH (C= M14X1.5) | 45046-09480 45046-09530 45046-09540 45046-09631 45046-0D040 45046-59195 45046-59225 45046-59255 |
|
 |
CTE02007L | FRONT LH | 45047-02010 45047-02040 45047-09050 45047-09150 45047-09230 45047-19115 45047-49045 |
|
 |
CTE02007R | FRONT RH | 45046-02040 45046-02050 45046-09160 45046-09360 45046-09490 45046-19265 45046-49115 |
| Model (Year) |
|---|
|
CHARADE VIII |
| Model (Year) |
|---|
|
TREZIA |
| Model (Year) |
|---|
|
VITARA (ET, TA, TD) | VITARA / ESCUDO | SIDEKICK | ESCUDO |
| Model (Year) |
|---|
|
AQUA (_NHP1_) COROLLA Estate (_E16_) | COROLLA FIELDER COROLLA Saloon (_E16_) | COROLLA AXIO PRIUS C (NHP10_) PROBOX Estate (_P16_) RACTIS (_P10_) SIENTA (_P17_) URBAN CRUISER (_P1_) | IST VERSO (_R2_) VERSO S (_P12_) | VERSO SPACE | RACTIS VIOS / SOLUNA VIOS (_P4_) YARIS (_P13_) | YARIS/VITZ | VITZ YARIS (_P15_) YARIS (_P1_) | YARIS/VITZ | ECHO | VITZ/ECHO YARIS (_P9_) | YARIS/VITZ | VITZ YARIS / VIOS III Saloon (_P15_) YARIS / VIOS Saloon (_P9_) | BELTA YARIS Hatchback Van (_P13_) YARIS R / iA (DL2S_) |
| Model (Year) |
|---|
|
VIOS (_P9_) |
