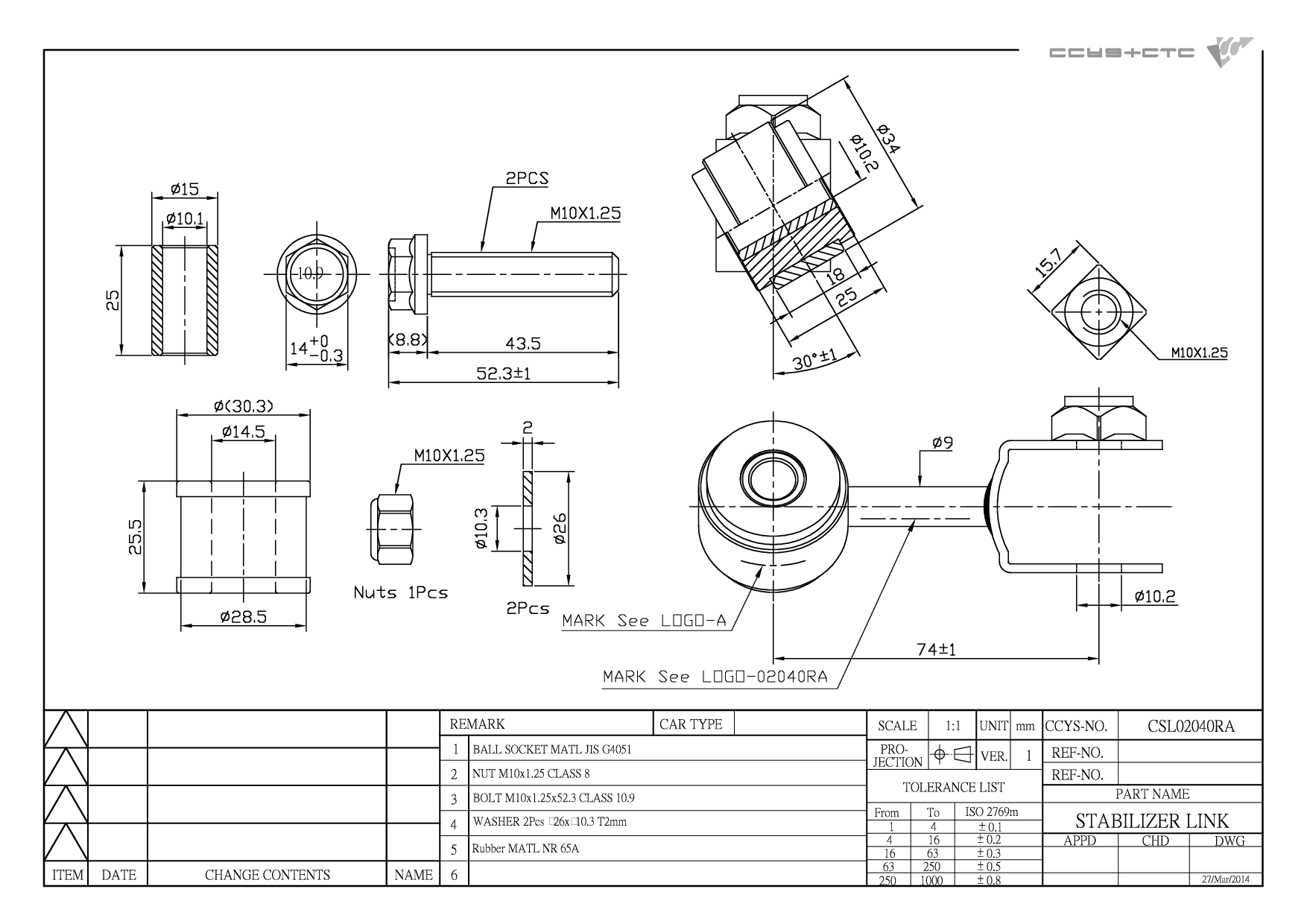

CSL02040RA
| Designation | Stabilizer Link |
| Position | FRONT RH (A= 74mm) |
| OE No. | 48820-26030 |
| Length | 105.4 mm |
| Width | 36.6 mm |
| Height | 44.3 mm |
| Net Weight | 0.18 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02016 | FRONT LOWER ARM INNER | 48061-26010 48061-26030 48061-26031 48061-26050 48061-35010 48061-35011 |
|
 |
CBH02055 | REAR AXLE LH/RH | 52380-26080 52380-26081 52380-26082 |
|
 |
CRE02023 | D= M17X1.5 , C= M14X1.5 | 45503-19116 45503-29255 |
|
 |
CRE02024 | D= M17X1.5 , C= M14X1.5 | 45503-29265 |
|
 |
CS-239L | FRONT LOWER LH | 48069-26070 48069-26071 48069-26072 48069-26130 48069-26131 48069-26132 |
|
 |
CS-239R | FRONT LOWER RH | 48068-26070 48068-26071 48068-26072 48068-26130 48068-26131 48068-26132 |
|
 |
CSL02038 | FRONT AXLE LH/RH | 48819-26050 90101-10140 90179-10029 90440-14003 90948-01002 90948-02004 90948-02005 90948-02190 94184-61000 94184-61001 |
|
 |
CSL02040L | FRONT LH (A= 74MM) | 48810-26030 |
|
 |
CSL02040LA | FRONT LH (A= 74MM) | 48810-26030 |
|
 |
CSL02040R | FRONT RH (A= 74MM) | 48820-26030 |
|
 |
CSL02040RA | FRONT RH (A= 74MM) | 48820-26030 |
|
 |
CSL02071 | FRONT | 48820-17020 48820-17030 48820-17040 |
| Model (Year) |
|---|
|
GRANVIA (_H2_, _H1_) HIACE IV Bus (__H1_, __H2_) HIACE IV Van (__H1_, __H2_) |
