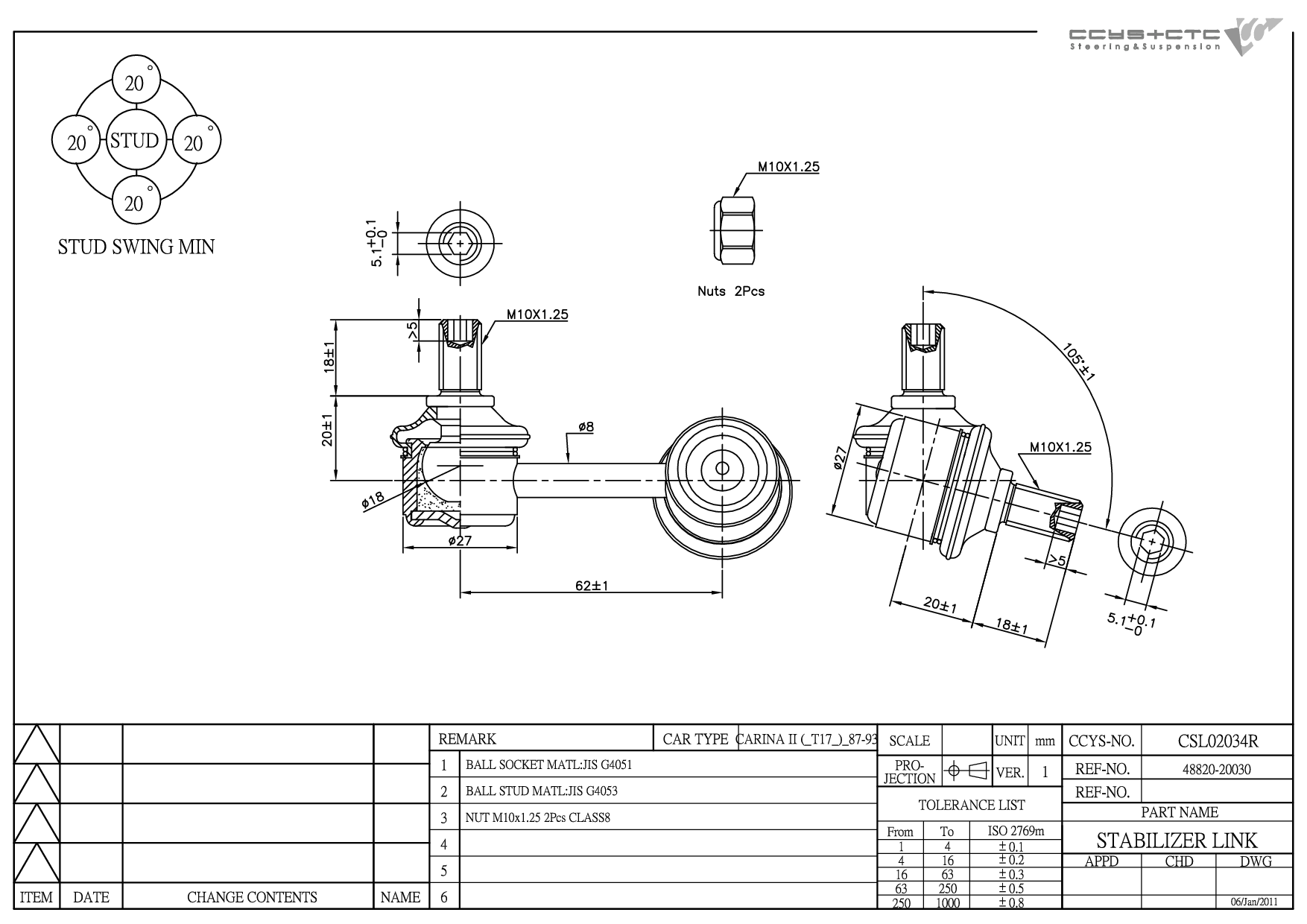

CSL02034R
| Designation | Stabilizer Link |
| Position | FRONT RH (A= 62mm) |
| OE No. | 48820-20030 |
| Length | 94.8 mm |
| Width | 54.2 mm |
| Height | 55.6 mm |
| Net Weight | 0.22 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH10003 | FRONT LOWER ARM INNER | ||
 |
CBJ10003 | FRONT LOWER LH/ RH | ||
 |
CRE10002 | D= M14X1.5 , C= M12X1.0 | 77 01 472 120 |
|
 |
CRE10007 | D= M14X1.5 , C= M12X1.0 | 77 01 471 125 |
|
 |
CRE10008 | D= M14X1.5 , C= M14X1.5 | 77 01 472 734 77 01 472 735 |
|
 |
CS-1003L | FRONT LOWER LH | 54501-00Q0D 54501-00Q0G 54501-00Q0K 54501-00Q0L 54501-00QAG 54501-00QAH 77 00 310 809 77 00 313 944 77 00 425 227 82 00 197 179 82 00 737 123 82 00 942 407 82009-42417 |
|
 |
CS-1003R | FRONT LOWER RH | 54500-00Q0D 54500-00Q0J 54500-00Q0M 54500-00Q1A 54500-00QAG 54500-00QAH 54616-00Q0D 77 00 310 810 77 00 313 945 77 00 425 228 82 00 197 187 82 00 737 129 82 00 942 408 82009-42413 |
|
 |

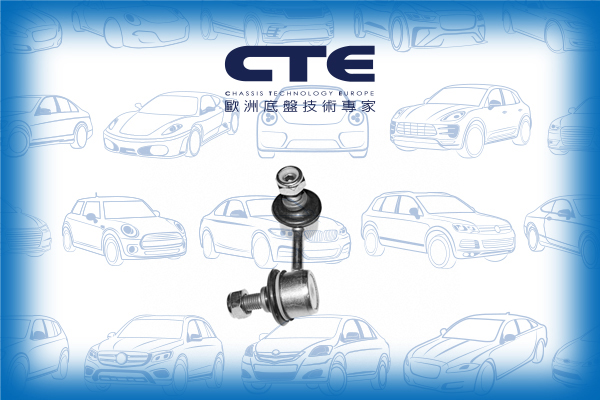

CSL02034L | FRONT LH (A= 62MM) | 48810-20010 |
|
 |

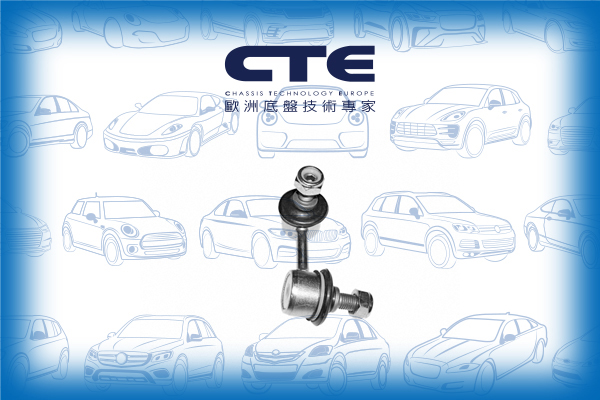

CSL02034R | FRONT RH (A= 62MM) | 48820-20030 |
| Model (Year) |
|---|
|
CLIO II (BB_, CB_) | LUTECIA KANGOO (KC0/1_) KANGOO Express (FC0/1_) TWINGO II (CN0_) |
| Model (Year) |
|---|
|
AVENSIS (_T22_) AVENSIS Estate (_T22_) AVENSIS Liftback (_T22_) CARINA E VI (_T19_) CARINA E VI Saloon (_T19_) CARINA E VI Sportswagon (_T19_) CARINA IV (_T15_) CARINA IV Saloon (_T15_) CARINA V (_T17_) CARINA V Estate (_T17_) CARINA V Saloon (_T17_) CORONA Estate (_T17_) CORONA Hatchback (_T17_) CORONA Hatchback (_T19_) CORONA Saloon (_T14_, _T15_, _T16_) CORONA Saloon (_T17_) |
