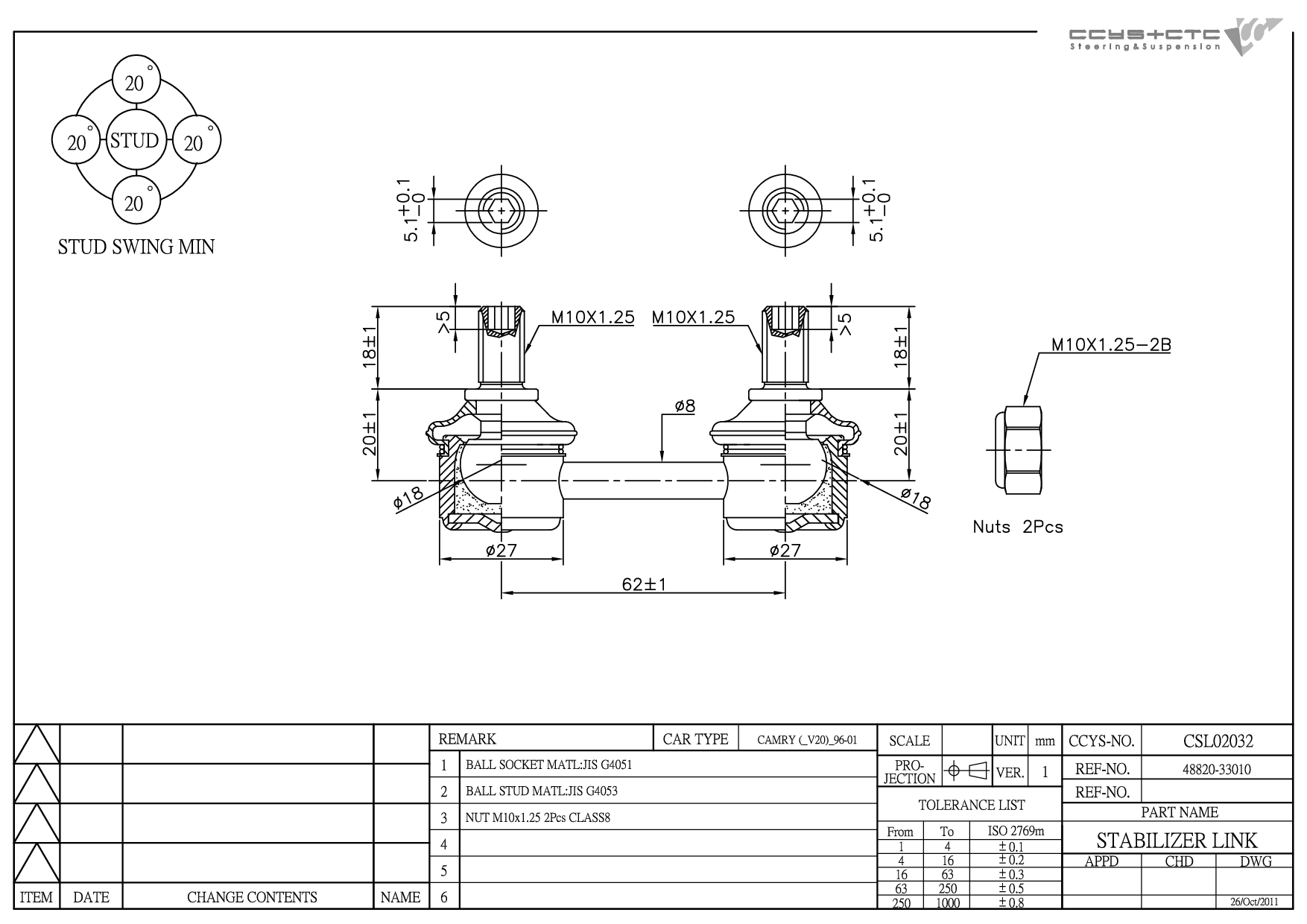

CSL02032
| Designation | Stabilizer Link |
| Position | FRONT (A= 62mm) |
| OE No. | 48820-02010 / 48820-33010 |
| Length | 95 mm |
| Width | 33 mm |
| Height | 49.2 mm |
| Net Weight | 0.22 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02025 | FRONT LOWER ARM INNER | 48654-33030 |
|
 |
CBH02039 | FRONT LOWER ARM REAR | 48655-07010 48655-33010 48655-48010 |
|
 |
CRE02143 | FRONT AXLE LH/ RH | 45503-49025 45503-49095 |
|
 |
CS-229L | FRONT LOWER LH | 48069-06010 48069-06050 48069-07010 48069-33010 48069-33020 |
|
 |
CS-229R | FRONT LOWER RH | 48068-06010 48068-06050 48068-07010 48068-33010 48068-33020 |
|
 |
CS-296 | REAR LOWER LH/ RH | 48710-33030 |
|
|
CS-297L | REAR LOWER LH | 48740-33020 48740-33040 |
|
|
CS-297R | REAR LOWER RH | 48730-33020 |
|
 |
CSL02031 | FRONT (A= 70MM) | 48820-20010 |
|
 |
CSL02032 | FRONT (A= 62MM) | 48820-02010 48820-33010 |
| Model (Year) |
|---|
|
ES (VCV10_, VZV21_) |
| Model (Year) |
|---|
|
AVALON Saloon (_X1_) | PRONARD CAMRY (_V1_) | SCEPTER CAMRY (_V2_) CAMRY Estate (_V1_) | SCEPTER CELICA Convertible (_T20_) CELICA Coupe (_T20_) COROLLA (_E10_) COROLLA (_E11_) COROLLA Compact (_E10_) COROLLA Compact (_E11_) COROLLA Estate (_E10_) COROLLA Estate (_E11_) COROLLA Liftback (_E10_) COROLLA Liftback (_E11_) COROLLA Verso (_E11_) RAV 4 I (_A1_) RAV 4 I Cabrio (_A1_) SCEPTER Estate SCEPTER Saloon |
