CSL02016
| Designation | Stabilizer Link |
| Position | FRONT |
| OE No. | 90101-10090 |
| Length | 146 mm |
| Width | 33 mm |
| Height | 33 mm |
| Net Weight | 0.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02002 | FRONT UPPER ARM INNER | 48635-28010 |
|
 |
CBH02003 | FRONT UPPER ARM REAR | ||
 |

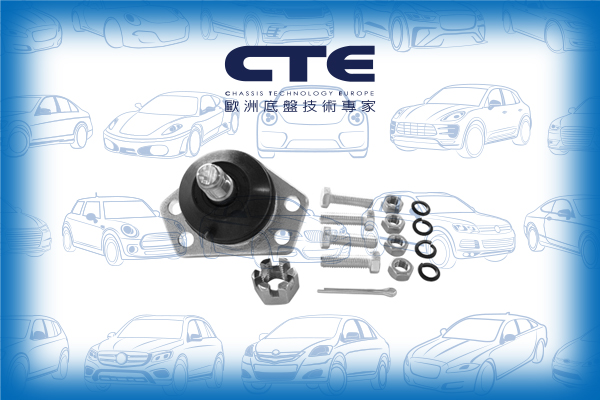

CBJ02003A | FRONT UPPER LH/ RH | 43350-29035 43350-29036 43350-29075 43350-29076 43350-29085 43360-29036 43360-29055 43360-29056 |
|
 |

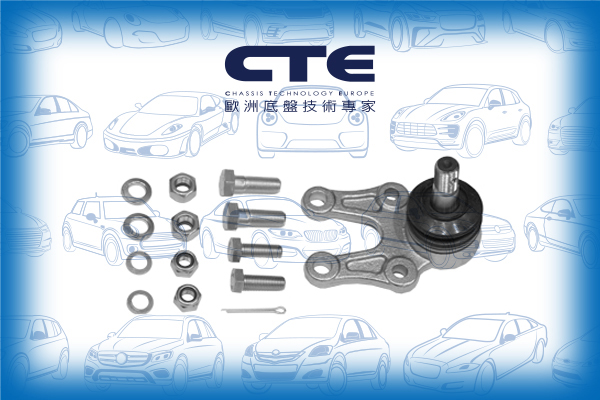

CBJ02009A | FRONT LOWER LH/ RH | 43330-0B020 43330-29115 43330-29175 43330-29245 43330-29545 43340-29095 |
|
 |
CRE02025 | D= M14X1.5 , C= M14X1.5 | 45503-29215 45503-29335 45503-59025 45503-59035 |
|
 |
CS-215L | FRONT LOWER LH | 48069-27050 48069-28040 48069-28070 48069-28080 |
|
 |
CS-215R | FRONT LOWER RH | 48068-27050 48068-28040 48068-28070 48068-28080 |
|
 |

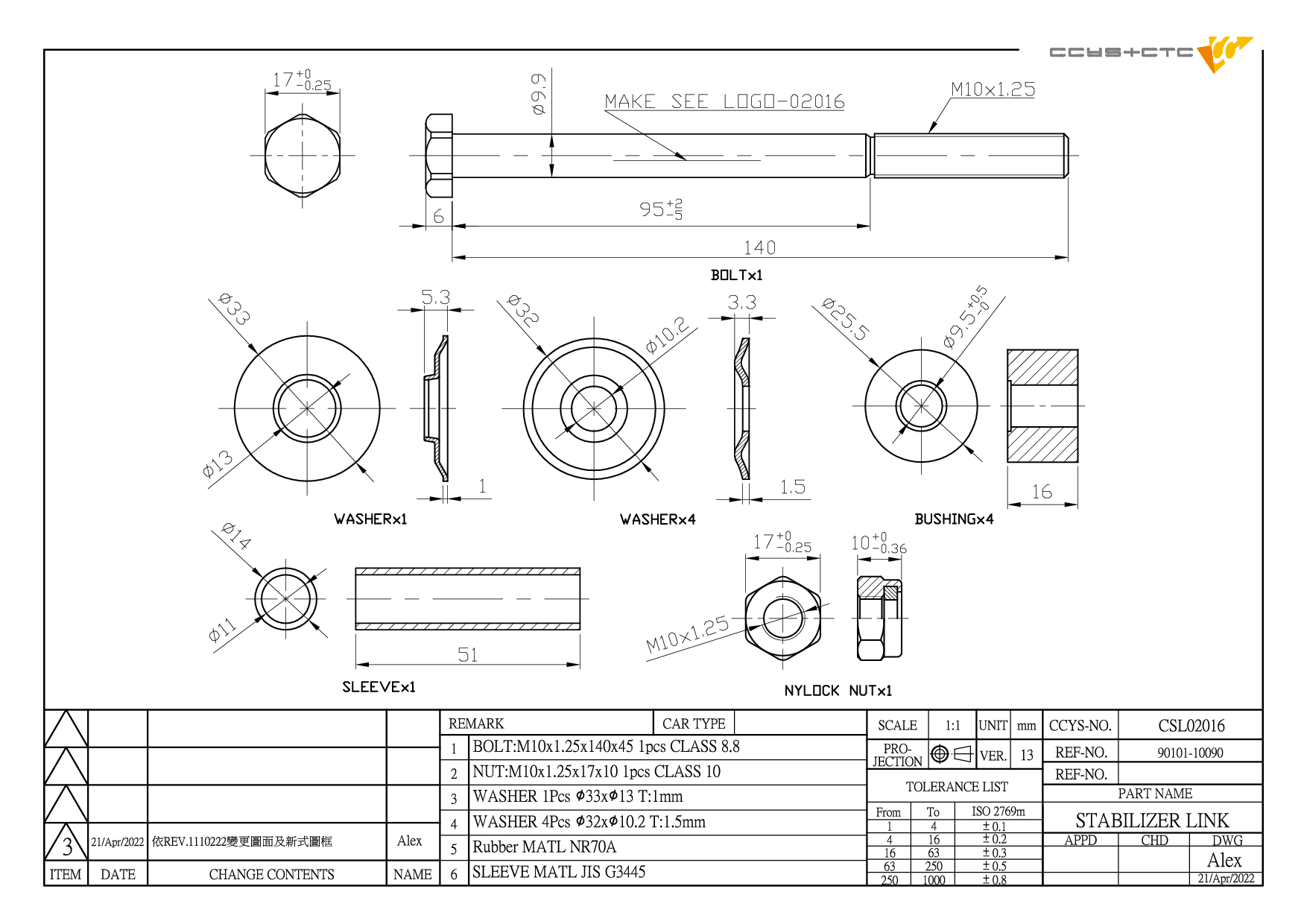

CSL02016 | FRONT | 90101-10090 |
| Model (Year) |
|---|
|
DYNA 100 Platform/Chassis (LY1_, YY1_) DYNA 100 Platform/Chassis (YH_) DYNA Platform/Chassis (LH8_) HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) LITEACE Bus (_M3_, _M4_) LITEACE Van (_M2_) LITEACE Van (_M3_, _M4_) LITEACE Wagon (YM2_, CM2_, KM2_) MASTER ACE SURF Bus (_R2_) MODEL F (CR2_, YR2_, YR3_) | VAN | SPACE CRUISER |
