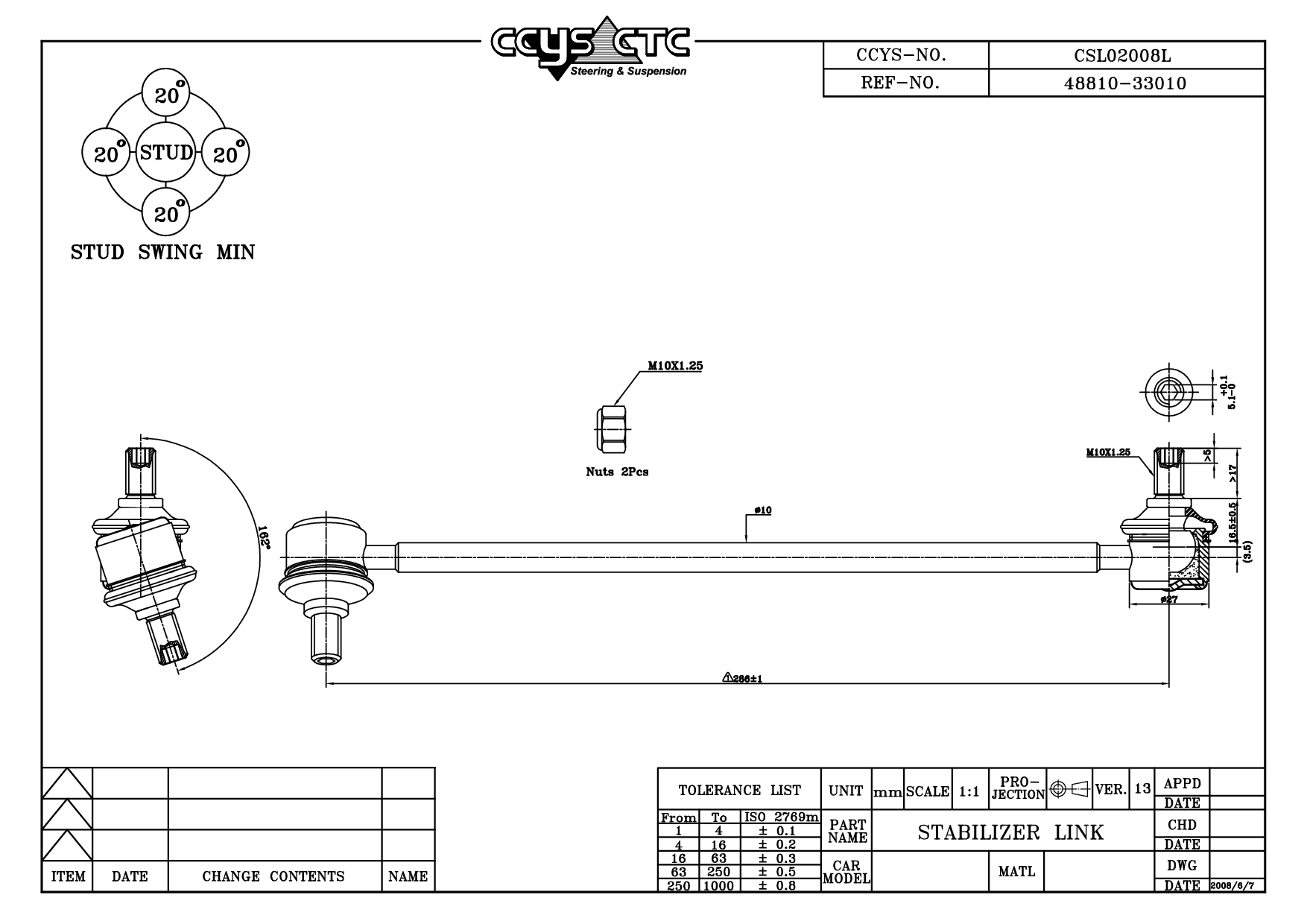

CSL02008L
| Designation | Stabilizer Link |
| Position | FRONT LH (A= 286mm) |
| OE No. | 48810-06030 / 48810-33010 |
| Length | 318.5 mm |
| Width | 35.4 mm |
| Height | 75.4 mm |
| Net Weight | 0.36 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02025 | FRONT LOWER ARM INNER | 48654-33030 |
|
 |
CBH02039 | FRONT LOWER ARM REAR | 48655-07010 48655-33010 48655-48010 |
|
 |
CBJ02004 | FRONT LOWER LH/ RH | 43330-39135 43330-39275 43330-39345 |
|
 |
CRE02130 | FRONT AXLE LH/ RH | 45503-29245 |
|
 |
CS-230L | FRONT LOWER LH | 48069-06040 48069-33030 48069-33031 |
|
 |
CS-230R | FRONT LOWER RH | 48068-06040 48068-33030 48068-33031 |
|
 |
CSL02002 | REAR (A= 205MM) | 48830-32030 |
|
 |
CSL02008L | FRONT LH (A= 286MM) | 48810-06030 48810-33010 |
|
 |
CSL02008R | FRONT RH (A= 286MM) | 48820-06030 48820-33020 |
|
 |
CSL02030 | REAR (A= 193MM) | 48820-02110 48820-0A010 48820-42050 48820-47040 48820-F4010 48830-33010 T4882-04704 |
|
 |
CSL02032 | FRONT (A= 62MM) | 48820-02010 48820-33010 |
| Model (Year) |
|---|
|
AVALON Saloon (_X1_) | PRONARD AVALON Saloon (_X2_) | PRONARD CAMRY (_V2_) CAMRY Saloon (_V3_) HARRIER (_U1_) MARK II Estate (_X1_, _V2_) SOLARA Convertible (_V2_) | CAMRY SOLARA SOLARA Coupe (_V2_) |
