Stabilizer Link

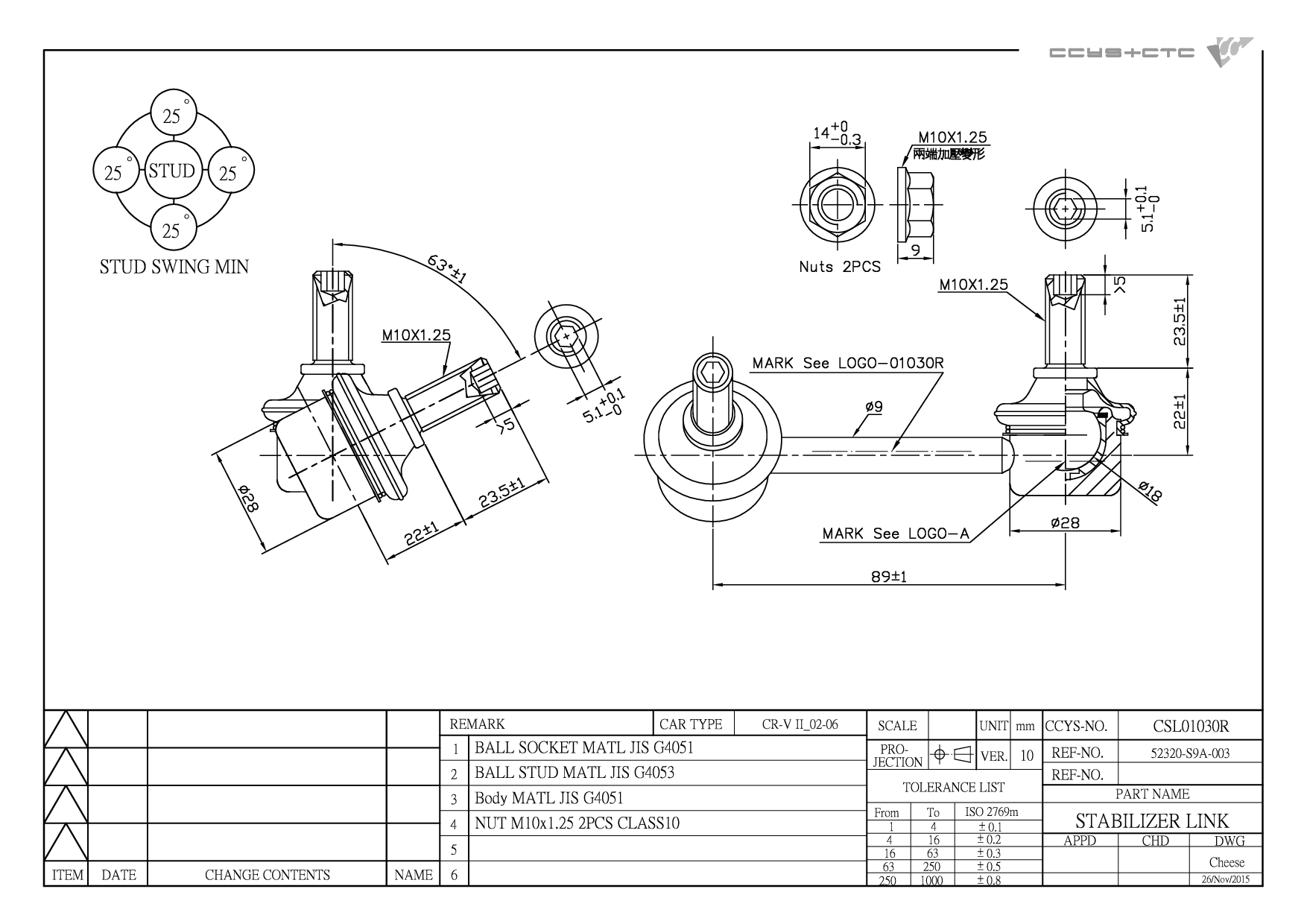

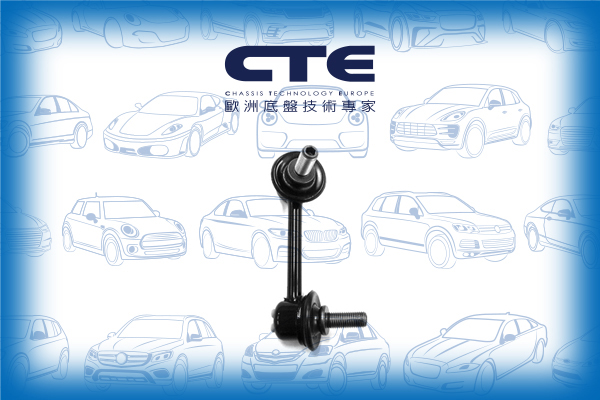

Stabilizer Link / CSL01030R

Technical Specification Matrix

CSL01030R 是 Stabilizer Link 專用的平衡桿拉桿 (Rear Axle Right (A= 89mm))。本產品為 OEM 規格替代零件，適配原廠料號 52320-S9A-003,52320-S9A-305。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	Rear Axle Right (A= 89mm)
OE 替代料號 (Original Equipment Numbers)	52320-S9A-003 52320-S9A-305
Length	159 mm
Width	130 mm
Height	105 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH01033	FRONT AXLE LEFT; FRONT AXLE RIGHT; FRONT; LOWER FRONT AXLE	51391-S5A-004 51391-S5A-014 51391-S5A-024 51391-S5A-305 51391-S5A-801 51391-S5T-Z01 51391-S6M-005 51391-S6M-J01 51391-S7A-801 51391-SCB-A01 51391-SCV-A02 51391-SCV-A03 51391-SJH-005 51391-SNA-305 51391-SNA-903
CRE01026	FRONT AXLE LEFT; FRONT AXLE RIGHT	53521-S9A-003 53521-S9A-A01
CS-162	REAR AXLE RIGHT; LOWER	52390-SCV-A11 52400-SCV-A11

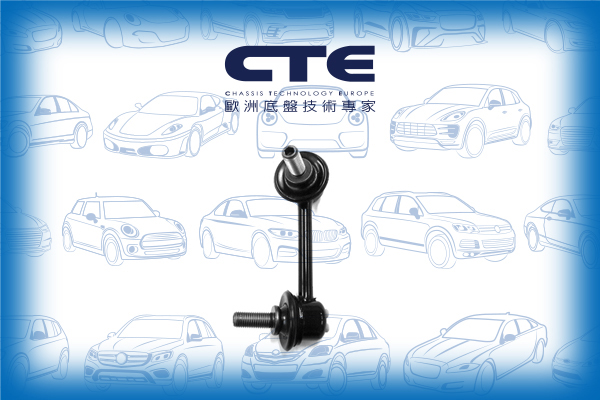

CSL01030L	REAR AXLE LEFT (A= 89MM)	52321-S9A-003 52321-S9A-305
CSL01030R	REAR AXLE RIGHT (A= 89MM)	52320-S9A-003 52320-S9A-305
