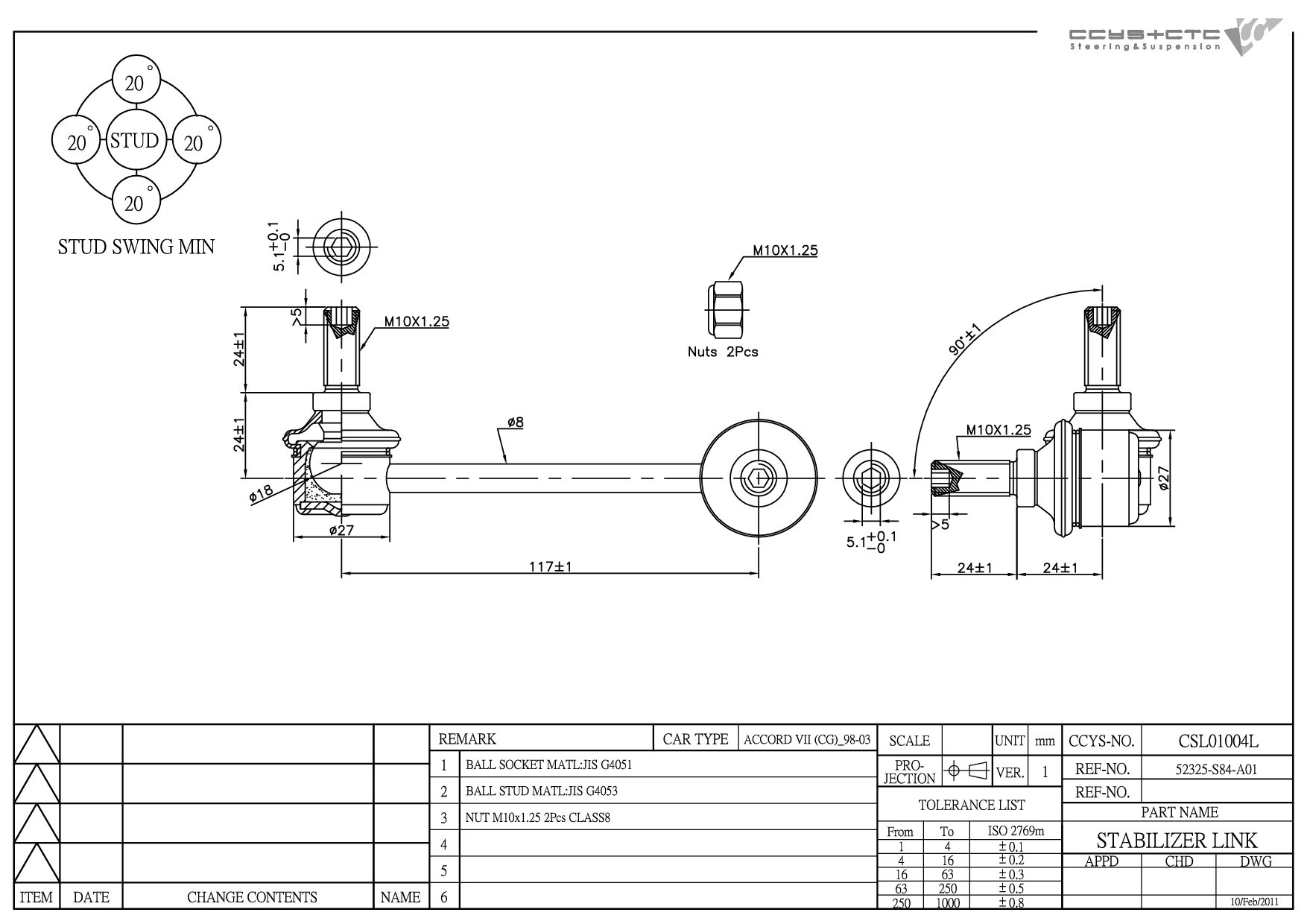

CSL01004L
| Designation | Stabilizer Link |
| Position | REAR LH (A= 117mm) |
| OE No. | 52325-S84-A01 |
| Length | 150 mm |
| Width | 64.5 mm |
| Height | 64.5 mm |
| Net Weight | 0.26 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01011 | FRONT UPPER ARM INNER | 52393-SM1-A01 52393-SM1-A02 52393-SM4-003 52393-SM4-004 52393-SM4-013 52393-SM4-300 RGX100240 |
|
 |
CBH01022 | FRONT LOWER ARM INNER | 51393-S0A-004 51393-S0A-014 51393-S1A-E01 51393-SL4-004 51393-SL5-003 51393-SL5-013 51393-SL9-013 51393-SM4-003 51393-SM4-013 51393-SM4-505 51393-SV1-A01 51393-SV1-E01 RBX100431 |
|
 |
CBJ07002 | FRONT LOWER LH/ RH | 1A10-34-350 1A12-34-350 1A13-34-350 1A16-34-300 1A18-34-300 1A19-34-300 45201-52R00 45201-52R01 45201-52R20 45201-52R21 45201-54M00 45201-64P00 45201-68P10 45201-68R00 45201-72L00 45201-77M00 45201-82M00 45201-82MA0 45201M68K00 45201M72R00 45201M79M00 452 |
|
 |
CRE01019 | D= M14X1.5 , C= M16X1.5 | 53010-S84-A01 53010-S84-A01A |
|
 |
CS-117L | REAR UPPER LH | 52400SM043 52400-SM1-A01 52400-SM1-A02 52400-SM1-A03 52400-SM1-A04 52400-SM4-003 52400-SM4-013 52400-SM4-023 52400-SM4-033 52400-SM4-043 52400-SM4-A01 52400-SM4-A02 52400-SM4-A03 52400-SM4-A04 52400-SM5-A01 52400-SM5-A03 RBD100090 RBJ001087 RBJ001087EVA R |
|
 |
CS-117R | REAR UPPER RH | 52390-SM1-033 52390-SM1-A01 52390-SM1-A02 52390-SM1-A03 52390-SM1-A04 52390-SM4-003 52390-SM4-013 52390-SM4-023 52390-SM4-033 52390-SM4-043 52390-SM4-A01 52390-SM4-A02 52390-SM4-A03 52390-SM4-A04 52390-SM5-A01 52390-SM5-A03 RBJ001088 RBJ001088EVA RGG10239 |
|
 |
CS-126L | FRONT LOWER LH | 51365-SV4-000 51365-SV7-A00 51365-SX0-000 |
|
 |
CS-126R | FRONT LOWER RH | 51355-SV4-000 51355-SV7-A00 51355-SX0-000 |
|
 |
CSL01001L | FRONT LH (A= 71MM) | 51321-S84-A01 51321-S84-A01A |
|
 |
CSL01001R | FRONT RH (A= 71MM) | 51320-S84-A01 51320-S84-A01A |
|
 |
CSL01003 | REAR (A= 134.5MM) | 52306-SE0-010 52306-SE0-020 52306-SE0-030 52306-SE0-A00 52306-SN7-E01 |
|
 |
CSL01004L | REAR LH (A= 117MM) | 52325-S84-A01 |
|
 |
CSL01004R | REAR RH (A= 117MM) | 52320-S84-A01 |
|
 |
CTE01002L | FRONT AXLE LH (C= M14X1.5) | 53560-S1A-E01 53560-S84-A01 53560-SM4-003 53560-SM4-004 53560-SM4-J62 53560-SV4-003 53560-SV4-013 53560-SV7-003 53560-SX0-003 53560-SX0-013 53560-SX4-003 GSJ407 |
|
 |
CTE01002R | FRONT AXLE RH (C= M14X1.5) | 53540-S1A-E01 53540-S84-A01 53540-SM4-003 53540-SM4-004 53540-SM4-J62 53540-SV4-003 53540-SV4-013 53540-SV7-003 53540-SX0-003 53540-SX0-013 53540-SX4-003 GSJ408 |
| Model (Year) |
|---|
|
ACCORD V (CE, CF_, CD) |
