1. 首頁
  2. CS09101L
Control Arm

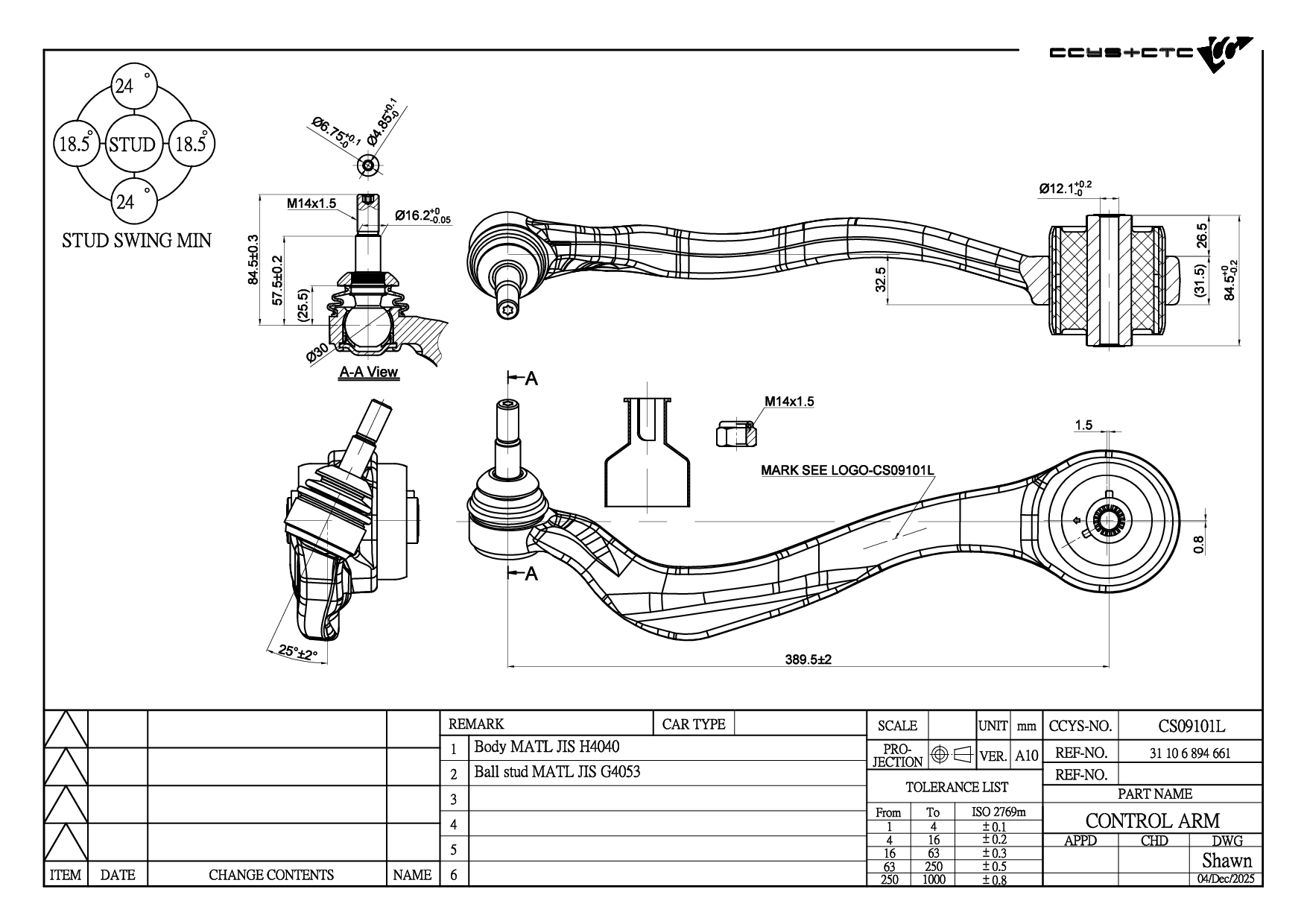

Control Arm / CS09101L

(G20, G80, G28, G21, G81, G23, G83, G22, G82) for vehicles without sports suspension.

Technical Specification Matrix

CS09101L 是 Control Arm 專用的 控制臂 (Lower; Front; Front Axle Left)。 本產品為 OEM 規格替代零件，適配原廠料號 31 10 6 894 661,31 10 6 894 671,31 10 6 894 675,6 894 661。
更多相關商品
PARAMETER METRIC / VALUE
Designation Control Arm
Position Lower; Front; Front Axle Left
OE 替代料號 (Original Equipment Numbers)
  • 31 10 6 894 661
  • 31 10 6 894 671
  • 31 10 6 894 675
  • 6 894 661
Length 463 mm
Width 156 mm
Height 86 mm
Net Weight 2.3 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No. DESIGNATION POSITION OE No.
CBH02097 RUBBER BUSHING REAR AXLE LEFT; REAR AXLE RIGHT; UPPER
  • 33 32 6 881 199
  • 33 32 6 882 668
  • 48790-WAA01
  • 6 881 199
  • 6 882 668
CBH02098 RUBBER BUSHING REAR AXLE LEFT; REAR AXLE RIGHT; UPPER
  • 33 32 6 881 199
  • 33 32 6 882 668
  • 48790-WAA01
  • 6 881 199
  • 6 882 668
CBH09069 RUBBER BUSHING FRONT AXLE LEFT; FRONT AXLE RIGHT
  • 31 10 6 879 849
  • 31 10 6 879 850
  • 31 10 6 880 301
  • 31 10 6 890 905
  • 31 10 6 890 906
  • 31 10 6 894 667
  • 31 10 6 894 668
  • 31 10 8 854 989
  • 31 10 8 854 990
  • 31 10 8 869 737
  • 31 10 8 869 738
  • 6 879 849
  • 6 879 850
  • 6 880 301
  • 6 890 905
  • 6 890 906
  • 6 894 667
  • 6 894 668
  • 8 854 989
  • 8 854 990
  • 8 869 737
  • 8 869 738
CBH09071 RUBBER BUSHING FRONT AXLE; REAR
  • 31 10 6 898 033
  • 6 898 033
CBH09084 RUBBER BUSHING FRONT AXLE LEFT; FRONT AXLE RIGHT; FRONT
  • 31 10 6 894 653
  • 6 894 653
CBH09090
  • 33 30 6 878 639
  • 33 32 6 792 515
  • 33 32 6 792 516
  • 33 32 6 792 525
  • 33 32 6 792 551
  • 33 32 6 797 501
  • 33 32 6 797 502
  • 33 32 6 797 507
  • 33 32 6 797 508
CRE09022 RACK END FRONT AXLE LEFT; FRONT AXLE RIGHT
  • 32 10 6 871 884
  • 32 10 6 871 892
  • 32 10 6 880 695
  • 32 10 6 880 697
  • 6 871 884
  • 6 871 892
  • 6 880 695
  • 6 880 697
CS-291 CONTROL ARM UPPER; REAR; REAR AXLE LEFT; REAR AXLE RIGHT
  • 33 32 6 881 199
  • 48790-WAA01
CS-292 CONTROL ARM REAR AXLE LEFT; REAR AXLE RIGHT; CENTRE
  • 31 10 6 879 659
  • 48705-WAA01
  • 6 879 659
CS-293L CONTROL ARM REAR AXLE LEFT; UPPER; FRONT
  • 33 32 6 878 631
  • 48770-WAA01
CS-293R CONTROL ARM REAR AXLE RIGHT; UPPER; FRONT
  • 33 32 6 878 632
  • 48770-WAA02
CS-294 CONTROL ARM LOWER; FRONT; REAR AXLE LEFT; REAR AXLE RIGHT
  • 33 30 6 878 639
  • 48711-WAA01
CS09100L CONTROL ARM FRONT AXLE LEFT; LOWER; FRONT
  • 31 10 6 879 849
  • 6 879 849
CS09100R CONTROL ARM FRONT AXLE RIGHT; LOWER; FRONT
  • 31 10 6 879 850
  • 6 879 850
CS09101L CONTROL ARM LOWER; FRONT; FRONT AXLE LEFT
  • 31 10 6 894 661
  • 31 10 6 894 671
  • 31 10 6 894 675
  • 6 894 661
CS09101R CONTROL ARM LOWER; FRONT; FRONT AXLE RIGHT
  • 31 10 6 894 662
  • 31 10 6 894 672
  • 31 10 6 894 676
  • 6 894 662
CS09102L CONTROL ARM FRONT AXLE; LEFT; LOWER; REAR
  • 31 10 6 878 593
  • 31 10 6 888 855
  • 31 10 6 898 071
  • 6 878 593
  • 6 888 855
  • 6 898 071
CS09102R CONTROL ARM FRONT AXLE; RIGHT; LOWER; REAR
  • 31 10 6 878 594
  • 31 10 6 888 856
  • 31 10 6 898 072
  • 6 878 594
  • 6 888 856
  • 6 898 072
CSL02083LD1 STABILIZER LINK REAR AXLE LEFT
  • 33 50 6 785 607
  • 6 785 607
CSL02083RD1 STABILIZER LINK REAR AXLE RIGHT
  • 33 50 6 785 608
  • 6 785 608
CSL09032L STABILIZER LINK FRONT AXLE LEFT
  • 31 30 6 870 695
  • 31 30 6 893 359
  • 6 870 695
  • 6 893 359
CSL09032R STABILIZER LINK FRONT AXLE RIGHT
  • 31 30 6 870 696
  • 31 30 6 893 360
  • 6 870 696
  • 6 893 360
CTE09023L TIE ROD END FRONT AXLE LEFT
  • 32 10 6 880 696
CTE09023R TIE ROD END FRONT AXLE RIGHT
  • 32 10 6 880 698
CTE09027L TIE ROD END FRONT AXLE LEFT
  • 32 10 6 871 889
CTE09027R TIE ROD END FRONT AXLE RIGHT
  • 32 10 6 871 893
Model (Year)
3 (G20, G80, G28)
3 Touring (G21, G81)
3 Touring Van (G21)
4 Convertible (G23, G83)
4 Coupe (G22, G82)

常見問題 Q&A

CS09101L 控制臂 是否有保固？

CTE 對 控制臂 提供有限保固，詳細條款請參閱保固聲明頁面。
