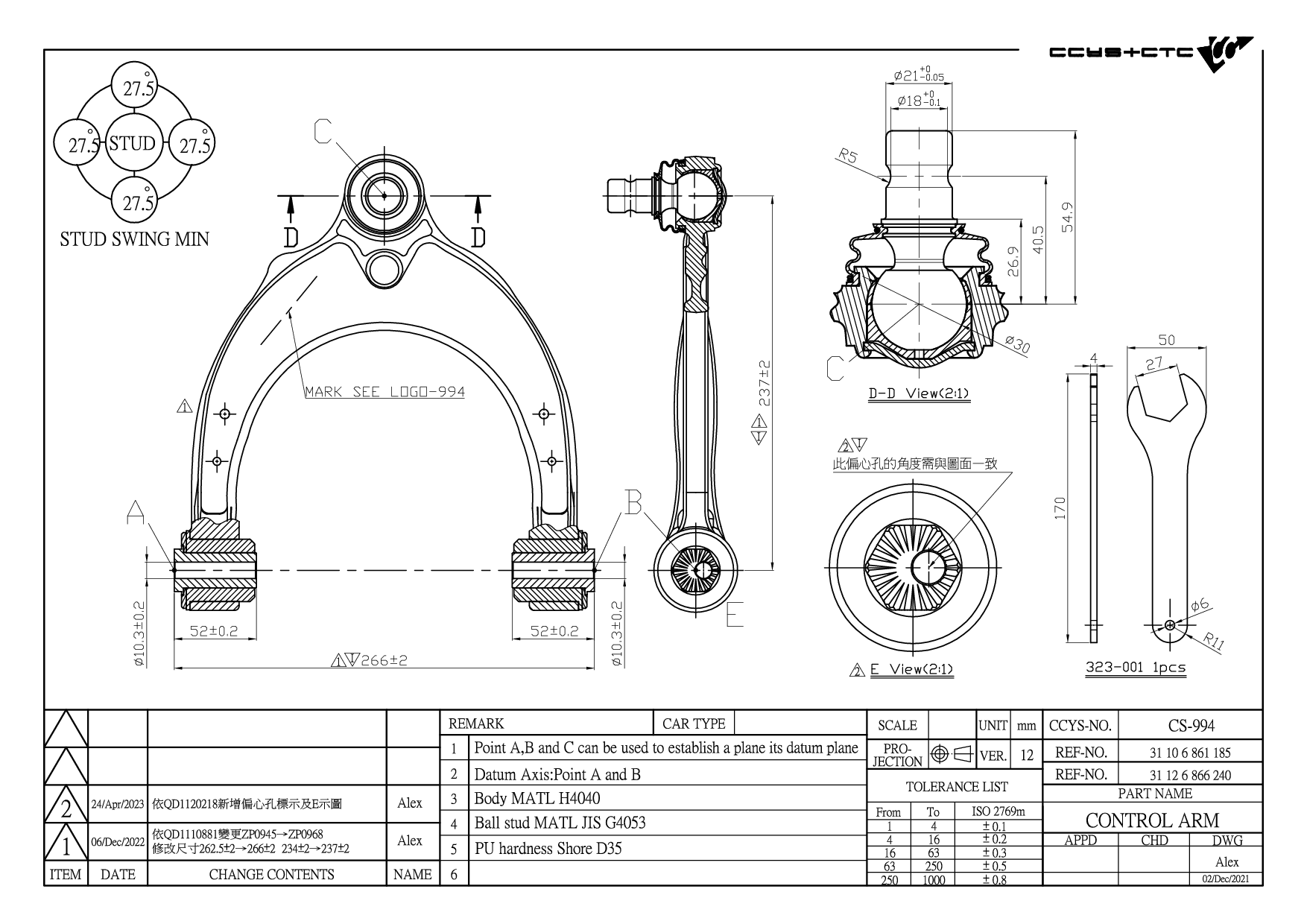

CS-994
| Designation | Control Arm |
| Position | FRONT UPPER LH/RH |
| OE No. | |
| Length | 285 mm |
| Width | 262 mm |
| Height | 75 mm |
| Net Weight | 1.48 kg |
PU BUSHING MODIFIED VER.FOR CS-968
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH09034 | FRONT UPPER ARM INNER | 31 10 6 881 320 31 12 6 775 981 6 775 981 |
|
 |
COS09020 | |||
 |
CS-968 | FRONT UPPER LH/RH | 31 10 6 861 185 31 12 6 866 240 6 861 185 6 866 240 |
|
 |
CS-993 | FRONT UPPER LH/RH | 31 10 6 861 185 31 12 6 866 240 6 861 185 6 866 240 |
|
 |
CS-994 | FRONT UPPER LH/RH | ||
 |
CSL09029 | REAR AXLE LH/RH | 33 50 6 861 482 33 50 6 869 096 6 861 482 6 869 096 |
| Model (Year) |
|---|
|
B5 (G30) B5 Touring (G31) D5 (G30) D5 Touring (G31) |
| Model (Year) |
|---|
|
5 (G30, F90) 5 Touring (G31) 5 Touring Van (G31) 6 Gran Turismo (G32) |
| Model (Year) |
|---|
|
5 SERIES (G38) |
