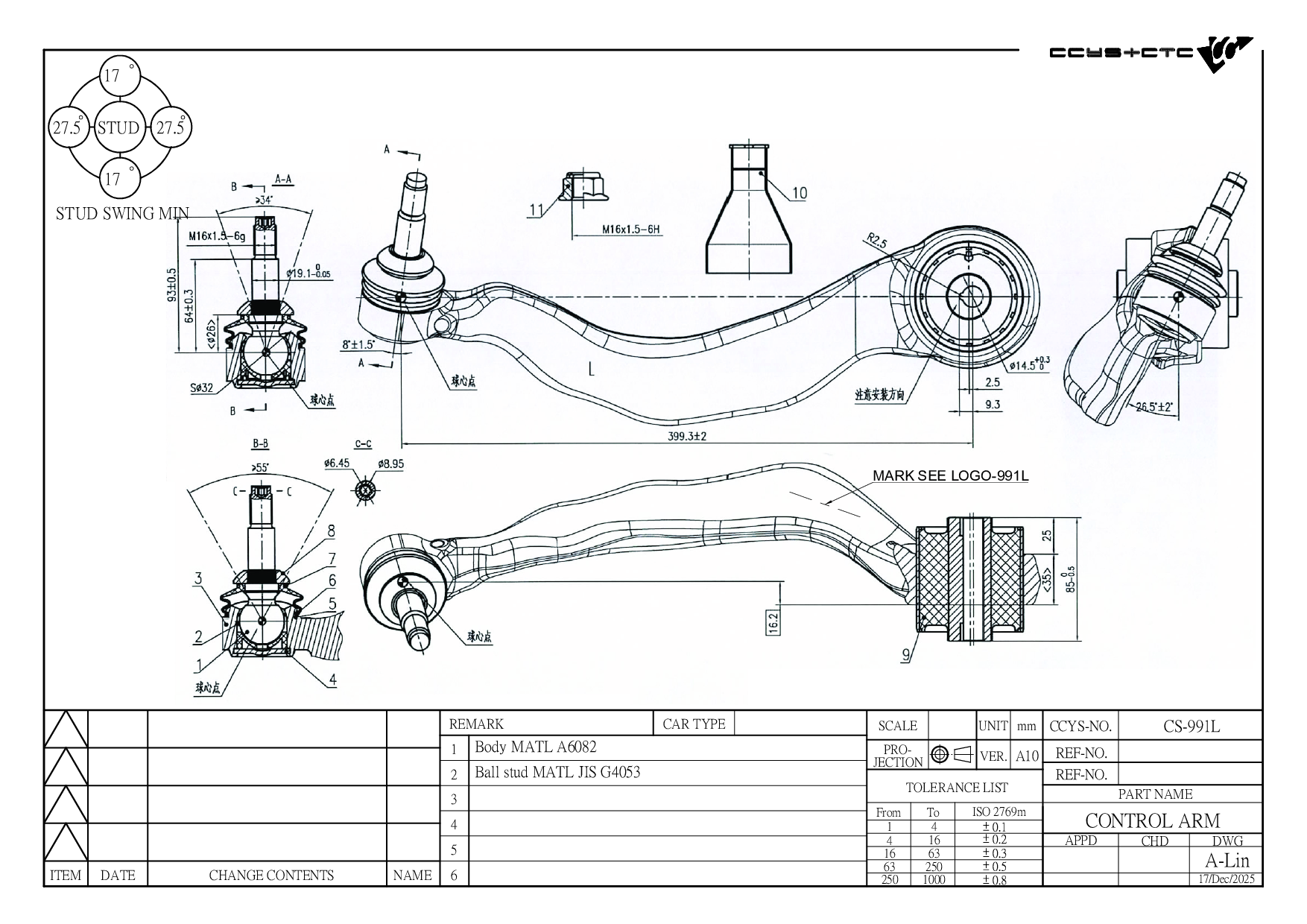

CS-991L

Designation Control Arm
Position FRONT LOWER LH
OE No. 31 10 6 861 157 / 6 861 157
Length 474 mm
Width 177 mm
Height 132 mm
Net Weight 2.57 kg
(G30, F90) (G31) (G32) Construction year to 06.2018
CTE No. DESIGNATION POSITION OE NO.
CBH09034 FRONT UPPER ARM INNER
31 10 6 864 374
31 10 6 868 530
31 10 6 881 320
31 10 6 883 115
31 10 6 883 116
31 12 6 775 981
6 775 981
6 864 374
6 868 530
6 881 320
6 883 115
6 883 116
CBH09067 FRONT LOWER ARM INNER
31 10 6 861 151
31 10 6 861 152
31 10 6 861 155
31 10 6 861 157
31 10 6 861 158
6 861 151
6 861 152
6 861 155
6 861 157
6 861 158
CRE09023 FRONT AXLE LH/ RH
32 10 6 868 688
32 10 6 868 689
32 10 6 869 535
32 10 6 869 537
32 10 6 885 165
32 10 6 885 166
6 868 688
6 868 689
6 869 535
6 869 537
6 885 165
6 885 166
CS-968 FRONT UPPER LH/RH
31 10 6 861 185
31 12 6 866 240
6 861 185
6 866 240
CS-991L FRONT LOWER LH
31 10 6 861 157
6 861 157
CS-991R FRONT LOWER RH
31 10 6 861 158
6 861 158
CS-993 FRONT UPPER LH/RH
31 10 6 861 185
31 12 6 866 240
6 861 185
6 866 240
CS-994 FRONT UPPER LH/RH
CS-998 FRONT UPPER LH/ RH
31 10 6 868 530
6 868 530
CS09107L FRONT LOWER LH
31 10 6 861 173
31 10 8 870 297
6 861 173
8 870 297
CS09107R FRONT LOWER RH
31 10 6 861 174
31 10 8 870 298
6 861 174
8 870 298
CS09140 REAR AXLE LH/ RH
33 32 6 861 125
33 32 6 861 126
CSL09029 REAR AXLE LH/RH
33 50 6 861 482
33 50 6 869 096
6 861 482
6 869 096
Model (Year)
B7 (G12)
B8 GRAN COUPE (G16)
Model (Year)
5 (G30, F90)
5 Touring (G31)
6 Gran Turismo (G32)
7 (G11, G12)
