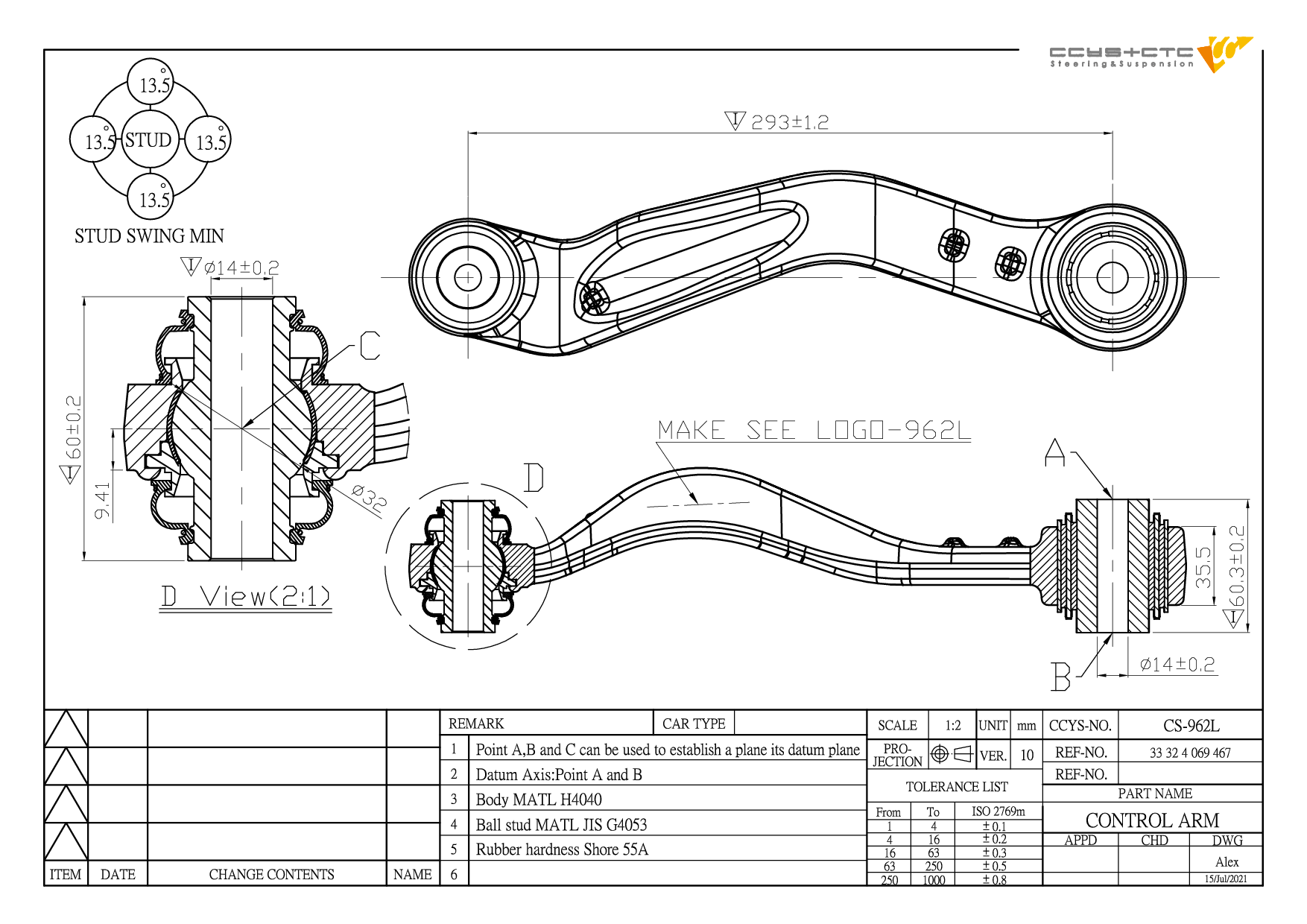

Control Arm//BMW/7 (F01, F02, F03, F04)/GHOST I (RR4)/WRAITH (RR5)

CS-962L

數量
已無庫存。若需選購，請與客服聯繫
Designation Control Arm
Position REAR LOWER LH
OE No. 33 32 4 069 467 / 33 32 6 782 131 / 4 069 467 / 6 782 131
Length 354 mm
Width 85 mm
Height 76 mm
Net Weight 1.25 kg
CTE No. DESIGNATION POSITION OE NO.
CBH09034 FRONT UPPER ARM INNER
31 10 6 881 320
31 12 6 775 981
6 775 981
CBH09036 FRONT LOWER ARM INNER
31 12 6 775 980
31 12 6 791 455
6 775 980
6 791 455
CBH09037 FRONT LOWER ARM OUTER
31 10 6 784 569
31 12 6 784 569
6 784 569
CBH09038 FRONT UPPER ARM INNER
31 12 4 083 313
31 12 6 775 145
4 083 313
6 775 145
CBH09060 REAR UPPER LH/RH
33 32 6 775 902
CBH09062 REAR LOWER LH/RH
CBH09063 REAR LOWER ARM
33 32 6 775 679
6 775 679
COS09007
CRE09009 D= M14X1.5 , C= M18X1.5
32 10 6 784 792
6 784 792
CS-945 FRONT UPPER LH/ RH
2 450 817
31 12 2 450 817
31 12 6 775 967
31 12 6 779 871
31 12 6 779 908
31 12 6 854 613
31 12 6 854 614
31 12 6 857 516
6 775 967
6 779 871
6 779 908
6 854 613
6 854 614
6 857 516
CS-948L FRONT LOWER LH
31 12 4 083 311
31 12 6 775 959
4 083 311
6 775 959
CS-948R FRONT LOWER RH
31 12 4 083 312
31 12 6 775 960
4 083 312
6 775 960
CS-949L FRONT LOWER LH
31 12 6 775 963
31 12 6 798 107
31 12 6 850 781
6 775 963
6 798 107
6 850 781
CS-949R FRONT LOWER RH
31 12 6 775 964
31 12 6 798 108
31 12 6 850 782
6 775 964
6 798 108
6 850 782
CS-960 REAR UPPER LH/RH
33 32 6 775 902
6 775 902
CS-961L REAR LOWER LH
33 32 4 069 283
33 32 6 782 135
4 069 283
6 782 135
CS-961R REAR LOWER RH
33 32 4 069 284
33 32 6 782 136
4 069 284
6 782 136
CS-962L REAR LOWER LH
33 32 4 069 467
33 32 6 782 131
4 069 467
6 782 131
CS-962R REAR LOWER RH
33 32 4 069 468
33 32 6 782 132
4 069 468
6 782 132
CS-978 FRONT UPPER LH/ RH
CS-979 FRONT UPPER LH/ RH
CSL09027 FRONT AXLE LH/RH
31 35 6 777 319
6 777 319
CSR09010L FRONT AXLE LH
32 10 6 784 716
6 784 716
CSR09010R FRONT AXLE RH
32 10 6 784 719
6 784 719
CTE09013L FRONT AXLE LH (C= M14X1.5)
32 10 6 784 790
6 784 790
CTE09013R FRONT AXLE RH (C= M14X1.5)
32 10 6 784 796
6 784 796
Model (Year)
B7 (F01, F02)
Model (Year)
7 (F01, F02, F03, F04)
