Control Arm/ALPINA/BMW/BMW (BRILLIANCE)/3 (E46)/3 Compact (E46)/3 Convertible (E46)/3 Coupe (E46)/3 SERIES (E46)/3 Touring (E46)/B3 (E46)/B3 Convertible (E46)/B3 Coupe (E46)/B3 Touring (E46)/Z4 Coupe (E86)/Z4 Roadster (E85)

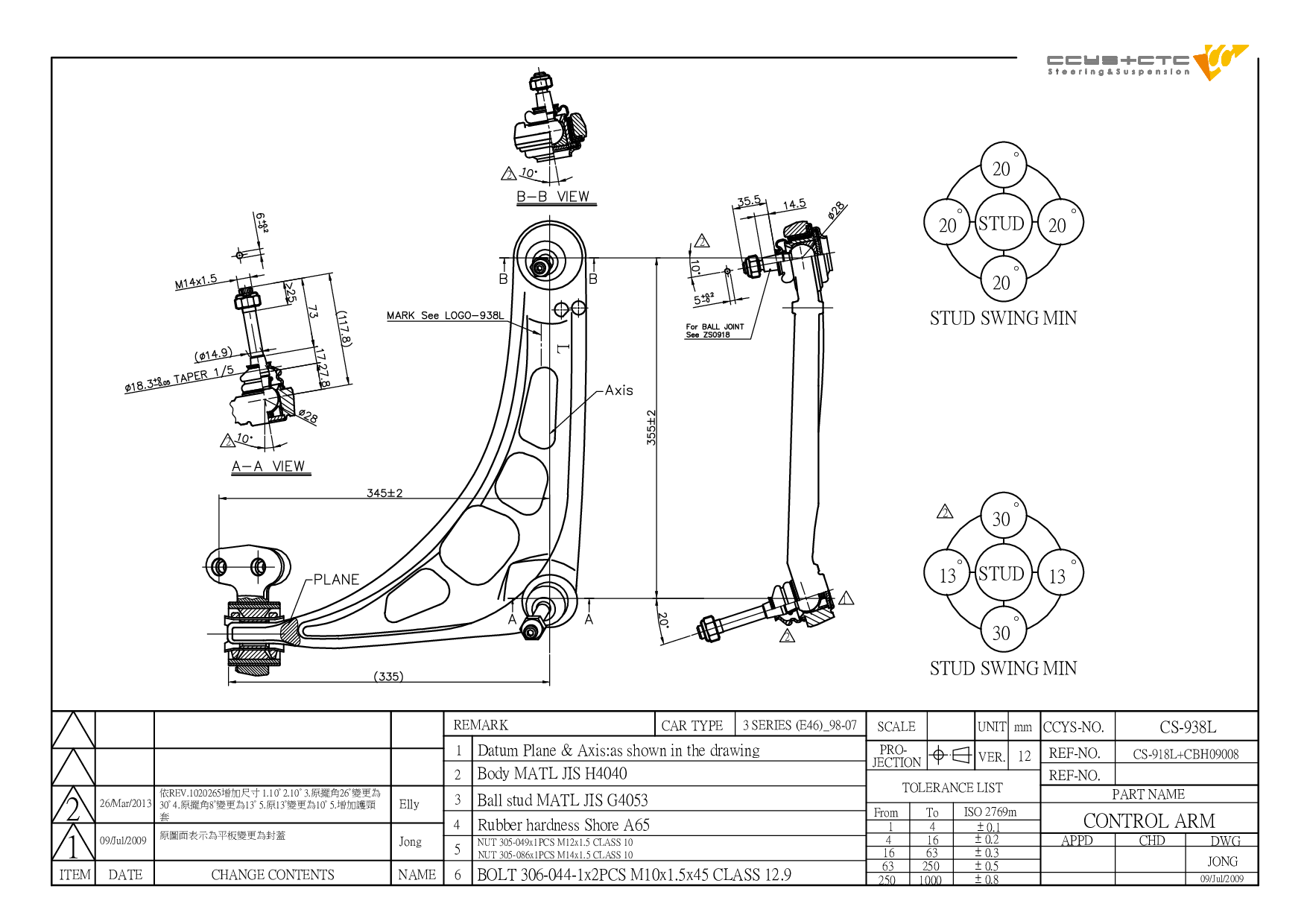

CS-938L

Designation Control Arm
Position FRONT LOWER LH
OE No. 31 12 1 094 465 / 31 12 6 751 317 / 31 12 6 752 717 / 31 12 6 758 519 / 31 12 6 770 247 / 31 12 6 774 819 / 31 12 6 777 851 / CS-918L+CBH09008
Length 396.6 mm
Width 438.4 mm
Height 143 mm
Net Weight 4 kg
CTE No. DESIGNATION POSITION OE NO.
CBJ09003 FRONT LOWER LH/ RH OUTER
1 096 685
1 140 398
31 12 1 096 685
31 12 1 140 398
31 12 6 758 510
6 758 510
CRE09004 D= M14X1.5 , C= M18X1.5
32 10 6 774 222
32 10 6 774 223
32 10 6 777 503
32 10 6 777 504
32 11 1 096 897
32 11 1 096 898
32 21 1 095 955
32 21 1 095 956
32 21 1 096 897
32 21 1 096 898
CS-918L FRONT LOWER LH
31 12 1 094 465
31 12 6 751 317
31 12 6 752 717
31 12 6 758 519
31 12 6 770 247
31 12 6 774 819
31 12 6 777 851
CS-918R FRONT LOWER RH
31 12 1 094 466
31 12 6 751 318
31 12 6 752 718
31 12 6 758 520
31 12 6 770 248
31 12 6 774 820
31 12 6 777 852
CS-938L FRONT LOWER LH
31 12 1 094 465
31 12 6 751 317
31 12 6 752 717
31 12 6 758 519
31 12 6 770 247
31 12 6 774 819
31 12 6 777 851
CS-918L+CBH09008
CS-938R FRONT LOWER RH
31 12 1 094 466
31 12 6 751 318
31 12 6 752 718
31 12 6 758 520
31 12 6 770 248
31 12 6 774 820
31 12 6 777 852
CS-918R+CBH09009
CSL09014 FRONT (A= 270MM)
31 35 1 095 694
31 35 6 780 847
CTE09005L FRONT AXLE LH (C= M14X1.5)
1 095 957
32 10 6 774 220
32 21 1 095 957
6 774 220
CTE09005R FRONT AXLE RH (C= M14X1.5)
1 095 958
32 10 6 774 221
32 21 1 095 958
6 774 221
Model (Year)
B3 (E46)
B3 Convertible (E46)
B3 Coupe (E46)
B3 Touring (E46)
Model (Year)
3 (E46)
3 Compact (E46)
3 Convertible (E46)
3 Coupe (E46)
3 Touring (E46)
Z4 Coupe (E86)
Z4 Roadster (E85)
Model (Year)
3 SERIES (E46)
