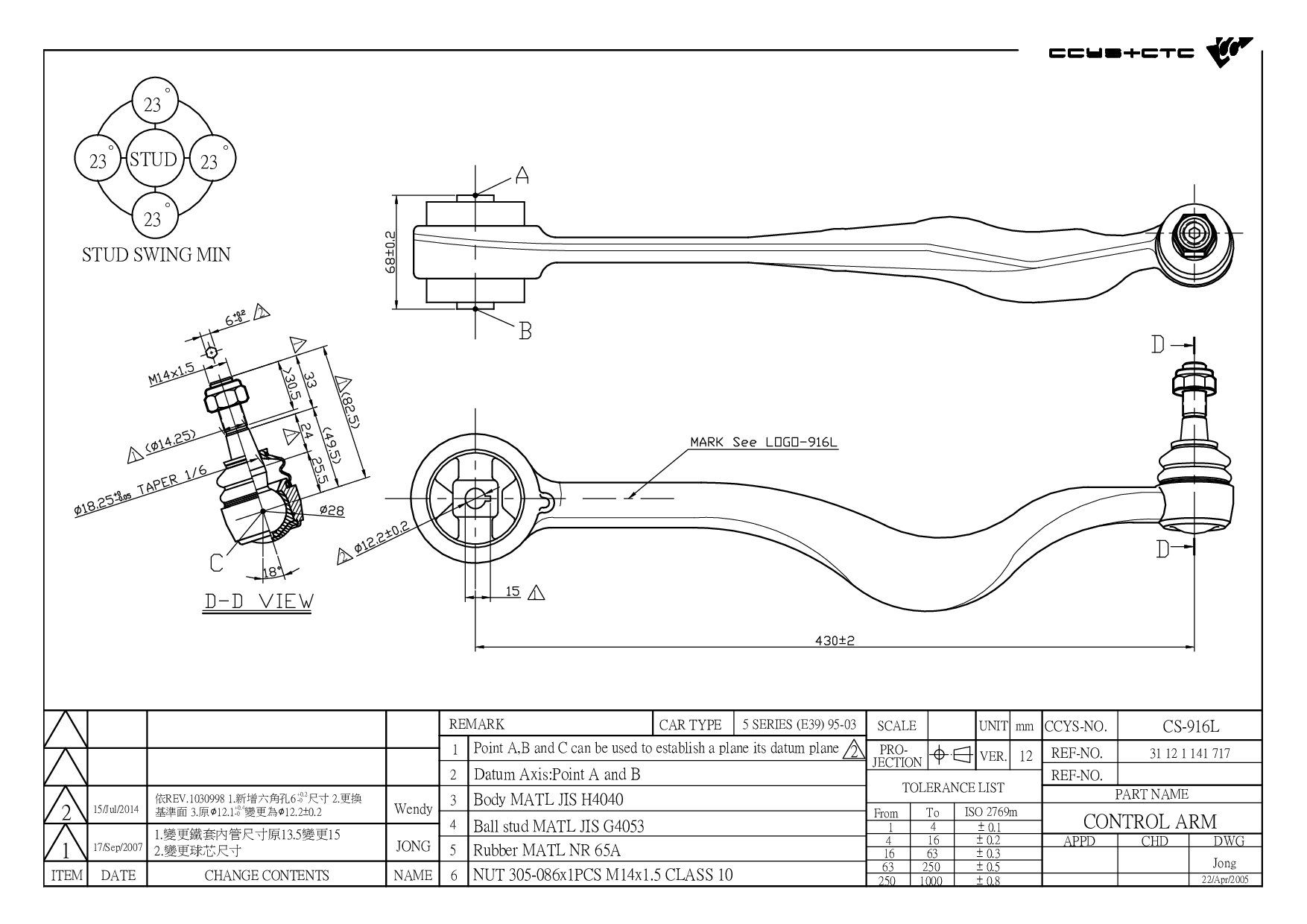

CS-916L
| Designation | Control Arm |
| Position | FRONT UPPER ROD LH |
| OE No. | 1 092 023 / 1 141 717 / 31 12 1 092 023 / 31 12 1 141 717 |
| Length | 490.96 mm |
| Width | 75 mm |
| Height | 148 mm |
| Net Weight | 1.4 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH09005 | FRONT UPPER ARM INNER | 31 12 9 068 753 |
|
 |
CS-916L | FRONT UPPER ROD LH | 1 092 023 1 141 717 31 12 1 092 023 31 12 1 141 717 |
|
 |
CS-916R | FRONT UPPER ROD RH | 1 092 024 1 141 718 31 12 1 092 024 31 12 1 141 718 |
|
 |
CSL09006 | FRONT (A= 303MM) | 1 091 496 1 095 695 31 35 1 091 496 31 35 1 095 695 |
|
 |
CSL09007 | REAR (A= 76.5MM) | 1 091 497 1 095 696 33 55 1 091 497 33 55 1 095 696 |
| Model (Year) |
|---|
|
B10 (E39) B10 Touring (E39) D10 (E39) D10 Touring (E39) |
| Model (Year) |
|---|
|
5 (E39) 5 Touring (E39) Z8 Roadster (E52) |
