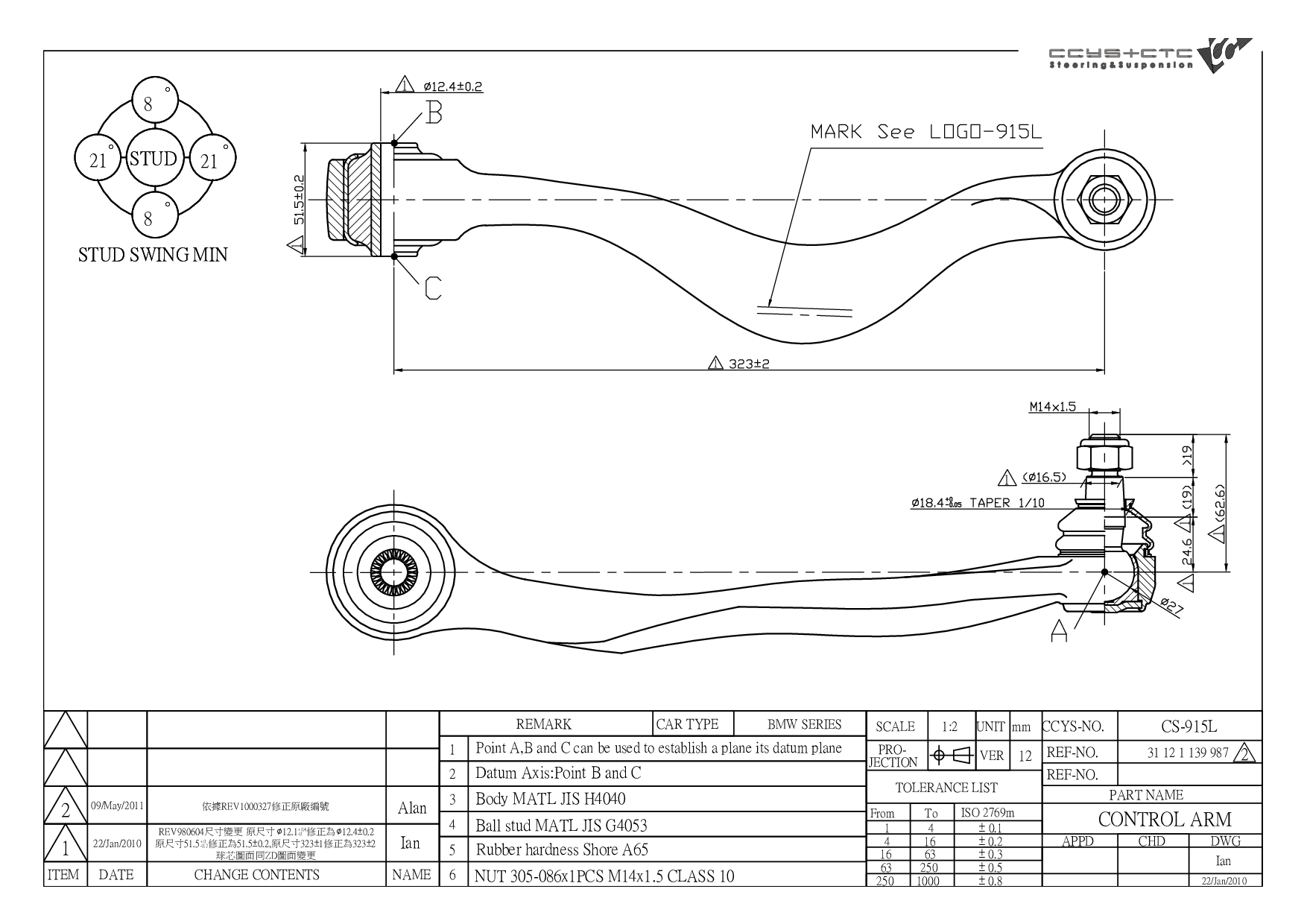

CS-915L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 1 133 237 / 1 139 987 / 31 12 1 133 237 / 31 12 1 139 987 |
| Length | 378 mm |
| Width | 92 mm |
| Height | 100 mm |
| Net Weight | 1.1 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CS-901L | FRONT LOWER LH | 1 124 401 1 131 587 1 139 991 31 12 1 124 401 31 12 1 131 581 31 12 1 131 587 31 12 1 139 587 31 12 1 139 991 |
|
 |
CS-901R | FRONT LOWER RH | 1 124 402 1 131 588 1 139 992 31 12 1 124 402 31 12 1 131 582 31 12 1 131 588 31 12 1 139 588 31 12 1 139 992 |
|
 |
CS-915L | FRONT LOWER LH | 1 133 237 1 139 987 31 12 1 133 237 31 12 1 139 987 |
|
 |
CS-915R | FRONT LOWER RH | 1 133 238 1 139 988 31 12 1 133 238 31 12 1 139 988 |
|
 |
CSL09001 | FRONT (A= 240MM) | 1 124 380 1 127 194 1 128 050 1 130 075 1 134 582 31 35 1 124 380 31 35 1 127 194 31 35 1 128 050 31 35 1 130 075 31 35 1 134 582 |
|
 |
CSL09005 | REAR (A= 60MM) | 1 131 131 1 135 307 33 55 1 131 131 33 55 1 135 307 |
|
 |
CSR09003 | FRONT AXLE LH/ RH | 1 124 231 1 129 020 1 135 666 1 135 668 32 21 1 124 231 32 21 1 129 020 32 21 1 135 666 32 21 1 135 668 |
|
 |
CTE09003L | FRONT AXLE LH/ RH (C= M14X1.5L) OUTER | 1 127 918 1 130 001 1 135 819 1 135 822 31 21 1 127 918 32 21 1 130 001 32 21 1 135 819 32 21 1 135 822 |
|
 |
CTE09003R | FRONT AXLE LH/ RH (C= M14X1.5) INNER | 1 127 917 1 130 004 1 135 820 1 135 824 32 21 1 127 917 32 21 1 130 004 32 21 1 135 820 32 21 1 135 824 |
| Model (Year) |
|---|
|
5 (E28) 5 (E34) 5 Touring (E34) 7 (E32) |
