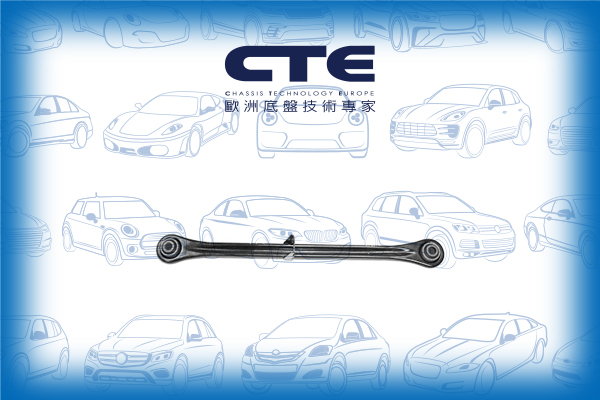

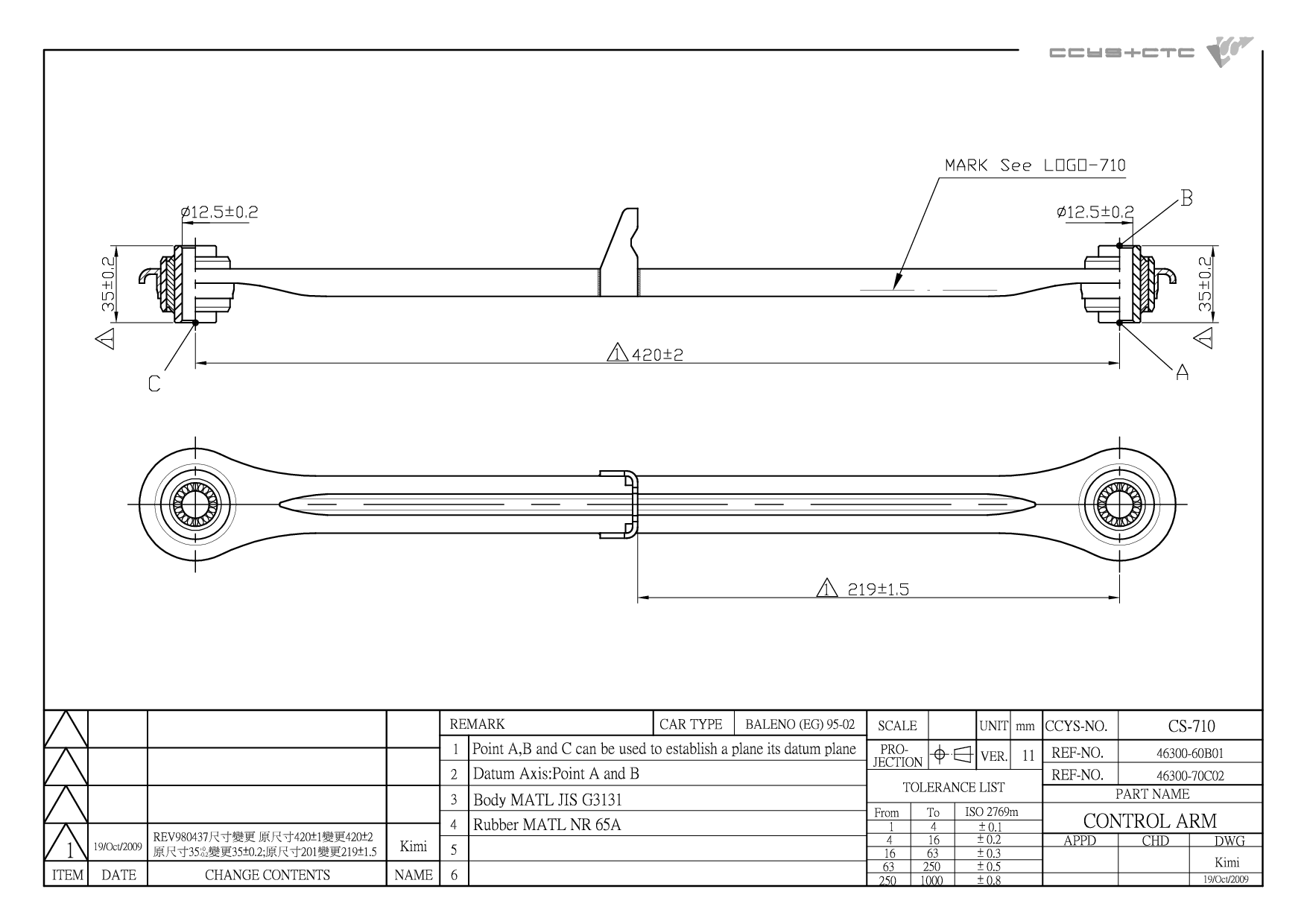

CS-710
| Designation | Control Arm |
| Position | REAR AXLE LINK LH/ RH |
| OE No. | 46300-60B00 / 46300-60B00-000 / 46300-60B01 / 46300-60B01-000 / 46300-60B10 / 46300-60B10-000 / 46300-70C00 / 46300-70C00-000 / 46300-70C01 / 46300-70C01-000 / 46300-70C02 / 46300-70C02-000 |
| Length | 471 mm |
| Width | 51 mm |
| Height | 52 mm |
| Net Weight | 0.6 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

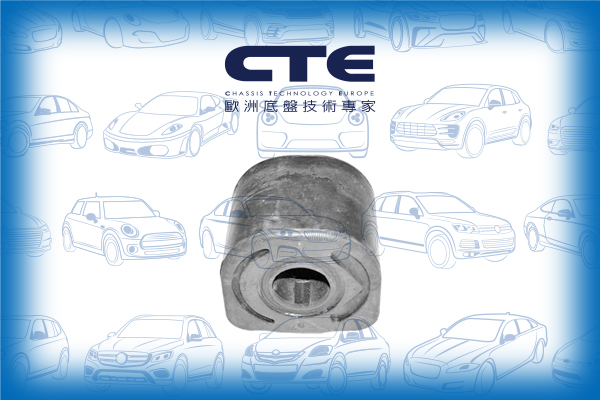

CBH07003 | FRONT LOWER ARM REAR | 45540-60B01 45540-60B01-000 45540-60B02 45540-60B02-000 45540-60E00 45540-60E00-000 |
|
 |

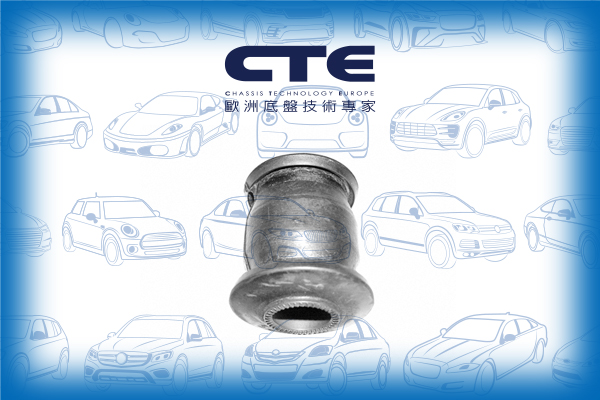

CBH07004 | FRONT LOWER ARM INNER | 45530-50G00 45530-50G00-000 45530-60B00 45530-70C00 |
|
 |

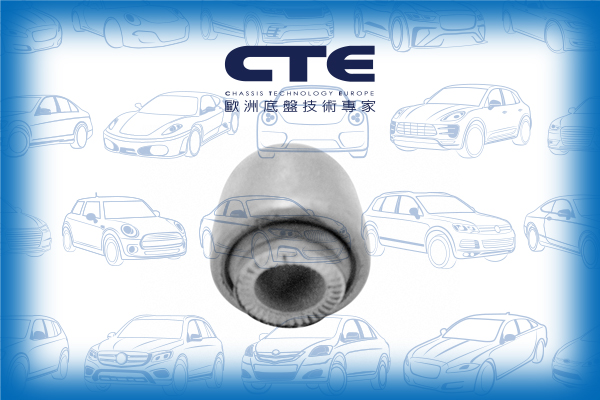

CBH07007 | REAR LINK | 46300-60B00 46300-60B00-000 46300-60B01 46300-60B01-000 46300-60B10 46300-60B10-000 46300-70C00 46300-70C00-000 46300-70C01 46300-70C01-000 46300-70C02 46300-70C02-000 |
|
 |

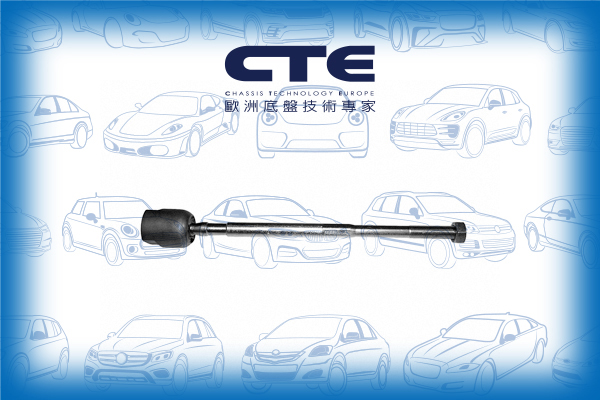

CRE07004 | D= M12X1.25 , C= M14X1.5 | 48830-20B00 48830-60B00 48830-60B00-000 48830-60B20 96060605 |
|
 |
CRE07005 | D= M12X1.25 , C= M17X1.0 | 48830-50G10 48830-60B10 |
|
 |

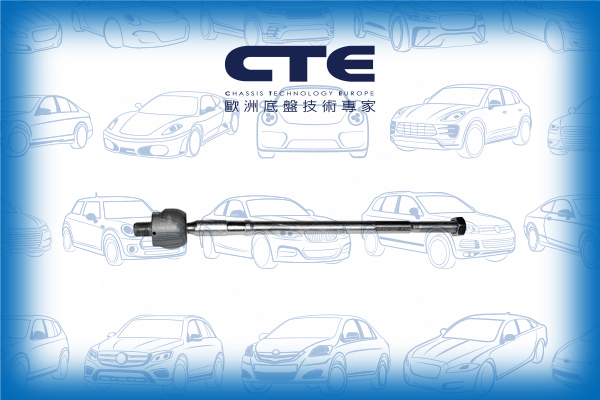

CRE07008 | D= M12X1.25 , C= M14X1.5 | 48830-60G00 48830-60G00A |
|
 |

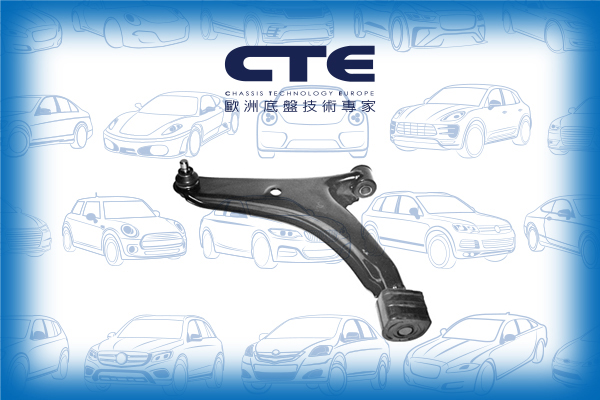

CS-705L | FRONT LOWER LH | 45200-60820 45200-60820-000 45200-60821 45200-60821-000 45200-60822 45200-60822-000 45202-50G10 45202-60B00 45202-60B01 45202-60B01-000 45202-60E00 45202-60E00-000 45202-60E01 45202-60E01-000 45202-70C00 45202-70C00-000 |
|
 |

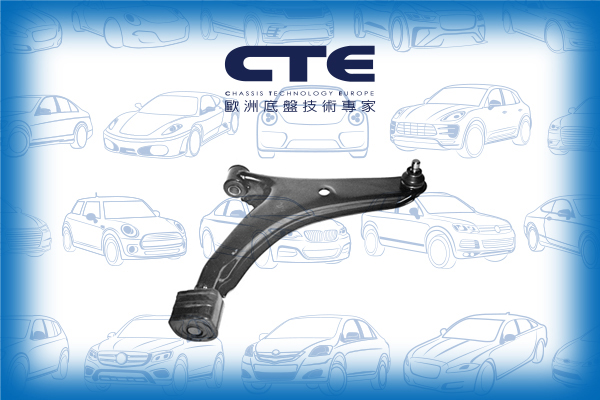

CS-705R | FRONT LOWER RH | 45200-60810 45200-60810-000 45200-60811 45200-60811-000 45200-60812 45200-60812-000 45201-50G10 45201-60B00 45201-60B01 45201-60B01-000 45201-60E00 45201-60E00-000 45201-60E01 45201-60E01-000 45201-70C00 45201-70C00-000 |
|
 |
CS-710 | REAR AXLE LINK LH/ RH | 46300-60B00 46300-60B00-000 46300-60B01 46300-60B01-000 46300-60B10 46300-60B10-000 46300-70C00 46300-70C00-000 46300-70C01 46300-70C01-000 46300-70C02 46300-70C02-000 |
|
 |

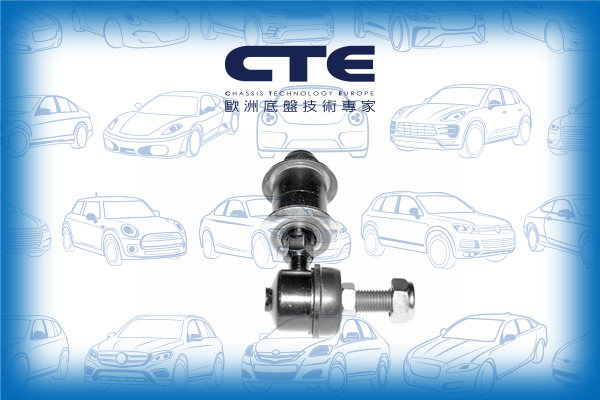

CSL07003 | FRONT (A= 86MM) | 46630-60B00 46630-60B00-000 46630-60B01 46630-60B01-000 46630-60B10 46630-60G00 54618-50A00 |
|
 |
CTE07001 | FRONT AXLE LH/RH (C= M12X1.25) | 1A01-32-280 48520-4A0A0 48810-50G10 48810-50G20 48810-60B00 48810-76G00 48810-82000 91175475 96052290 |
| Model (Year) |
|---|
|
SWIFT II Hatchback (EA, MA) | CULTUS SWIFT II Hatchback (EA, MA) | CULTUS | BALENO SWIFT II Saloon (AH, AJ) |
