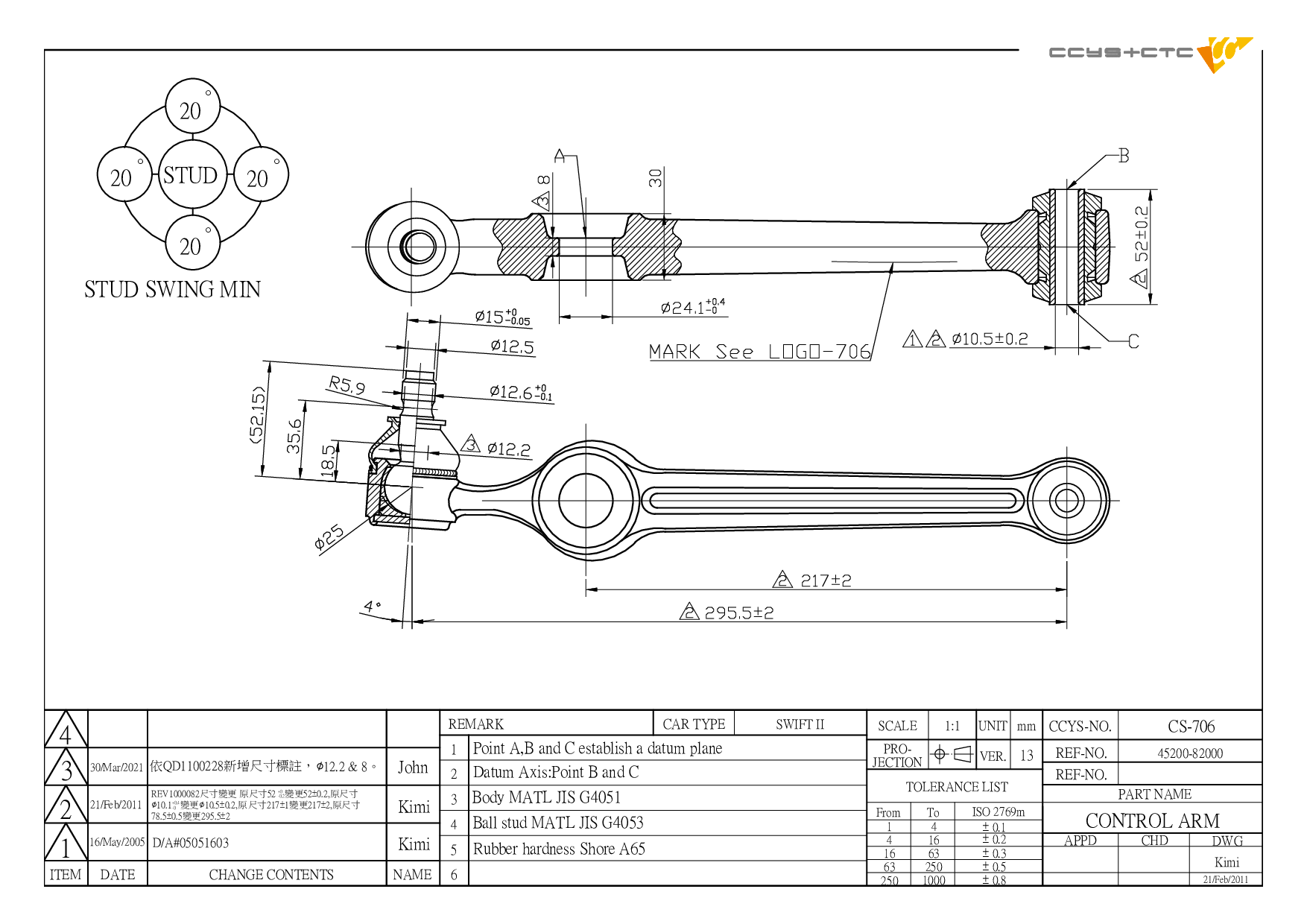

CS-706
| Designation | Control Arm |
| Position | FRONT LOWER LH/ RH |
| OE No. | 45200-82000 |
| Length | 336 mm |
| Width | 86 mm |
| Height | 52 mm |
| Net Weight | 1.5 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

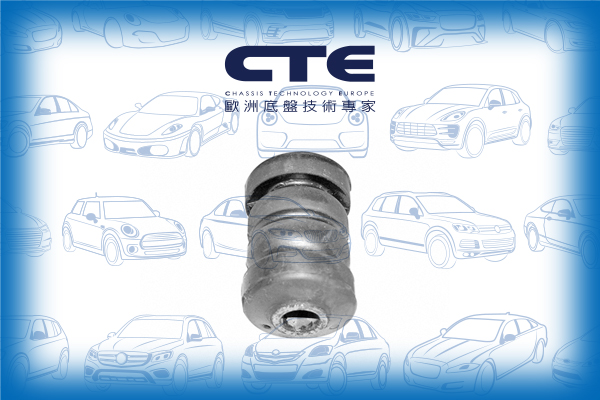

CBH07005 | FRONT LOWER ARM INNER | 45200-82000 |
|
 |

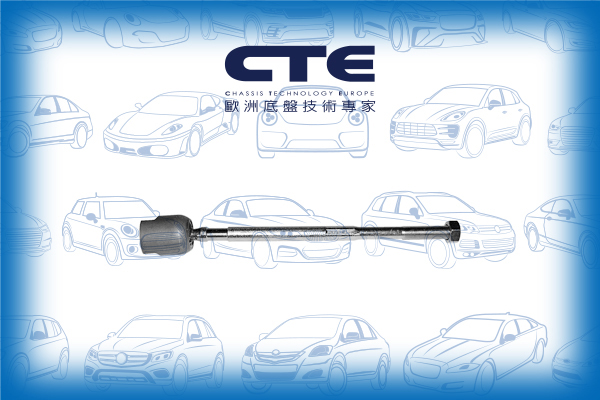

CRE07006 | D= M12X1.25 , C= M14X1.5 | 48830-63B00 48830-63B00-000 48830-82000 48830-82000-000 96052292 |
|
 |

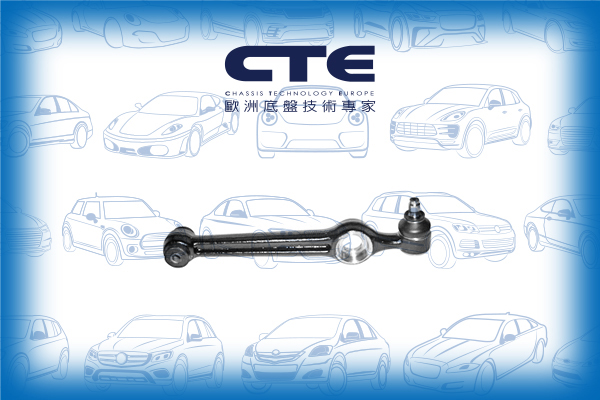

CS-706 | FRONT LOWER LH/ RH | 45200-82000 |
|
 |

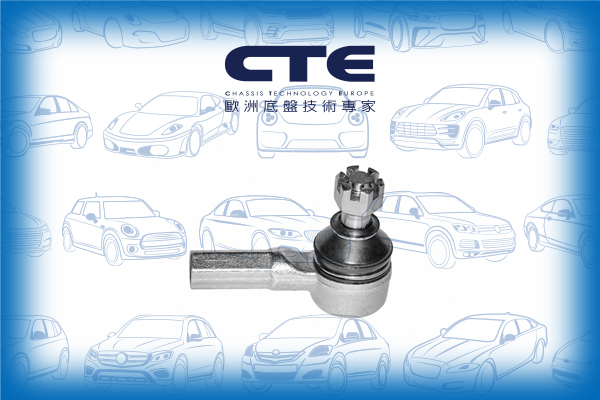

CTE07001 | FRONT AXLE LH/RH (C= M12X1.25) | 1A01-32-280 48520-4A0A0 48810-50G10 48810-50G20 48810-60B00 48810-76G00 48810-82000 91175475 96052290 |
| Model (Year) |
|---|
|
SWIFT I (AA) | SA 310 |
