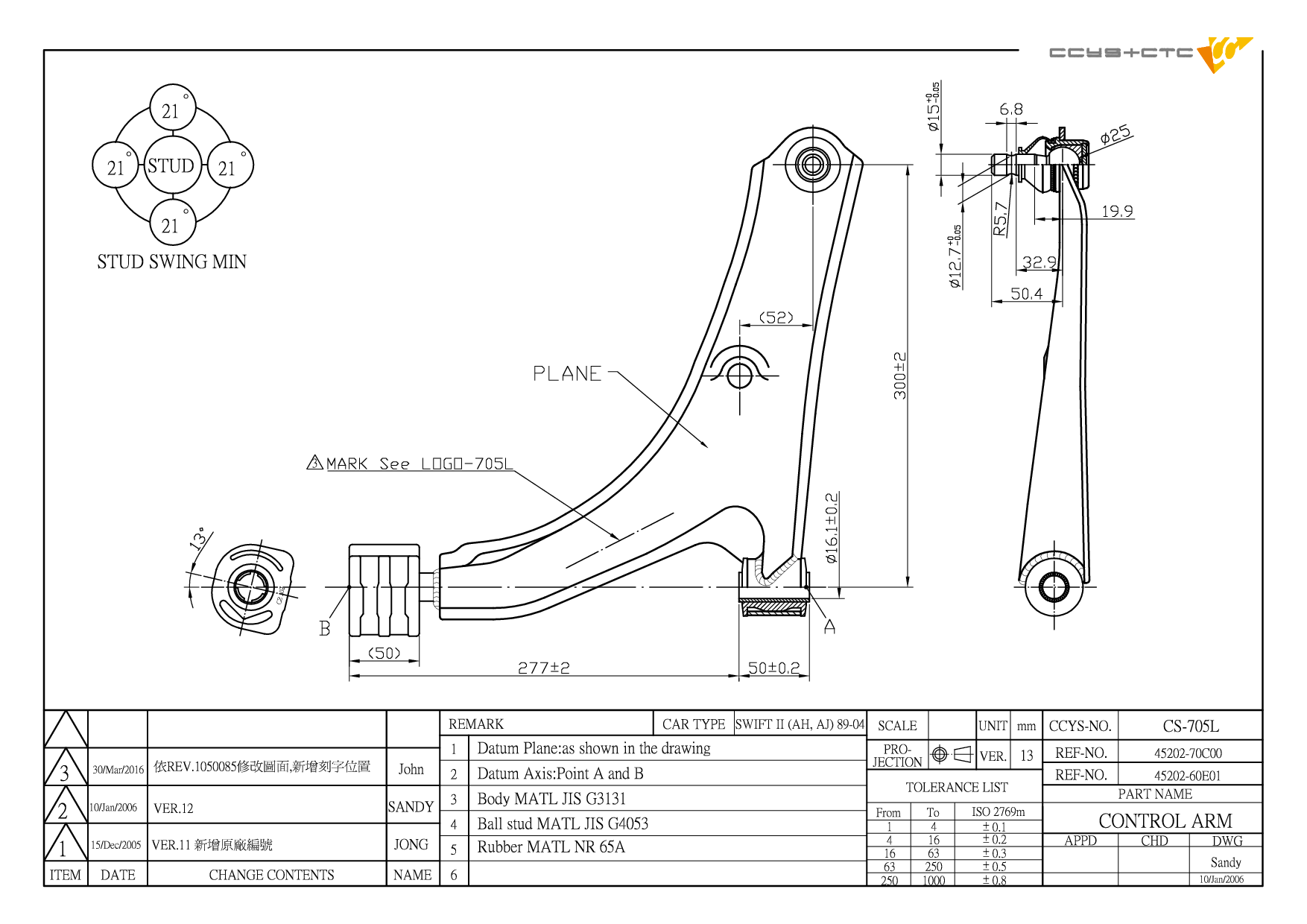

CS-705L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 45200-60820 / 45200-60820-000 / 45200-60821 / 45200-60821-000 / 45200-60822 / 45200-60822-000 / 45202-50G10 / 45202-60B00 / 45202-60B01 / 45202-60B01-000 / 45202-60E00 / 45202-60E00-000 / 45202-60E01 / 45202-60E01-000 / 45202-70C00 / 45202-70C00-000 |
| Length | 365 mm |
| Width | 361 mm |
| Height | 69.3 mm |
| Net Weight | 2.69 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH07003 | FRONT LOWER ARM REAR | 45540-60B01 45540-60B01-000 45540-60B02 45540-60B02-000 45540-60E00 45540-60E00-000 |
|
 |
CRE18005 | D= M12X1.25 , C= M14X1.5 | 7313-10140 |
|
 |
CS-705L | FRONT LOWER LH | 45200-60820 45200-60820-000 45200-60821 45200-60821-000 45200-60822 45200-60822-000 45202-50G10 45202-60B00 45202-60B01 45202-60B01-000 45202-60E00 45202-60E00-000 45202-60E01 45202-60E01-000 45202-70C00 45202-70C00-000 |
|
 |
CS-705R | FRONT LOWER RH | 45200-60810 45200-60810-000 45200-60811 45200-60811-000 45200-60812 45200-60812-000 45201-50G10 45201-60B00 45201-60B01 45201-60B01-000 45201-60E00 45201-60E00-000 45201-60E01 45201-60E01-000 45201-70C00 45201-70C00-000 |
|
 |
CTE07001 | FRONT AXLE LH/RH (C= M12X1.25) | 1A01-32-280 48520-4A0A0 48810-50G10 48810-50G20 48810-60B00 48810-76G00 48810-82000 91175475 96052290 |
| Model (Year) |
|---|
|
JUSTY II (JMA, MS) |
| Model (Year) |
|---|
|
SWIFT Convertible (SF413) SWIFT II Hatchback (EA, MA) | CULTUS | BALENO SWIFT II Saloon (AH, AJ) |
