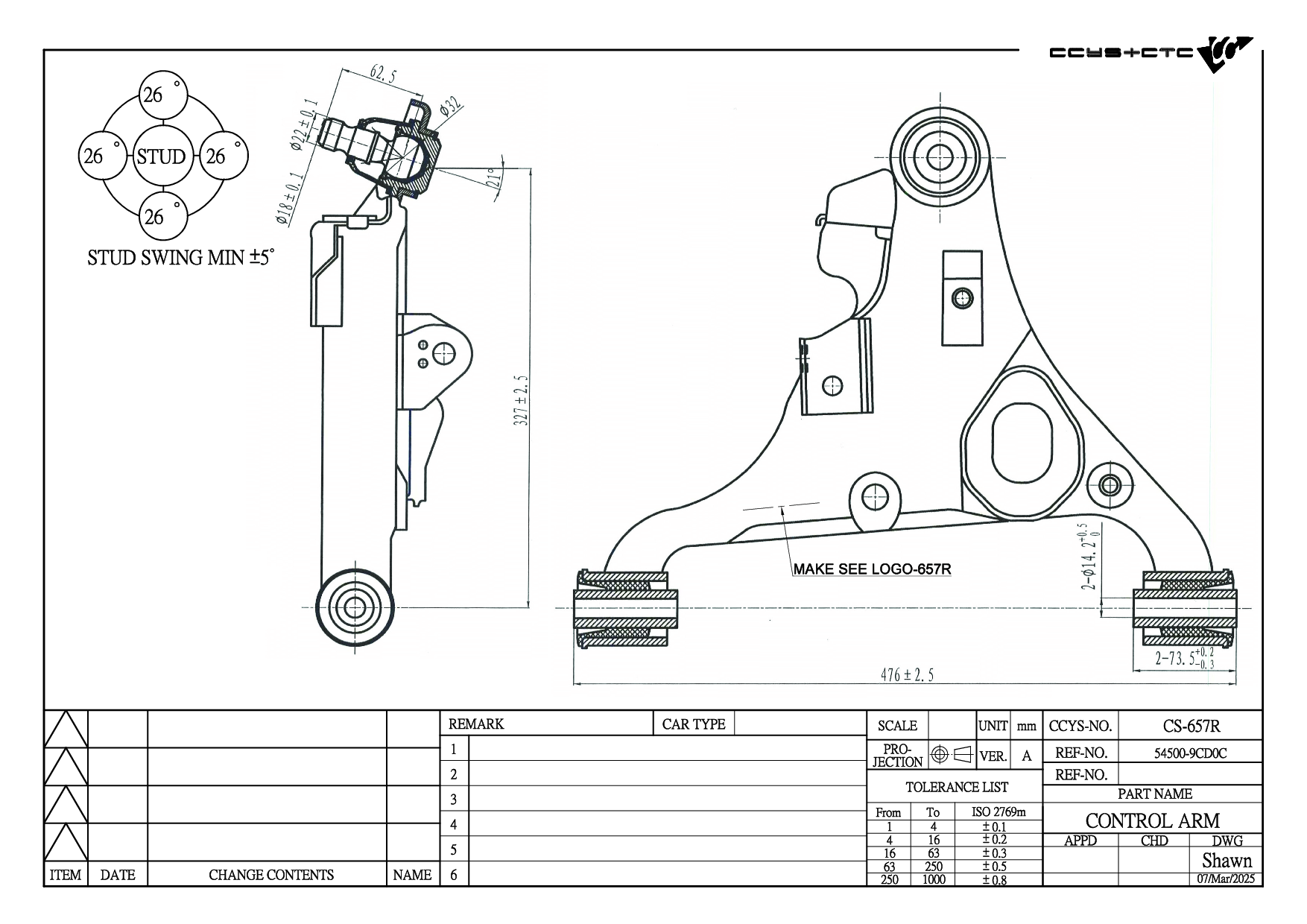

CS-657R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54500-9CD0A / 54500-9CD0B / 54500-9CD0C / 54500-EA000 / 54500-EA00A / 54500-EB300 / 54500-EB30A / 54500-EB30C / 54500-EB31A / 54500-EB31C / 54500-ZG90A / 54500-ZG90B |
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 0 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06072 | FRONT UPPER ARM INNER | 470 330 13 00 470 330 15 00 54524-4KH0A 54524-5XA0A 54524-EA000 54524-EA00A 54524-EB300 54524-EB30A 54524-EB70D 54524-EB72C 54525-4KH0A 54525-5XA0A 54525-EA000 54525-EA00A 54525-EB300 54525-EB30A 54525-EB70D 54525-EB72C A470 330 13 00 A470 330 15 00 |
|
 |
CS-642L | FRONT LOWER LH | 54501-9CD0A 54501-9CD0B 54501-EA000 54501-EA009 54501-EA00A 54501-EB300 54501-EB30A 54501-EB30C 54501-EB31A 54501-EB31C 54501-ZG90A 54501-ZG90B |
|
 |
CS-642R | FRONT LOWER RH | 54500-9CD0A 54500-9CD0B 54500-EA000 54500-EA009 54500-EA00A 54500-EB300 54500-EB30A 54500-EB30C 54500-EB31A 54500-EB31C 54500-ZG90A 54500-ZG90B |
|
|
CS-656L | FRONT UPPER LH | 470 330 15 00 54525-4KH0A 54525-5XA0A 54525-EA000 54525-EA00A 54525-EB300 54525-EB30A 54525-EB70D 54525-EB72C A470 330 15 00 |
|
|
CS-656R | FRONT UPPER RH | 470 330 13 00 54524-4KH0A 54524-5XA0A 54524-EA000 54524-EA00A 54524-EB300 54524-EB30A 54524-EB70D 54524-EB72C A470 330 13 00 |
|
|
CS-657L | FRONT LOWER LH | 54501-9CD0A 54501-9CD0B 54501-EA000 54501-EA009 54501-EA00A 54501-EB300 54501-EB30A 54501-EB30C 54501-EB31A 54501-EB31C 54501-ZG90A 54501-ZG90B |
|
|
CS-657R | FRONT LOWER RH | 54500-9CD0A 54500-9CD0B 54500-9CD0C 54500-EA000 54500-EA00A 54500-EB300 54500-EB30A 54500-EB30C 54500-EB31A 54500-EB31C 54500-ZG90A 54500-ZG90B |
| Model (Year) |
|---|
|
PATHFINDER III (R51) |
