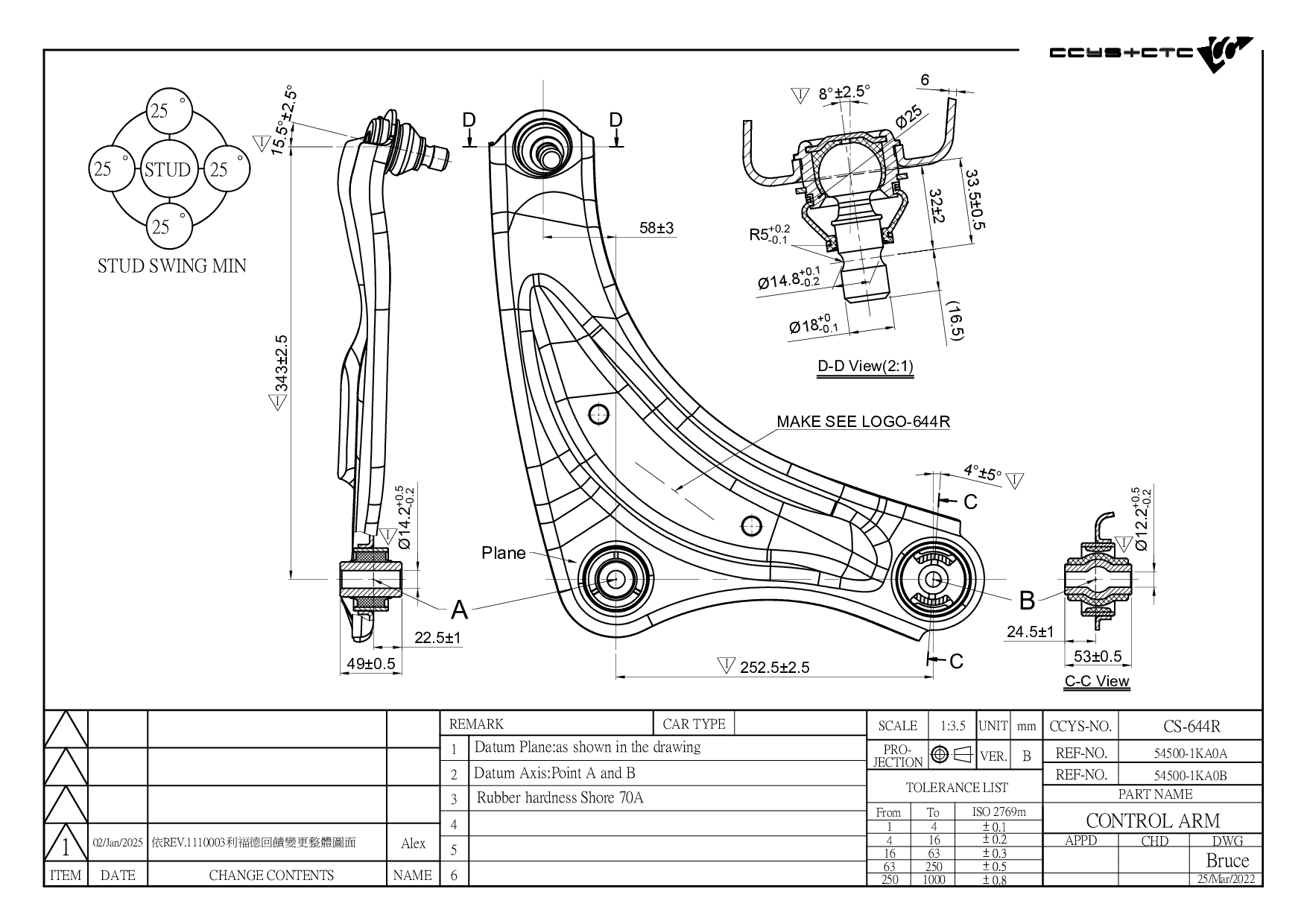

CS-644R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 54500-1KA0A / 54500-1KA0B / 54500-1KA1B / 54500-1KK0A / 54500-1KK0B / 54500-3NF0A / 54500-3YW0A / 54500-4DA0A / 54500-4FU0A / 54500-5SN1A / 54500-BA60A / 54500-BX80A |
| Length | 422 mm |
| Width | 394 mm |
| Height | 88 mm |
| Net Weight | 2.91 kg |
(JF15) Construction year to 11.2018
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06052 | FRONT LOWER ARM REAR | 54570-BB00A |
|
 |
CBH06053 | FRONT LOWER ARM INNER | 54500-JG0002 54501-JG0002 |
|
 |
CBH06066 | FRONT LOWER ARM INNER | ||
 |
CBJ06023 | FRONT LOWER LH/ RH | 1N12-34-300 1N12-34-350 1N13-34-300 1N13-34-350 1N14-34-300 1N14-34-350 1N15-34-300 1N15-34-350 1N16-34-300 1N16-34-350 40160-ED000 40160-ED00A 54500-1FU0A 54500-1FU0B 54500-1JY0A 54500-1KA0A 54500-1KA0B 54500-1KA1B 54500-1KK0A 54500-1KK0B 54500-5SN1A 545 |
|
 |
CS-644L | FRONT LOWER LH | 54501-1KA0A 54501-1KA0B 54501-1KA1B 54501-1KK0A 54501-1KK0B 54501-3NF0A 54501-3YW0A 54501-4DA0A 54501-4FU0A 54501-5SN1A 54501-BA60A 54501-BX80A |
|
 |
CS-644R | FRONT LOWER RH | 54500-1KA0A 54500-1KA0B 54500-1KA1B 54500-1KK0A 54500-1KK0B 54500-3NF0A 54500-3YW0A 54500-4DA0A 54500-4FU0A 54500-5SN1A 54500-BA60A 54500-BX80A |
|
 |
CS-648L | FRONT LOWER LH | 42330-51Z10 45202-50Z00 54501-5TA0A 54501-EN001 54501-EN00B |
|
 |
CS-648R | FRONT LOWER RH | 42320-51Z01 45201-50Z00 54500-5TA0A 54500-EN001 54500-EN00B |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
| Model (Year) |
|---|
|
ESQ (JF15) |
| Model (Year) |
|---|
|
JUKE (F15) JUKE Van (F15) LEAF (ZE0) LEAF (ZE1) PULSAR Hatchback (C13) | SYLPHY | TIIDA |
