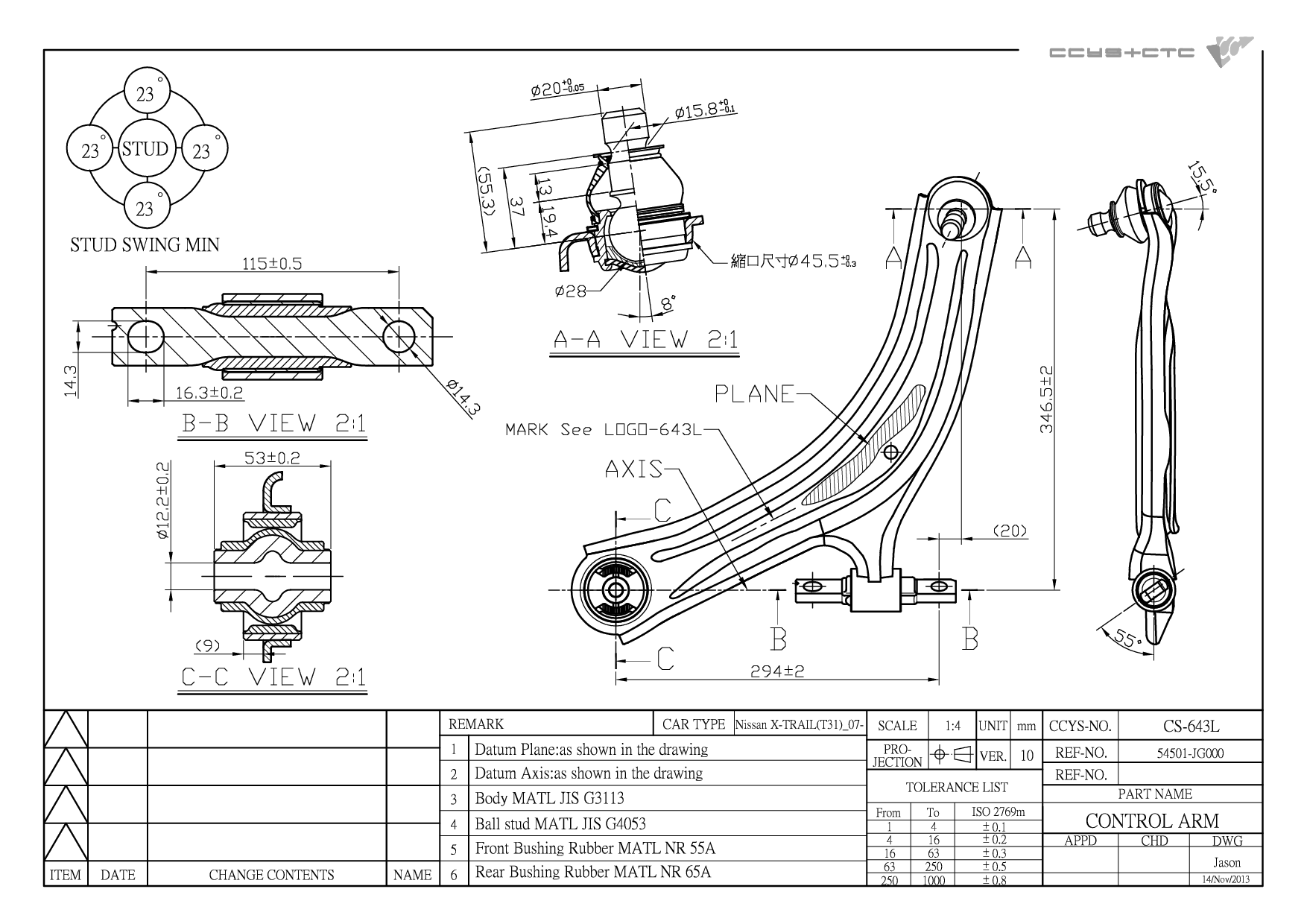

CS-643L
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE No. | 54 50 552 12R / 54501-BB00A / 54501-BR30A / 54501-JD000 / 54501-JE20A / 54501-JG000 / 54501-JG00A / 54501-JG00B / 54501-JY00A |
| Length | 392 mm |
| Width | 423 mm |
| Height | 85 mm |
| Net Weight | 3.15 kg |
NISSAN X-TRAIL II (T31) from model code T31N construction year from 06.2008
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH06052 | FRONT LOWER ARM REAR | 54570-BB00A |
|
 |
CBH06053 | FRONT LOWER ARM INNER | 54500-JG0002 54501-JG0002 |
|
 |
CS-643L | FRONT LOWER LH | 54 50 552 12R 54501-BB00A 54501-BR30A 54501-JD000 54501-JE20A 54501-JG000 54501-JG00A 54501-JG00B 54501-JY00A |
|
 |
CS-643R | FRONT LOWER RH | 54 50 404 45R 54500-BB00A 54500-BR30A 54500-JD000 54500-JE20A 54500-JG000 54500-JG00A 54500-JG00B 54500-JY00A |
| Model (Year) |
|---|
|
QASHQAI I (J10, NJ10) | DUALIS QASHQAI I VAN (J10) X-TRAIL II (T31) X-TRAIL VAN (T31) |
| Model (Year) |
|---|
|
QASHQAI (J10) X-TRAIL (T31) |
| Model (Year) |
|---|
|
KOLEOS I (HY_) KOLEOS II (HC_) |
