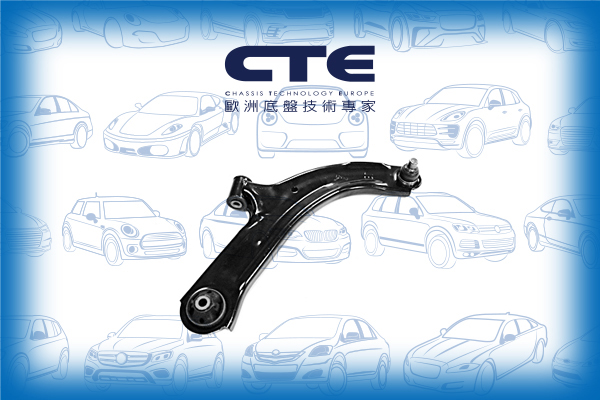

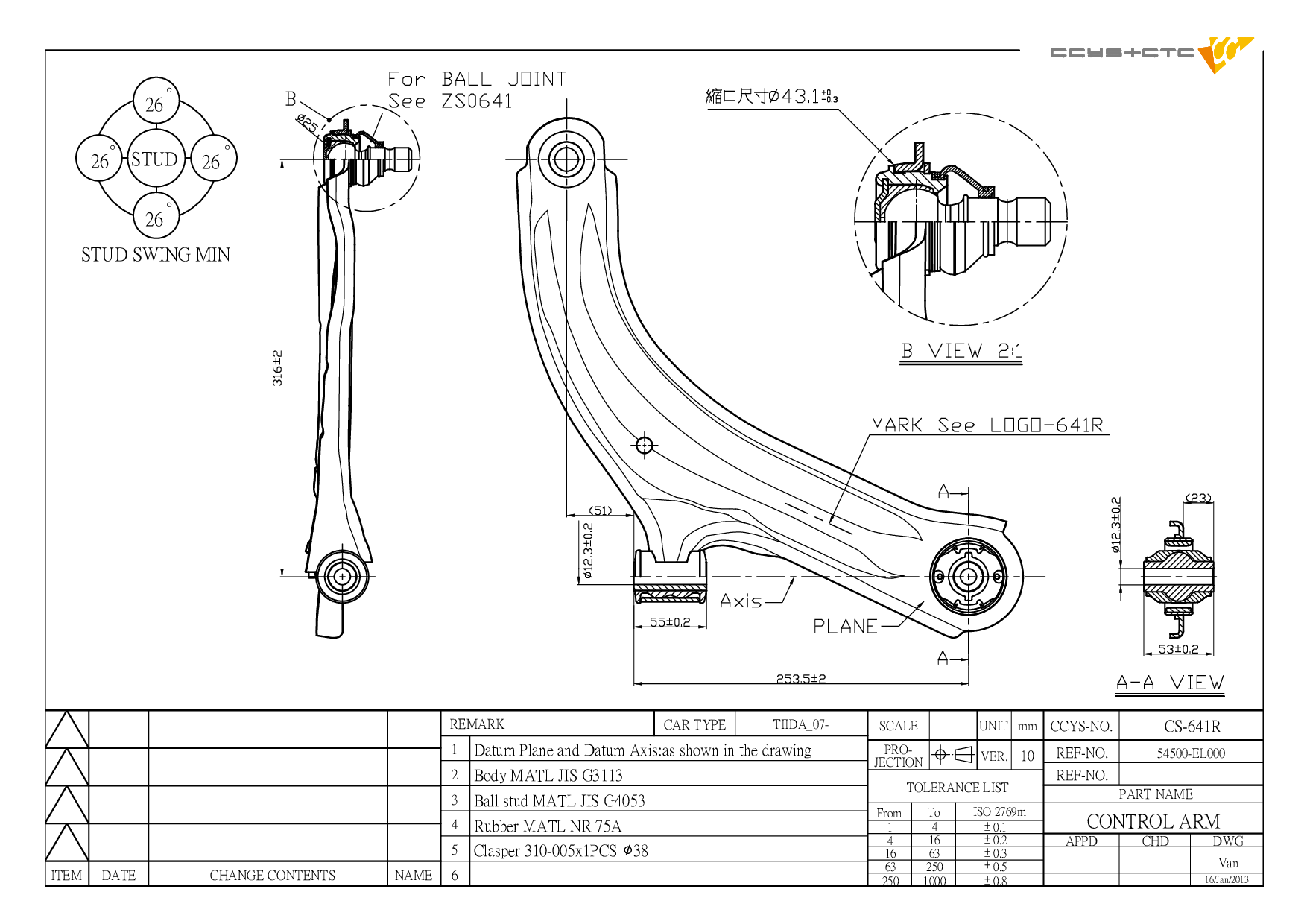

CS-641R
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE No. | 1N12-34-300 / 1N13-34-300 / 1N14-34-300 / 1N15-34-300 / 1N16-34-300 / 54500-1FU0A / 54500-1FU0B / 54500-1JY0A / 54500-ED00A / 54500-EL000 / 54500-EL00A / 54500-EL00D / 54500-ET000 / 54500-EW000 / 54500-JX31A / 54500-JX31B / MQ702523 / MQ703552 / MQ704127 / MQ711149 / MQ711565 |
| Length | 394 mm |
| Width | 384 mm |
| Height | 81 mm |
| Net Weight | 2.44 kg |
(G11,G11TW) fr.02.2006;Z12fr.07.2011; (M20N,M20K,M20NN) fr.08.2012; (M20K) ;C11fr.04.2006; (L10S,L11W,L11WW) fr.10.2007,06.2013; (C11,C11S,C11X,SC11S,SC11X) fr.08.2005;L10S fr.10.2007,06.2013; (L11W, L11WW) fr.11.2014.yearto01.2012; (L10,L11) yearto01.2012codeMR18DE
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

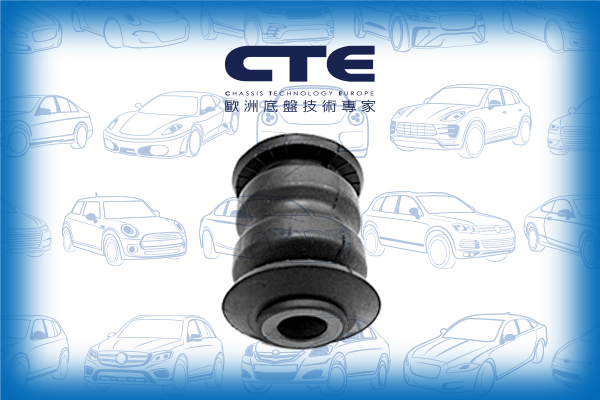

CBH06049 | FRONT LOWER ARM INNER | 54560-AX600 82 00 183 569 850040613 |
|
 |

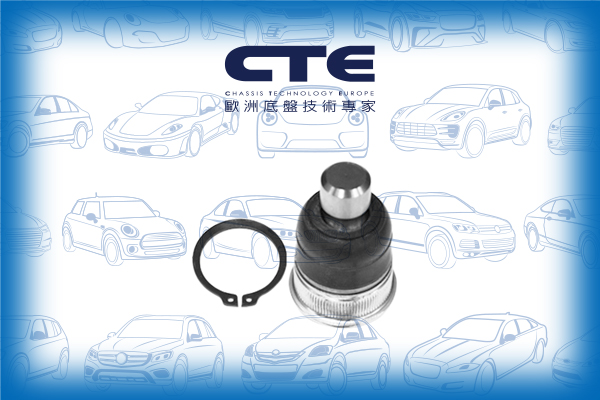

CBJ06023 | FRONT LOWER LH/ RH | 1N12-34-300 1N12-34-350 1N13-34-300 1N13-34-350 1N14-34-300 1N14-34-350 1N15-34-300 1N15-34-350 1N16-34-300 1N16-34-350 40160-ED000 40160-ED00A 54500-1FU0A 54500-1FU0B 54500-1JY0A 54500-1KA0A 54500-1KA0B 54500-1KA1B 54500-1KK0A 54500-1KK0B 54500-5SN1A 545 |
|
 |

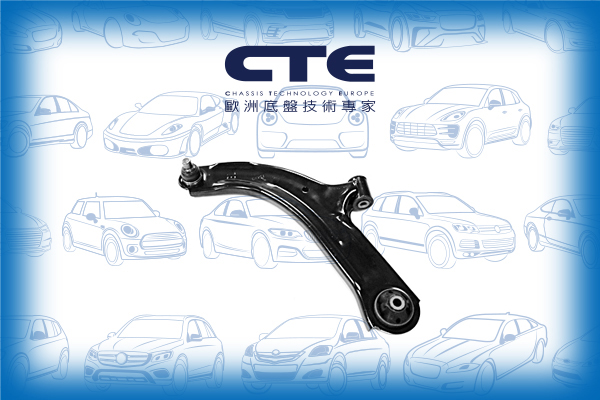

CS-641L | FRONT LOWER LH | 1N12-34-350 1N13-34-350 1N14-34-350 1N15-34-350 1N16-34-350 54501-1FU0A 54501-1FU0B 54501-1JY0A 54501-ED00A 54501-EL000 54501-EL00A 54501-EL00D 54501-ET000 54501-EW000 54501-JX31A 54501-JX31B MQ702524 MQ703553 MQ704128 MQ711150 MQ711566 |
|
 |
CS-641R | FRONT LOWER RH | 1N12-34-300 1N13-34-300 1N14-34-300 1N15-34-300 1N16-34-300 54500-1FU0A 54500-1FU0B 54500-1JY0A 54500-ED00A 54500-EL000 54500-EL00A 54500-EL00D 54500-ET000 54500-EW000 54500-JX31A 54500-JX31B MQ702523 MQ703552 MQ704127 MQ711149 MQ711565 |
|
 |
CSL02056 | FRONT (A= 285MM) | 1064000097 20984481 48820-02030 48820-02040 48820-02050 48820-02100 48820-47010 48820-58010 54618-BA60A 54618-BA60B 54618-CY00A 54618-EN000 54830-0U000 54830-2V000 54830-4L000 54830-A6000 88970146 |
|
 |
CSL06067 | FRONT LH/RH | 54618-1FE0A 54618-3U800 54618-3U801 54618-9U00A 54618-AX401 54618-ED000 54618-ED00A 54618-JX00A MQ702536 MQ704130 |
|
 |
CSL06068 | FRONT LH/RH | 54618-1FE0A 54618-3U800 54618-3U801 54618-9U00A 54618-AX401 54618-ED000 54618-ED00A 54618-JX00A MQ702536 MQ704130 |
|
 |

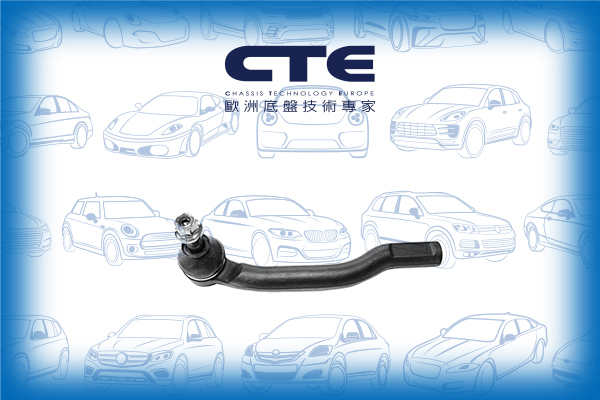

CTE06007L | FRONT AXLE LH (C= M12X1.25) | 48520-3U025 48527-1U61A D8520-EW00A MQ700059 |
|
 |

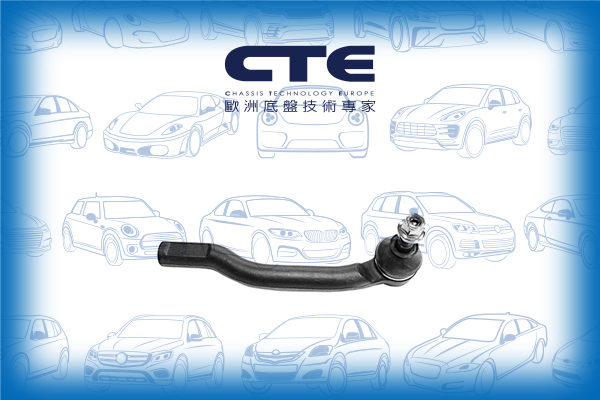

CTE06007R | FRONT AXLE RH (C= M12X1.25) | 48640-3U025 48647-1U61A D8640-EW00A MQ700060 |
| Model (Year) |
|---|
|
AD Van (Y12) BLUEBIRD SYLPHY II (G11) | ALMERA CUBE (Z11) CUBE (Z12) JUKE (F15) LATIO Saloon (C11) LIVINA / GRAND LIVINA (L10, L11) LIVINA / GRAND LIVINA (L10, L11) | LIVINA / GRAND LIVINA / X-GEAR | LIVINA / GRAND LIVINA / LIVINA X-GEAR NV200 / EVALIA Bus NV200 Van SENTRA VI (B16) TIIDA Hatchback (C11) TIIDA Hatchback (C11) | LATIO | VERSA TIIDA Saloon (SC11) TIIDA Saloon (SC11) | LATIO | TIIDA LATIO TIIDA Saloon (SC12) | LATIO | TIIDA LATIO VERSA I WINGROAD / AD Wagon (_Y12) |
| Model (Year) |
|---|
|
BLUEBIRD SYLPHY / SYLPHY CLASSIC (G11) GENISS / LIVINA GENISS MPV (L10_) LIVINA C-GEAR (NL10Z) LIVINA MPV (L10_) LIVINA MPV (L11Z) TIIDA Hatchback (C11) TIIDA Saloon (C11) |
